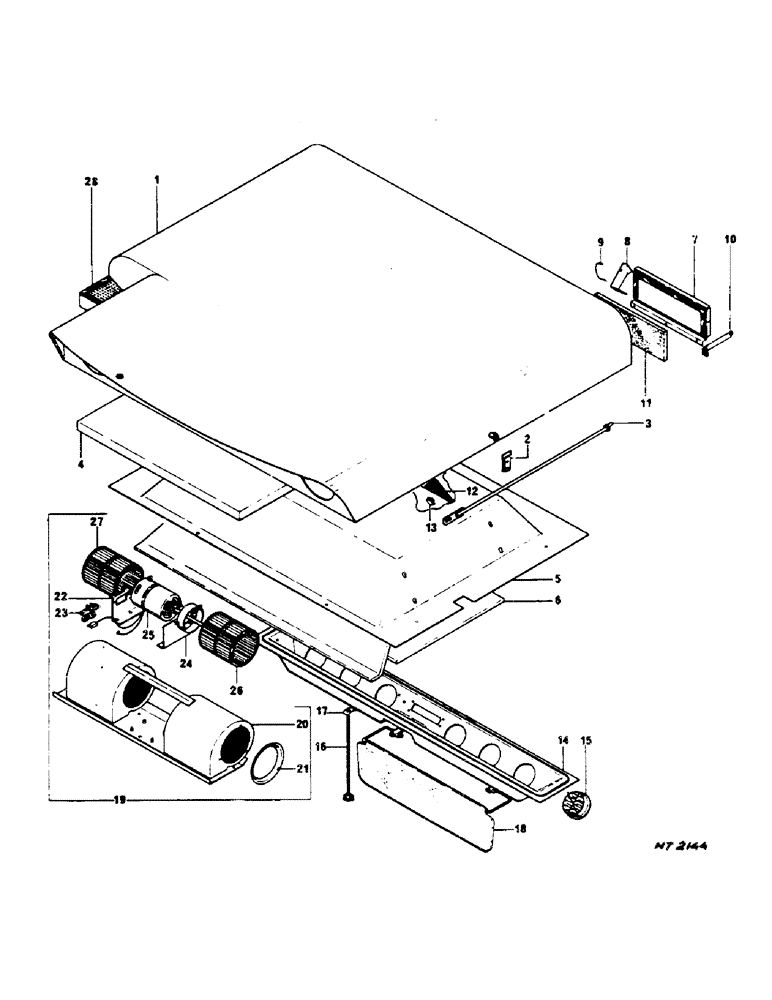

Запчасти Case IH 1460 (13-029) - OPERATORS CAB ROOF, BLOWER (05) - SUPERSTRUCTURE

1

1312497C91

ROOF

TOP, W/HINGE, WITH 4

1шт.

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

4шт.

934310R1

NUT,M8, Cl 8

4шт.

934309R1

LOCK WASHER,M8

4шт.

2

1312498C1

LATCH

TOP

1шт.

30773R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

2шт.

3

1312499C1

SUPPORT

ROOF

1шт.

30483R1

BOLT (SPREADER),Hex, M10 x 40, 8.8, Full Thd

1шт.

905522R1

NUT

M10 HM-CL.8 HEX ZND

2шт.

4

109290C6

NOISE PROTECTION

SEAL FORM

1шт.

5

1312533C1

LINING

HEAD

1шт.

931671R1

SCREW,M5 x 10mm, Cl 5.6

M6 X 25 O/HDS PHC

7шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

14шт.

6

1312532C1

INSULATOR

UPPER ACOUSTICAL PANEL

1шт.

7

1312534C1

DOOR

RECIRCULATING AIR

1шт.

30278R1

SCREW,Cross Pan Hd, M5 x 14

3шт.

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

5.3 X 11 X 1 MM ZND

3шт.

934871R1

NUT,M5, Cl 5

3шт.

8

1312535C1

SUPPORT

RECIRCULATING AIR DOOR

1шт.

9

1312536C1

VALVE SPRING

RECIRCULATING AIR DOOR

1шт.

10

1312537C1

HANDLE

RECIRCULATING AIR DOOR

1шт.

30590R1

SCREW,Hex Wash Hd, M5 x 25

1шт.

934871R1

NUT,M5, Cl 5

1шт.

934176R1

NUT

M5 HEX LOCK AND

1шт.

11

183661C1

AIR CLEANER

FILTER, RECIRCULATING

1шт.

12

1312538C1

GRILLE

RECIRCULATING AIR FILTER

1шт.

905552R1

SCREW,M6 x 40mm

M6 X 40 O/HDS ZND

2шт.

934173R1

WASHER

7 X 14 X 1.2 ZND

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

934113R1

LOCK NUT

NUT, M6 HEX LOCK ZND

2шт.

13

1312539C1

KNOB

4шт.

14

CHANNEL, CIRCULATING AIR, WITH 15 - 17

1шт.

15

1312575C91

DEFLECTOR

AIR

6шт.

16

1275947C1

STUD

M6 X 125

2шт.

934948R1

WASHER,M6

2шт.

17

126385C1

NUT

SPRING

2шт.

18

VISOR, SUN

1шт.

3233230R1

SELF-TAP SCREW,Oval Hd, M4.2 x 22

1шт.

19

1255878C91

BLOWER ASSY.

PRESSURIZER, WITH 20 - 27

1шт.

20

HOUSING ASSY, NOT AVAILABLE SEPARATELY

1шт.

21

65010C1

RETAINER

INLET

2шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

6шт.

22

1262098C1

SUPPORT ASSY.

RESISTOR

1шт.

66299C1

NUT

10-32 HEX KEPS

2шт.

23

1255876C1

RESISTOR

ASSY

1шт.

449603

SCREW

2шт.

24

143167C1

SUPPORT ASSY.

BRACKET, MOTOR RH

1шт.

66299C1

NUT

10-32 HEX KEPS

2шт.

25

142990C2

MOTOR, ELECTRIC

1шт.

66299C1

NUT

10-32 HEX KEPS

4шт.

26

539018R2

FAN

WHEEL LH

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

4шт.

27

539077R2

FAN

WHEEL RH

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

4шт.

28

143481C91

FILTER

Standard, AIR INTAKE, WITH SERVICING INSTRUCTIONS

1шт.

28

143481C92

CAB FILTER

Carbon

1шт.
