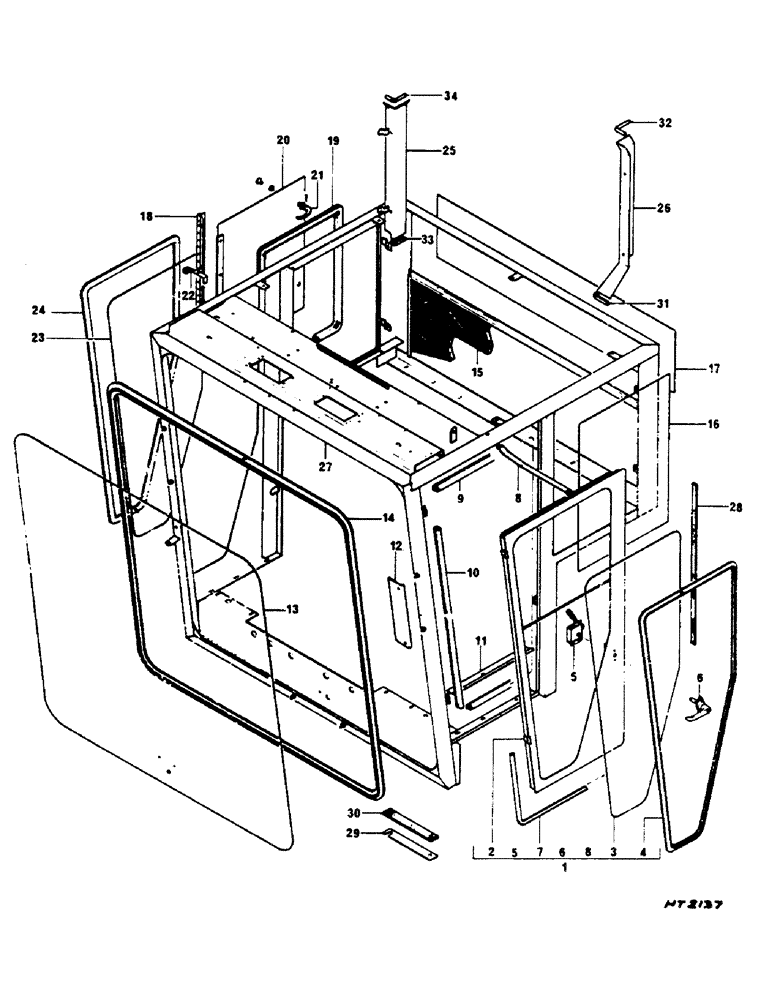

Запчасти Case IH 1460 (13-025) - OPERATORS CAB BOTTOM (05) - SUPERSTRUCTURE

1

DOOR ASSY, CAB, WITH 2 - 8

1шт.

2

DOOR, - NOT AVAILABLE SEPARATELY

1шт.

3

1312508C1

GLASS

CAB DOOR

1шт.

4

STRIP, DOOR GLASS - 3260 MM FROM BULK STOCK

1шт.

1312519C1

SEAL, GLASS

STRIP BULK STOCK

1шт.

5

1312521C1

LOCK

LATCH, DOOR INSIDE

1шт.

931828R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

933833R1

LOCK WASHER,M6

4шт.

934173R1

WASHER

7 X 14 X 1.2 MM FLAT

4шт.

933888R1

LOCK NUT

NUT, M6 HEX

4шт.

6

1312517C1

HANDLE

ASSY, DOOR OUTSIDE

1шт.

30432R1

SCREW,Hex Flat Hd, M4 x 20, 4.8

2шт.

7

STRIP, DOOR REAR TOP AND BOTTOM - 2520 MM FROM BULK STOCK

1шт.

1312511C1

SEALING STRIP

STRIP BULK STOCK

1шт.

8

1312516C1

ARM ASSY.

CAB DOOR CHECK

1шт.

933228R1

WASHER

7 X 30 X 2 MM FLAT

1шт.

934788R1

COTTER PIN,M2 x 16

2 X 16 MM

1шт.

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

935113R1

LOCK NUT

M6

1шт.

9

STRIP, DOOR REAR AND TOP - 2500 MM FROM BULK STOCK

1шт.

1312523C1

SEALING STRIP

SEAL, BULK STOCK

1шт.

10

STRIP, DOOR - NEAR HINGE - 1400 MM FROM BULK STOCK

1шт.

1312523C1

SEALING STRIP

SEAL, BULK STOCK

1шт.

11

1312509C1

SHEET

DOOR BOTTOM STRIP

1шт.

12

1312547C1

SUPPORT

WINDSHIELD SIDE

2шт.

30674R1

CROWN NUT,Crown, M8, Cl6

4шт.

13

1312544C1

GLASS

WINDSHIELD

1шт.

14

STRIP, WINDSHIELD GLASS - 5840 MM FROM BULK STOCK

1шт.

1312519C1

SEAL, GLASS

STRIP BULK STOCK

1шт.

15

INSULATOR, REAR ACOUSTICAL

1шт.

929460C1

FLUID

ADHESIVE REAR ACOUSTICAL

1шт.

16

1312543C1

GLASS

CAB LH REAR

1шт.

1312546C1

FLUID

ADHESIVE

1шт.

17

1312545C1

GLASS

CAB REAR

1шт.

1312546C1

FLUID

ADHESIVE

1шт.

18

1312552C1

HINGE

RH REAR WINDOW

1шт.

934113R1

LOCK NUT

M6 LOCK

7шт.

30422R1

SCREW,Cross Pan Hd, M6 x 16

7шт.

18

1312554C1

WASHER

SPECIAL

4шт.

19

STRIP, RH REAR WINDOW

1шт.

1312523C1

SEALING STRIP

SEAL, BULK STOCK

1шт.

20

1312553C91

GLASS

RH REAR WINDOW, WITH ADHESIVE STRIP

1шт.

21

1312555C1

HANDLE, ASSY, RH REAR WINDOW

2шт.

22

1312556C1

SUPPORT

RH REAR WINDOW LATCH - 2200 MM FROM BULK STOCK

1шт.

23

1312508C1

GLASS

RH FRONT

1шт.

24

STRIP, RH FRONT GLASS - 3260 MM FROM BULK STOCK

1шт.

1312519C1

SEAL, GLASS

STRIP BULK STOCK

1шт.

25

1312622C91

PANEL

RH FILLER, WITH 33 - 34

1шт.

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

2шт.

26

1312624C91

PANEL ASSY.

HOSE COVER LH, WITH 31 - 32

1шт.

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

2шт.

27

BOTTOM, CAB - WITH 15 - NOT AVAILABLE SEPARATELY

1шт.

28

1301123R1

STRIP, CAB TO DECK

1шт.

29

1310129C1

HOSE CLIP

DOOR, CLEAN OUT

1шт.

933500R1

SCREW

THUMB

2шт.

934883R1

SCREW,M6 x 15mm, Cl 4.6

NUT

2шт.

30

STRIP, CLEAN OUT DOOR - 246 MM FROM BULK STOCK

1шт.

1300025C1

GASKET

SEAL, STRIP BULK STOCK

1шт.

31

STRIP, HOSE COVER LH PANEL - 250 MM FROM BULK STOCK

1шт.

1312511C1

SEALING STRIP

STRIP BULK STOCK

1шт.

32

STRIP, HOSE COVER LH PANEL - 5 MM FROM BULK STOCK

1шт.

1312511C1

SEALING STRIP

STRIP BULK STOCK

1шт.

33

STRIP, RH FILLER PANEL - 100 MM FROM BULK STOCK

1шт.

1312511C1

SEALING STRIP

STRIP BULK STOCK

1шт.

34

STRIP, RH FILLER PANEL - 172 MM FROM BULK STOCK

1шт.

1312511C1

SEALING STRIP

STRIP BULK STOCK

1шт.

929460C1

FLUID

ADHESIVE, REAR ACOUSTICAL, NOT ILLUSTRATED

1шт.
