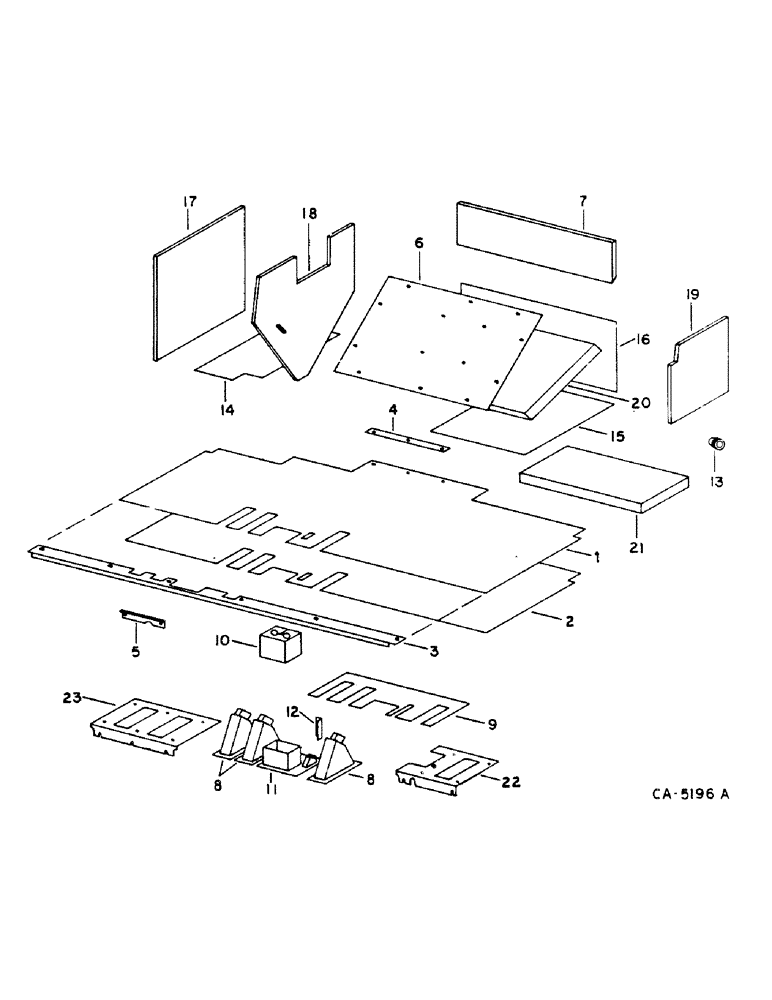

Запчасти Case IH 1460 (13-022) - SOUND PACKAGE, OPERATORS CAB (05) - SUPERSTRUCTURE

1

195540C2

MAT

FLOOR

1шт.

2

195541C1

INSULATOR

FLOOR MAT SOUND

1шт.

3

195538C2

SUPPORT

FLOOR MAT FRONT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

4

198990C1

BAR

FLOOR MAT REAR HOLD DOWN

1шт.

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

1/4-20 X 1.0 ZND HEX-HD TAP

1шт.

5

NOT USED

1шт.

6

195542C1

MAT

COVER CENTRE SUPPORT

1шт.

7

195543C1

INSULATOR

CENTRE REAR SUPPORT

1шт.

8

198074C1

ISOLATOR

FOOT PEDAL

3шт.

9

NOT USED

1шт.

10

1301263C1

STRIP

SEAL, STEERING PEDESTAL

1шт.

11

198075C1

INSULATOR

STEERING PEDESTAL

1шт.

12

187581C1

ANGLE

STEERING PEDESTAL BOOT

1шт.

13

198820C1

GROMMET

PLUG 41.3 MM ID

1шт.

13

198821C1

GROMMET,3.18mm ID x 41.1mm OD x 26.9mm Thk

UNLOADER CABLE 1/8 ID

1шт.

13

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

CABLE SEAL 3/8 ID

6шт.

13

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

CABLE SEAL 1/2 ID

1шт.

13

1312529C1

PLUG

GROMMET, PLUG 58 MM ID - WITHOUT AIR CONDITIONER HOSE

1шт.

14

196587C4

FOAM INSULATION

SHEET, FLOOR SOUND R.H.

1шт.

15

196586C1

SHEET

FLOOR SOUND CENTRE

1шт.

16

196599C1

LINING

SHEET, SOUND CENTRE FILLER

1шт.

17

1301219C2

SHEET

RH CONSOLE SOUND OUTER

1шт.

18

1301220C1

SHEET

RH CONSOLE SOUND INNER

1шт.

19

196598C1

SHEET

L.H. CONSOLE SOUND OUTER

1шт.

20

196602C1

SHEET

CENTRE SOUND

1шт.

21

196604C1

SHEET

MANUAL BOX SOUND

1шт.

22

187882C1

PLATE

HOLD DOWN, FOOT PEDAL BOOT L.H.

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HE

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

23

187883C1

BRACKET

PLATE, HOLD DOWN, FOOT PEDAL BOOT R.H.

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

929460C1

FLUID

ADHESIVE, CENTRE MAT AND REAR INDULATION, NOT ILLUSTRATED

1шт.
