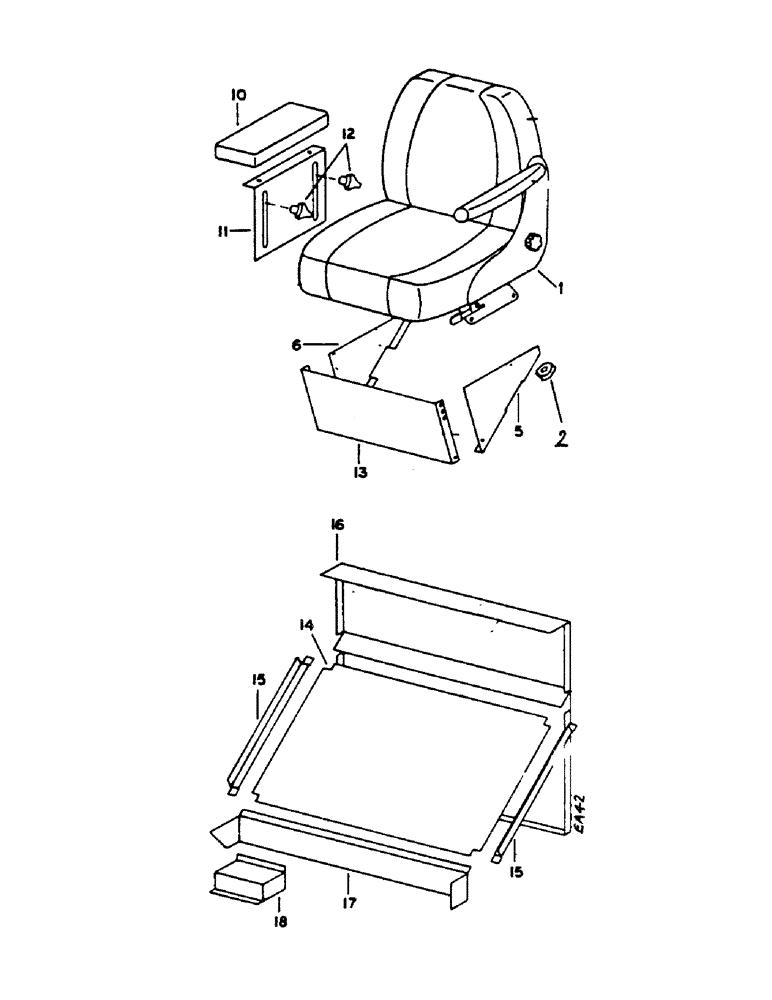

Запчасти Case IH 1460 (13-019) - OPERATORS SEAT (05) - SUPERSTRUCTURE

1

1312149C91

SEAT

ASSY, OPERATORS

1шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

4шт.

2

1312153C1

SPACER

4шт.

3175677R1

BOLT,Hex Serr Flg, M8 x 25mm

4шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

1шт.

3

NOT USED

1шт.

4

NOT USED

1шт.

5

1312150C1

SUPPORT

SEAT LH

1шт.

5

3179796R1

SUPPORT, SEAT LH - FOR GERMANY ONLY

1шт.

6

1312151C1

SUPPORT

SEAT RH

1шт.

6

3179797R1

SUPPORT, SEAT RH - FOR GERMANY ONLY

1шт.

7

NOT USED

1шт.

8

NOT USED

1шт.

9

NOT USED

1шт.

10

192998C1

RESTRICTOR

REST, SEAT ARM

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

1шт.

11

192999C1

SUPPORT

ARMREST MOUNTING

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

1шт.

12

196970C1

KNOB

ARMREST

2шт.

120393

BEARING WASHER,5/16", SAE

1шт.

13

1312152R1

CHANNEL, SEAT BRACKET

1шт.

13

3179998R1

CHANNEL, SEAT BRACKET - FOR GERMANY ONLY

1шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

1шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

1шт.

14

193000C1

PLATE

OPERATORS PLATFORM CENTRE

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

1шт.

15

1312157C1

SUPPORT ASSY.

OPERATORS PLATFORM CENTRE SIDE

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

16

193003C1

SUPPORT ASSY.

OPERATORS PLATFORM CENTRE REAR

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

17

193006C1

SUPPORT

ASSY, OPERATORS PLATFORM CENTRE FRONT

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

18

195554C1

COVER ASSY

1шт.

167257

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

1шт.
