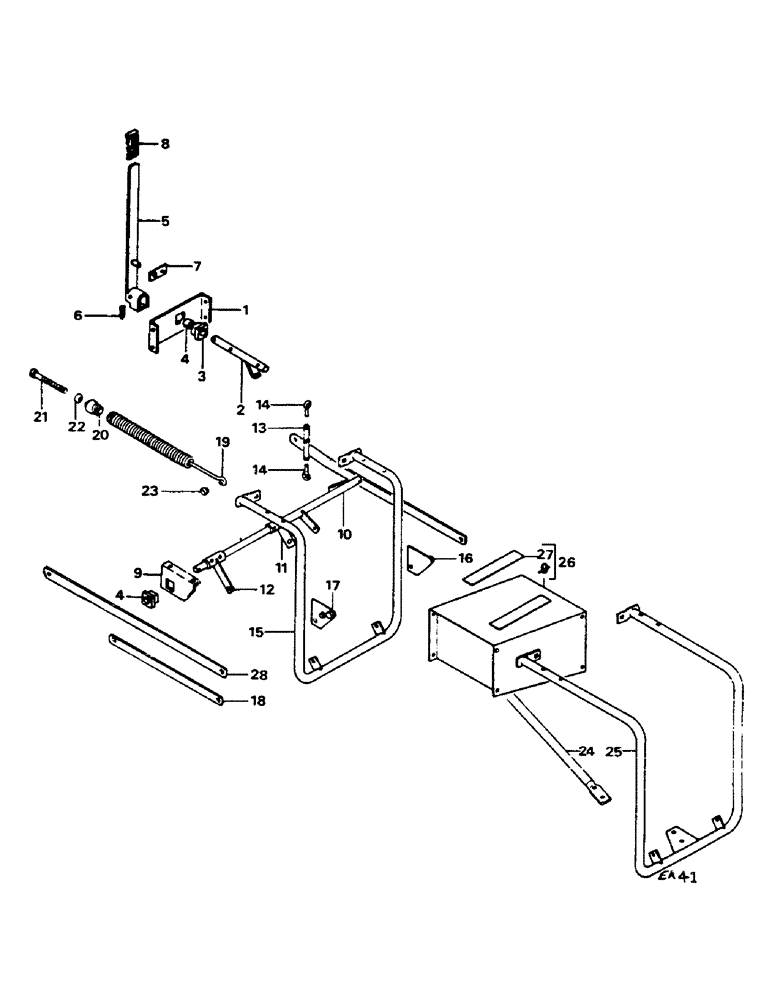

Запчасти Case IH 1460 (13-016) - OP. PLATFORM RAILS AND LADDER EXTENSIONS (05) - SUPERSTRUCTURE

OP. PLATF. LADDER LIFTING LINKAGE

1шт.

1

1312102C1

CHANNEL

DRIVE SHAFT SUPPORT SHEET

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

8шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

8шт.

2

1312103C1

SHAFT ASSY.

LADDER LIFT

1шт.

PIN, COTTER 4 X 50 MM

2шт.

3175756R1

WASHER

26 X 35 X 1.5 MM PLN FLAT

2шт.

3

3175774R91

BUSHING

ASSY, WITH 4

4шт.

3

3173452R1

FLANGED BEARING

BUSHING ASSY, OPTIONAL

4шт.

4

793168R2

BUSHING,25.03mm ID x 28.24mm OD x 25.5mm L

4шт.

5

1312106C1

LEVER ASSY.

LEFT DRIVE

1шт.

932555R1

PIN

8 X 20 MM CLD SPR

1шт.

Q2933

LOCK PIN,M8 x 40, Slotted

1шт.

932236R1

LOCK PIN,M5 x 40, Slotted

1шт.

6

V620

SPRING

1шт.

7

1312111C1

STOP

DRIVE LEVER

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 C 20 SLT-TRUSS-HD

1шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

1шт.

8

790933R2

HANDLE

LEVER

1шт.

9

1312112C1

SUPPORT

SHAFT

2шт.

3177073R1

SCREW

SPARE PART M10 X 25 SLT-TRUSS-HD

4шт.

3164622R1

LOCK NUT

M10 FLANGE LOCK

4шт.

934768R1

WASHER

11 X 27 X 2 MM

1шт.

10

1312113C1

SHAFT ASSY.

DRIVE

1шт.

PIN, 4 X 50 MM PLN COT

1шт.

3175756R1

WASHER

26 X 35 X 1.5 MM FLAT

1шт.

11

1312117C1

ARM ASSY.

SPRING FIXING HUB

1шт.

Q2933

LOCK PIN,M8 x 40, Slotted

2шт.

932236R1

LOCK PIN,M5 x 40, Slotted

2шт.

12

1312119C1

ARM ASSY.

DRVIE BELLCRANK

1шт.

Q2933

LOCK PIN,M8 x 40, Slotted

2шт.

932236R1

LOCK PIN,M5 x 40, Slotted

2шт.

30393R1

COTTER PIN

4 X 50 PLN COT

1шт.

3175756R1

WASHER

26 X 35 1.5 MM FLAT

1шт.

13

1312121C1

PIPE

LIAISON

1шт.

14

3167619R1

EYEBOLT,M10 x 48mm

BOLT, EYE

2шт.

14

3167580

BOLT, EYE, OPTIONAL

2шт.

933449R1

JAM NUT

M10 JAM

2шт.

933586R1

WASHER

11 X 20 X 2 MM

2шт.

PIN, 3.2 X 20 MM PLN COT

2шт.

15

3168443R2

GRAB RAIL

LADDER

1шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

3164622R1

LOCK NUT

M10 FLANGE LOCK

2шт.

16

3168712R2

ROD

BRACKET ASSY, REAR INTERM. CRANK

1шт.

PIN, 4 X 40 MM PLN COT

1шт.

3176136R1

WASHER

WASHER, 17 X 28 X 1.5 MM FLAT

1шт.

17

3168713R2

ROD

BRACKET ASSY, FRONT INTERM. CRANK

1шт.

PIN, 4 X 40 MM PLN COT

1шт.

3176136R1

WASHER

17 X 28 X 1.5 MM FLAT

1шт.

18

1312124C1

BAR

LADDER DRIVE CRANK

2шт.

3014433R1

PIN

SPARE PART Q-A

2шт.

3176136R1

WASHER

17 X 28 X 1.5 MM FLAT

2шт.

PIN, 3.2 X 38 MM PLN COT

2шт.

19

3168719R1

SPRING

1шт.

20

1409190R1

PLUG

SPRING CONNECTION

1шт.

933447R1

NUT

M12 PLN STEEL

1шт.

21

930874R1

BOLT

PLUG

1шт.

21

790621R11

BOLT

PLUG - OPTIONAL

1шт.

22

744534R3

WASHER

SPHERICAL

1шт.

23

790121R1

BUSHING

1шт.

3168002R1

BOLT,Hex Serr Flg, M10 x 40

1шт.

3164622R1

LOCK NUT

M10 FLANGE LOCK

1шт.

24

1312099C1

PIPE

LADDER SUPPORT

1шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

3164622R1

LOCK NUT

M10 FLANGE LOCK

1шт.

25

3168444R2

RAIL

ASSY, LADDER

1шт.

26

3168442R92

BRACKET

ASSY, LADDER SUPPORT, WITH 27

1шт.

30638R1

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

4шт.

3161913R1

NUT, M12 FLANGE LOCK

4шт.

27

3168217R1

STRIP

SAFETY WALK

2шт.

28

1312098C1

BAR

LADDER DRIVE CRANK

2шт.
