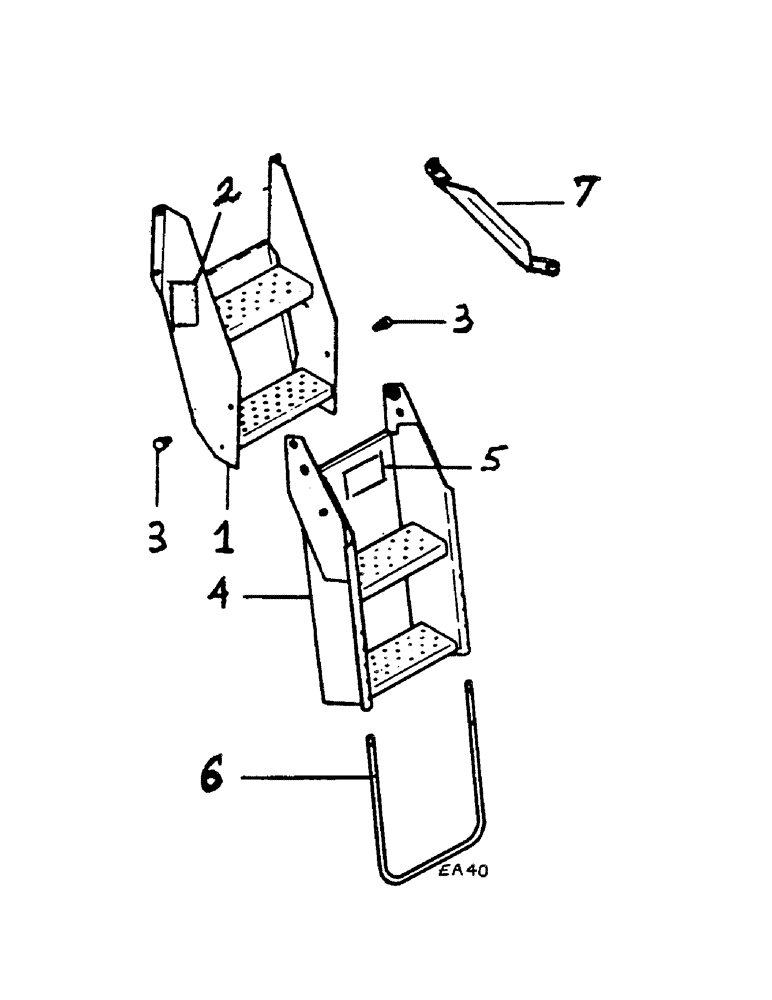

Запчасти Case IH 1460 (13-014) - OPERATORS PLATFORM LADDER (05) - SUPERSTRUCTURE

1

1312398C92

BRACKET

ASSY, LADDER, WITH 2

1шт.

30594R1

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8

4шт.

3161013R1

LOCK NUT

M12 FLANGE LOCK

4шт.

2

1312076C1

PRODUCT GRAPHIC

DANGER

1шт.

3

3177428R1

STUD

LADDER PIVOT

2шт.

9706685

NUT,M12 x 1.75, Cl 8

2шт.

933966R1

LOCK WASHER,M12

2шт.

4

1312393C91

LADDER

1шт.

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

4шт.

934310R1

NUT,M8, Cl 8

4шт.

934309R1

LOCK WASHER,M8

4шт.

3176200R1

WASHER

8.25 X 18 X 1.5 MM

4шт.

5

1312054C1

HARNESS

PRODUCT GRAPHIC, DANGER

1шт.

6

3168144R2

TUBE

LADDER LOWER STEP

1шт.

7

1312123C1

PIPE

SPARE PART LADDER SUPPORT

1шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

3164622R1

LOCK NUT

M10 FLANGE LOCK

2шт.

3168725R1

ROPE

LIFTING

1шт.

715945C91

CLAMP

1шт.

30264R1

LOCK WASHER,M5

2шт.
