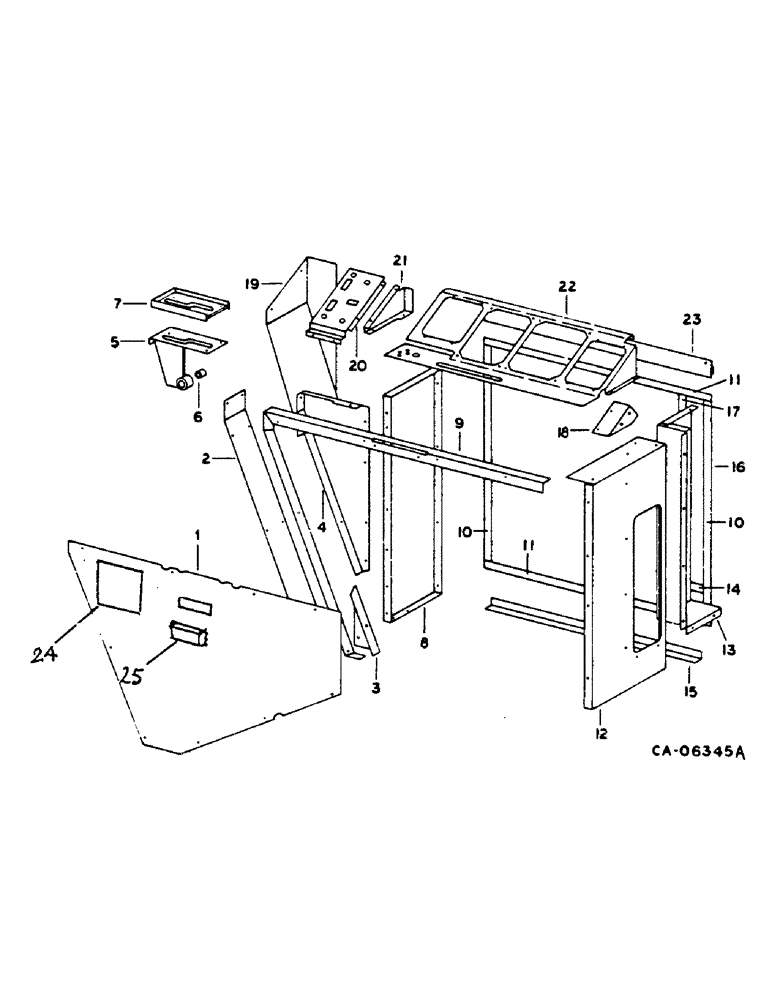

Запчасти Case IH 1460 (13-011) - RIGHT CONSOLE (05) - SUPERSTRUCTURE

1

1312395C92

SHIELD

PLATE, RIGHT CONSOLE INNER, WITH 24

1шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

1шт.

2

193034C1

SUPPORT

RIGHT CONSOLE EXTENSION FRONT

1шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

1шт.

3

195991C1

SUPPORT

R.H. CONSOLE EXTENSION LOWER

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT -TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

4

195992C2

SUPPORT

R.H. CONSOLE EXTENSION

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

5

193277C91

SUPPORT ASSY.

CONSOLE EXTENSION - HYDROSTATIC DRIVE, WITH 6

1шт.

167257

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

1шт.

6

165704C1

BUSHING

CONSOLE EXTENSION SUPPORT

1шт.

7

198988C1

COVER

CONSOLE - HYDROSTATIC DRIVE

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

1шт.

8

1312130C1

SUPPORT

RIGHT CONSOLE FRONT

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

9

193031C2

SUPPORT ASSY.

RIGHT CONSOLE FRONT

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

10

STRIP, CONSOLE COVER - 26.7 IN. FROM BULK STOCK MARKED 195917C1

2шт.

11

STRIP, CONSOLE COVER - 27.2 IN. FROM BULK STOCK MARKED 195917C1

2шт.

12

1301214C1

SUPPORT

RIGHT CONSOLE REAR

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

13

1301215C3

SUPPORT

RIGHT CONSOLE ELECTRICAL

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

14

STRIP, CONSOLE COVER - 3.0 IN. FROM BULK STOCK MARKED 195917C1

1шт.

15

193033C2

ANGLE

RIGHT CONSOLE OUTER LOWER

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

16

1301218C1

PLATE

RIGHT CONSOLE OUTER

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

1шт.

17

STRIP, CONSOLE COVER - 25.4 IN. FROM BULK STOCK MARKED 195917C1

1шт.

18

1301217C1

ANGLE

FUSE HOLDER MOUNTING

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 X 1/2 SLT-TRUSS-HD

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

19

1301213C1

SUPPORT

SPARE PART RIGHT CONSOLE FRONT EXTENSION LOWER

1шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

1шт.

20

1301212C3

SUPPORT

RIGHT CONSOLE FRONT TOP

1шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

1шт.

21

1301211C1

SUPPORT

SPARE PART RIGHT CONSOLE TOP FRONT

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

22

1301210C2

SUPPORT

RIGHT CONSOLE TOP

1шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

1шт.

20893R1

WASHER

.344 X 1.000 X .105

1шт.

23

1301334C1

SUPPORT

R.H. OUTER COVER

1шт.

23

1312084C1

PRODUCT GRAPHIC

CAUTION

1шт.

24

1312688C1

PLUG

1шт.

195917C1

GASKET

STRIP, BULK LENGTH "- USED WITH 10, 11, 14, 17

1шт.
