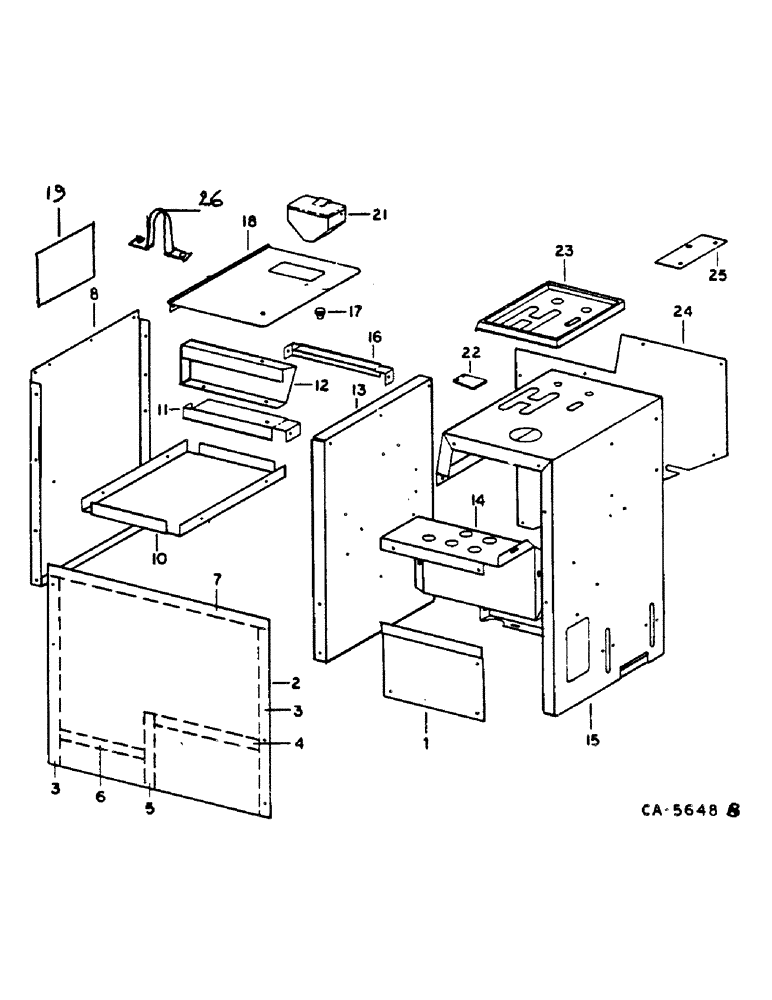

Запчасти Case IH 1460 (13-008) - LEFT CONSOLE (05) - SUPERSTRUCTURE

1

1301517C1

SUPPORT

LEFT CONSOLE LOWER OUTER

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

1шт.

2

193061C1

PLATE

LEFT CONSOLE OUTER COVER

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

1шт.

3

STRIP, CONSOLE COVER - 18.3 IN. FROM BULK STOCK MARKED 195917C1

2шт.

4

STRIP, CONSOLE COVER - 11.8 IN. FROM BULK STOCK MARKED 195917C1

1шт.

5

STRIP, CONSOLE COVER - 7.0 IN. FROM BULK STOCK MARKED 195917C1

1шт.

6

STRIP, CONSOLE COVER - 9.0 IN. FROM BULK STOCK MARKED 195917C1

1шт.

7

STRIP, CONSOLE COVER - 23.0 IN. FROM BULK STOCK MARKED 195917C1

1шт.

195917C1

GASKET

STRIP, BULK LENGTH

1шт.

8

1312394C91

SUPPORT

LH CONSOLE FRONT, WITH 19

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

9

NOT USED

1шт.

10

193010C2

SUPPORT

MANUAL BOX

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

11

193011C1

SUPPORT

MANUAL BOX COVER LEFT

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

12

193013C1

SUPPORT

OPERATORS CAB L.H. SIDE

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

13

1312126C1

SUPPORT

MANUAL BOX REAR

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZND SLT-TRUSS-HD

1шт.

14

1312125C1

SUPPORT

LEFT CONSOLE LOWER

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZND SLT-TRUSS-HD

1шт.

15

1312385C1

SUPPORT

OPERATORS CONTROL REAR LEFT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

16

193012C1

SUPPORT

MANUAL BOX COVER RIGHT

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZND SLT-TRUSS-HD

1шт.

17

198981C1

KNOB

MANUAL BOX DOOR

1шт.

160046

SCREW,Cross Pan Hd, #10 - 32 x 1/2"

1шт.

120217

LOCK WASHER,#10

1шт.

18

193014C1

DOOR

ASSY, L.H. MANUAL BOX, WITH 19 - 20

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

19

1312065C1

PRODUCT GRAPHIC

SAFETY AND OPERATING INSTRUCTION

1шт.

20

NOT USED

1шт.

21

111396C1

ASH TRAY

1шт.

22

195239C2

BAR

H PATTERN FILLER

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1шт.

23

198805C1

COVER

LEFT CONSOLE

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

1шт.

24

1312129C1

PLATE

LEFT CONSOLE INNER

1шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

1шт.

25

1301357C2

BAR

L.H. CONSOLE SWITCH SUPPORT

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

26

1311067C1

PROTECTOR

1шт.

27378R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

2шт.
