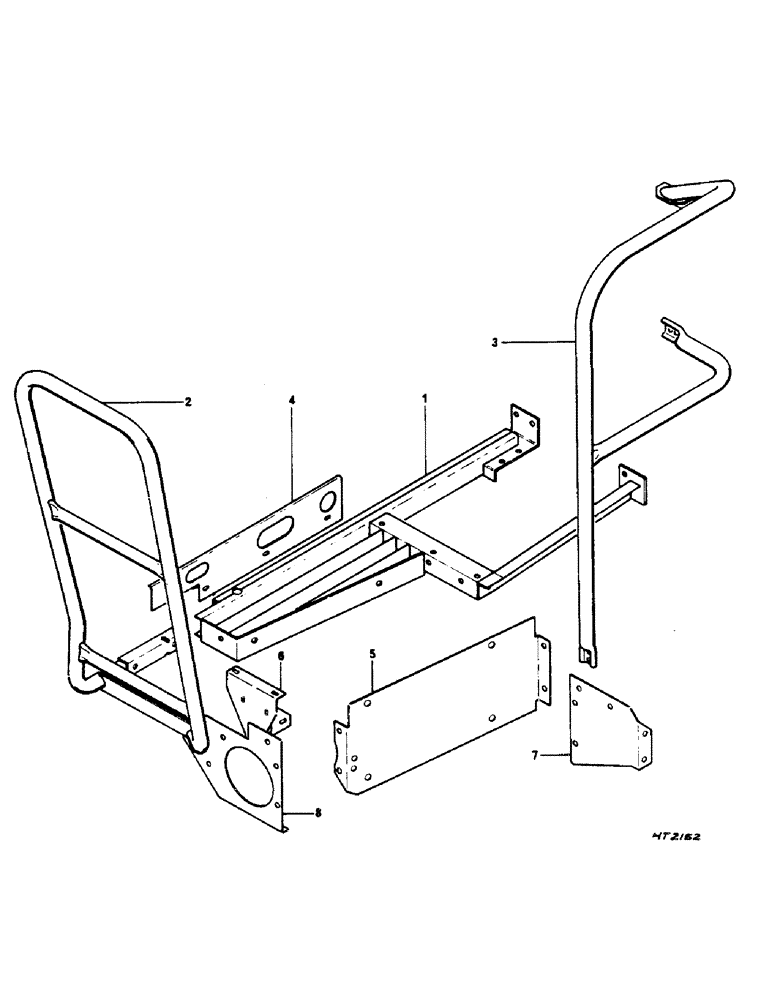

Запчасти Case IH 1460 (13-006) - OPERATORS PLATFORM EXTENSION (05) - SUPERSTRUCTURE

1

1312166C1

SUPPORT

EXTENSION

1шт.

3177073R1

SCREW

SPARE PART M10 X 25 SLT-TRUSS-HD

8шт.

3164622R1

LOCK NUT

3/8 FLANGE LOCK

8шт.

2

1312176C1

RAIL

HAND FRONT

1шт.

931845R1

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

3161013R1

LOCK NUT

M12 FLANGE LOCK

1шт.

934299R1

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

2шт.

1312184C1

WASHER

HANDRAIL SPACER

1шт.

3

1312181C1

RAIL

HAND, REAR

1шт.

3177072R1

BOLT

SPARE PART SCREW, M10 X 20 SLT-TRUSS-HD

6шт.

3164622R1

LOCK NUT

M10 FLANGE LOCK

6шт.

4

1312189C1

SUPPORT

PLATFORM EXTENSION RH

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

3шт.

5

1312190C1

SUPPORT

PLATFORM EXTENSION LH SHEET

1шт.

6

1312191C1

SUPPORT ASSY.

LIGHT

1шт.

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

3164622R1

LOCK NUT

M10 FLANGE LOCK

2шт.

7

1312194C1

SUPPORT

PLATFORM EXTENSION REAR SHEET

1шт.

7

3179977R1

SUPPORT ASSY.

PLATFORM EXTENSION REAR SHEET - FOR GERMANY ONLY

1шт.

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

6шт.

3164622R1

LOCK NUT

M10 FLANGE LOCK

6шт.

8

1312195C1

SUPPORT

PLATFORM EXTENSION FRONT SHEET

1шт.

8

3179980R1

SUPPORT ASSY.

PLATFORM EXTENSION FRONT SHEET - FOR GERMANY ONLY

1шт.

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

6шт.

3164622R1

LOCK NUT

M10 FLANGE LOCK

6шт.
