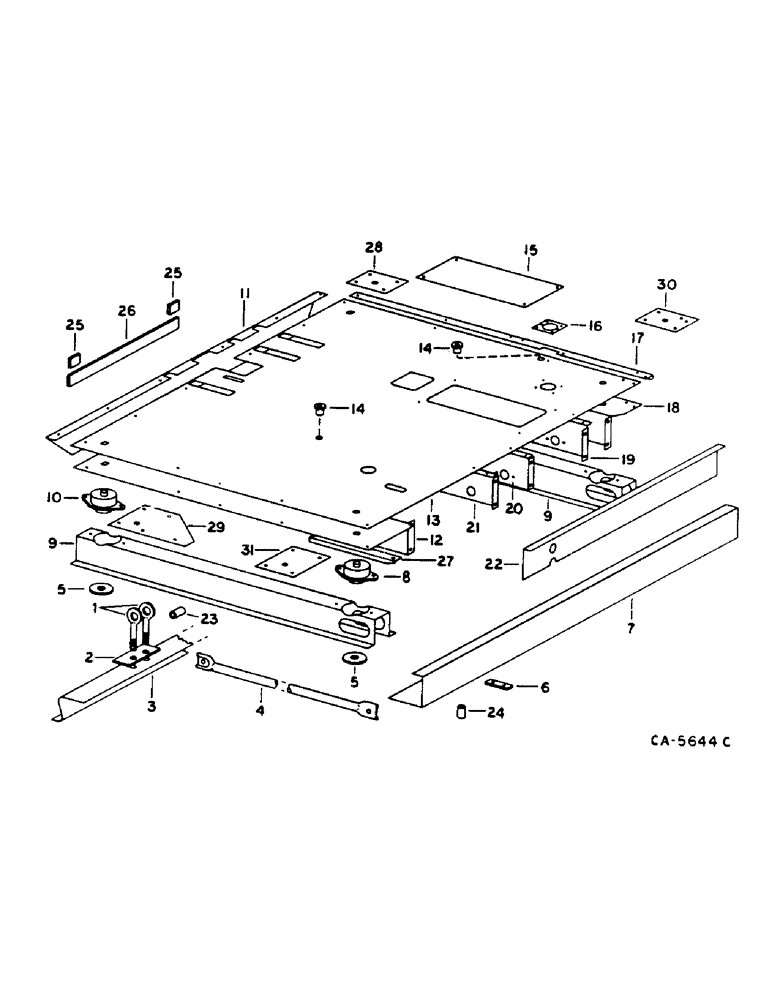

Запчасти Case IH 1460 (13-002) - OPERATORS PLATFORM (05) - SUPERSTRUCTURE

165648C2

BOLT,3/4" - 10 x 4 1/2"

PLATFORM FRONT LEVELING EYE

4шт.

280954

NUT,3/4"-10, G5

1шт.

24771R1

LOCK WASHER,3/4"

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

1шт.

2

196592C2

BAR

PLATFORM FRONT LEVELING

2шт.

3

1312159C1

SUPPORT

OPERATORS PLATFORM FRONT

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

4

1312165C1

ROD, OPERATORS PLATFORM EXTENSION

1шт.

3164622R1

LOCK NUT

M10 FLANGE LOCK

1шт.

3177073R1

SCREW

SPARE PART M10 X 25 SLT-TRUSS-HD

1шт.

5

196591C1

WASHER

ISOLATION MOUNT

4шт.

6

195715C1

BAR

PLATFORM REAR MTG. CHANNEL .5

2шт.

6

193428C1

BAR

REAR MOUNTING CHANNEL .625

2шт.

7

1312162C1

SUPPORT

OPERATORS PLATFORM REAR

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1/2 X 2-1/4 PLN TYPE 5

1шт.

8

196950C1

INSULATOR

REAR VIBRATION

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

280954

NUT,3/4"-10, G5

1шт.

24771R1

LOCK WASHER,3/4"

1шт.

9

1312196C1

SUPPORT

OOPERATORS PLATFORM SIDE

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

10

117722C4

INSULATOR

FRONT VIBRATION

2шт.

10

117722C4GV

INSULATOR

FRONT VIBRATION

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

1317014C1

CARRIAGE BOLT,Short Sq Nk, 3/4" - 10 x 5", Type 5

3/4 X 5 CRG TYPE 5

1шт.

24771R1

LOCK WASHER,3/4"

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

280954

NUT,3/4"-10, G5

1шт.

22266R1

WASHER

1.156 X 1.750 X .027

1шт.

478258R1

WASHER

1.156 X 1.750 X .105

1шт.

11

195517C4

SUPPORT

OPERATORS PLATFORM FRONT

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

1шт.

12

1312163C1

SUPPORT ASSY.

OPERATORS PLATFROM L.H.

1шт.

13

1312283C1

PLATE

OPERATOR

1шт.

14

195800C1

GROMMET

2шт.

14

198820C1

GROMMET

PLUG

1шт.

15

193029C2

PLATE

BRAKE ACCESS REAR

1шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

1шт.

16

187533C1

BAR

SPARE PART PLATFORM WIRING HOLE

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

17

196969C3

SUPPORT

PLATFROM STIFFENER RIGHT SIDE

1шт.

18

195518C5

SUPPORT

OPERATORS PLATFORM R.H.

1шт.

19

195519C3

SUPPORT

OPERATORS PLATFORM RIGHT CENTRE

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

20

195521C2

SUPPORT

OPERATORS PLATFORM CENTRE

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZND SLT-TRUSS-HD

1шт.

21

195557C4

SUPPORT

OPERATORS PLATFORM LEFT CENTRE

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

22

195516C2

SUPPORT

OPERATORS PLATFORM REAR

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

23

591070R1

SPACER,3/4" Pipe x 1 7/16"

FRONT LEVELING EYEBOLT

2шт.

280954

NUT,3/4"-10, G5

1шт.

24771R1

LOCK WASHER,3/4"

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

1шт.

24

NOT USED

1шт.

25

187885C1

SEALING STRIP

CAB TO FRONT SEAL - USE 2.0 IN.

2шт.

26

187885C1

SEALING STRIP

CAB TO FRONT SEAL

1шт.

27

183680C1

ANGLE

PLATFORM STIFFENER L.H.

1шт.

28

183668C2

PLATE

PLATFORM RIGHT FRONT

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

29

183669C2

PLATE

PLATFORM LEFT FRONT

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8N X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

30

183678C1

PLATE

PLATFORM RIGHT REAR

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

31

183679C1

PLATE

PLATFORM LEFT REAR

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.
