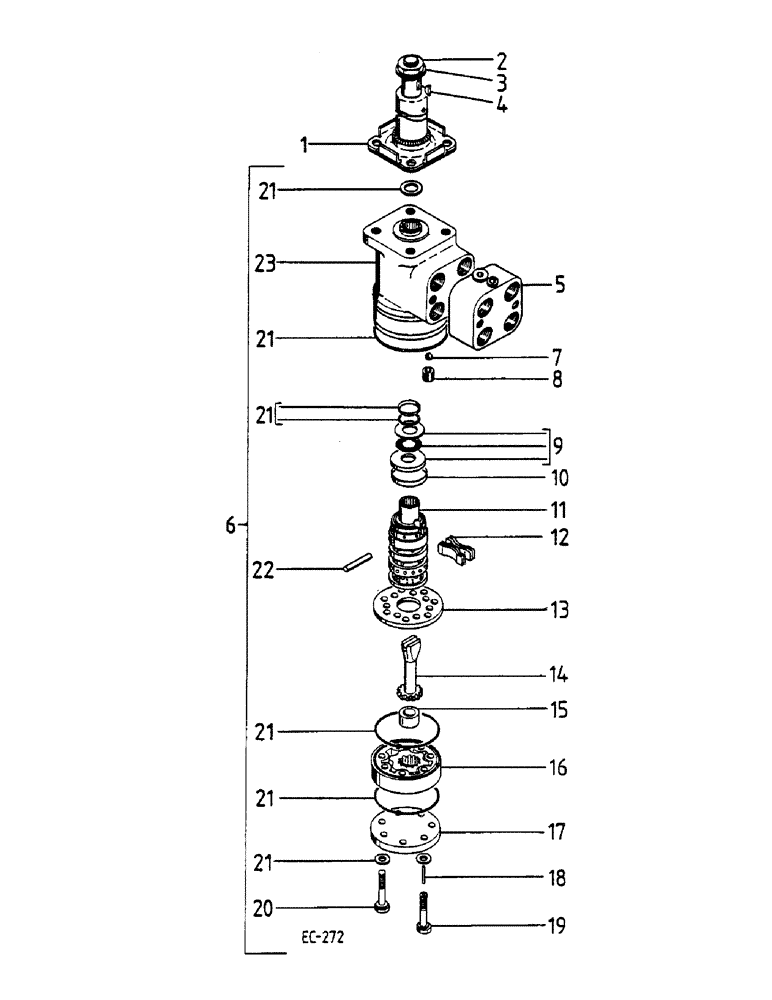

Запчасти Case IH 1460 (05-007) - STEERING COLUMN, HYDROSTATIC PUMP, GERMANY (04) - STEERING

1

1272799C91

SHAFT ASSY.

POST CPTE, STEERING - SERVICE PARTS ARE ITEMS 2, 3, 4

1шт.

2

933787R1

NUT

M18

1шт.

3

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

17.3 X 30 X 3 MM

1шт.

4

932748R1

KEY

WOODRUFF 5 X 6.5 MM

1шт.

5

1272800C91

PLATE

ASSY, SAFETY - SERVICE PARTS ARE:

1шт.

1272810C1

SEAL KIT

ASSY, BOLTS/SEALS

1шт.

1272811C1

KIT

ASSY, RELIEF VALVE REPAIR

1шт.

1272812C1

KIT

ASSY, DUAL SHOCK VALVE REPAIR

1шт.

PIN, ROLL-POSITIONING

1шт.

6

1272798C91

CONTROL VALVE

PUMP ASSY, STEERING HAND - SERVICE PARTS ARE ITEMS 7 - 23

1шт.

7

1272794C1

BALL

1шт.

8

1272793C1

BUSHING

1шт.

9

1272808C1

NEEDLE BEARING

NEEDLE BRG

1шт.

10

1272795C1

O-RING,39.6mm ID x 41mm OD x 4.5mm

1шт.

11

DISTRIBUTOR - NOT AVAILABLE SEPARATELY

1шт.

12

1272809C1

PACKAGE

KIT, SPRING

1шт.

13

1272803C1

PLATE

1шт.

14

1272797C1

SHAFT

1шт.

15

1272802C1

SPACER

1шт.

16

1272804C1

GEAR

SET

1шт.

17

1272805C1

COVER

END

1шт.

18

3112271R1

PIN, ROLL

1шт.

19

1272791C1

SCREW

AXIAL BORED

1шт.

20

3216710R1

SCREW

6шт.

21

1272807C1

SEAL KIT

SEAL REPAIR

1шт.

22

1272796C1

CROSS PIN

1шт.

23

HOUSING, PUMP - NOT AVAILABLE SEPARATELY

1шт.
