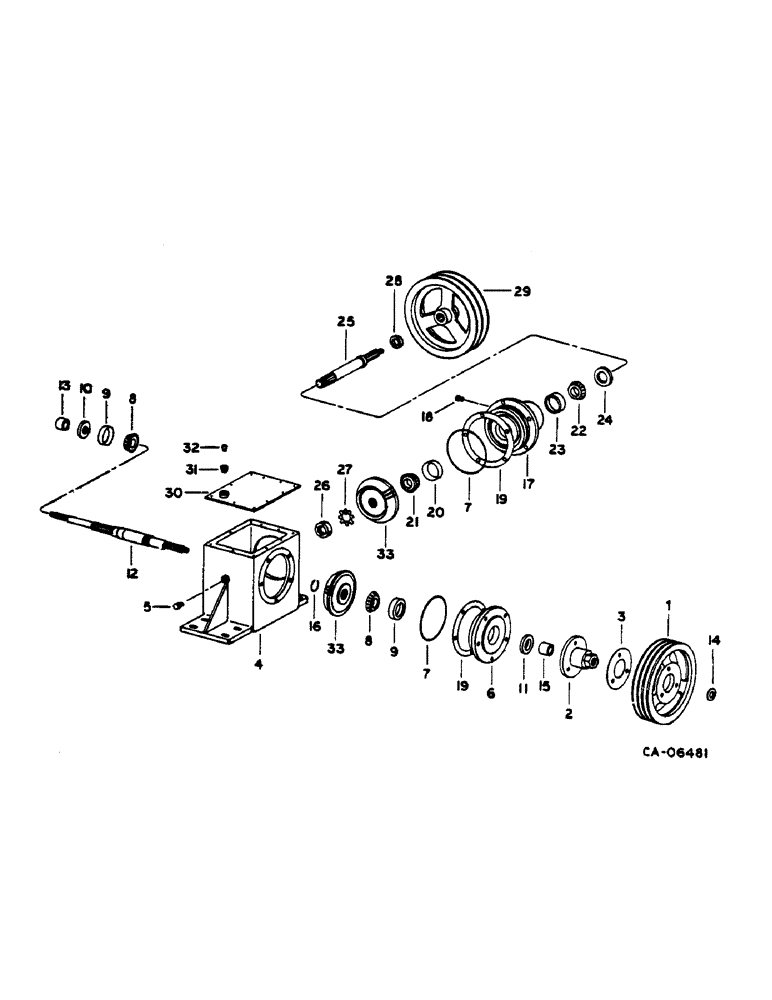

Запчасти Case IH 1460 (07-037) - STRAW CHOPPER GEAR CASE, SEPARATOR DRIVE (04) - Drive Train

181271C1

PULLEY

JACKSHAFT DRIVEN - 15.15 IN. OD

1шт.

2

181211C1

HUB

JACKSHAFT DRIVEN PULLEY

1шт.

566206R2

BOLT,5/8" - 18 x 2.38", Class 8

HUB

3шт.

225861

NUT,5/8"-18, G8

1шт.

131140

LOCK WASHER,5/8"

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

1шт.

3

181363C1

SHIM

DRIVEN PULLEY .060

1шт.

4

181278C1

BEARING HOUSING

JACKSHAFT BEARING

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

1шт.

5

444619

PIPE CLAMP

PLUG, BEARING CASE PIPE

1шт.

6

181274C1

BEARING HOUSING,79.375 mm ID x 177.8 mm OD x 38.1 mm

JACKSHAFT BEARING

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

7

22414R1

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

2шт.

8

298029R91

BEARING ASSY,47.63mm ID x 22.23mm W

JACKSHAFT

2шт.

9

ST874A

TAPERED BEARING,90.03mm OD x 16mm W

JACKSHAFT CUP

2шт.

10

181287C1

SEAL,47.65mm ID x 79.5mm OD x 9.53mm Thk

JACKSHAFT HUB FORWARD

1шт.

11

181288C1

SEAL,60.33mm ID x 79.5mm OD x 9.53mm Thk

JACKSHAFT HUB REAR

1шт.

12

181194C2

SHAFT

SEPARATOR DRIVE

1шт.

9413986

LOCK NUT,1"-8, GC

1шт.

27821R1

LOCK NUT,1 1/4"-7, GB

1-1/4 CAD P/T LOCK TYPE 5

1шт.

25847R1

WASHER

1.062 X 2.000 X .209 HDN

1шт.

13

181290C1

SPACER

JACKSHAFT

1шт.

14

188877C1

WASHER

1.31 X 2.38 X .25 HARD

1шт.

15

181269C1

SPACER

JACKSHAFT REAR

1шт.

16

181255C1

SNAP RING

RING, DRIVE GEAR SNAP .102

1шт.

17

191245C2

HUB

CHOPPER DRIVE

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

18

444614

PLUG,Hex Hd, 1/8"-27, Brass

CHOPPER DRIVE HUB

2шт.

19

195484C2

SHIM KIT

SHIM, PACKAGE

1шт.

20

ST2071

TAPERED BEARING,34.92mm ID x 23.81mm W

HUB INNER

1шт.

21

13324D

BEARING CUP,2.391" ID x 3.001" OD x 0.952"

HUB INNER CUP

1шт.

22

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

HUB OUTER

1шт.

23

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Hub Outer

1шт.

24

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

CHOPPER DR. SHAFT OIL

1шт.

25

181195C1

SHAFT

CHOPPER DR.

1шт.

427646

SLOTTED NUT,7/8"-14, G5

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

26070R1

WASHER,15/16" x 1 3/4" x .179", HDN

1шт.

26297R1

WASHER,1 3/16" x 2 1/4" x .134", HDN

1шт.

26

271253

NUT

BEARING LOCK

1шт.

27

181268C1

BEARING WASHER,1.193" ID x 1.95" OD

DRIVE SHAFT BEARING LOCK

1шт.

28

181156C1

SPACER

SPACER, DRIVE SHAFT

2шт.

29

181081C1

PULLEY

CHOPPER DRIVE - 12 IN. OD

1шт.

30

181281C1

COVER

CHOPPER DRIVE CASE

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

31

217-46

REDUCER,3/4" - 14 NPTF x 3/8" - 18 Fem NPTF

ADAPTER, 3/4 TO 3/8 ZNP OUT/H/HD PIPE

1шт.

32

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

FITTING, 3/8PTF SHORT W/FELT WASHER LUB

1шт.

33

188814C1

BEVEL GEAR

SET

1шт.
