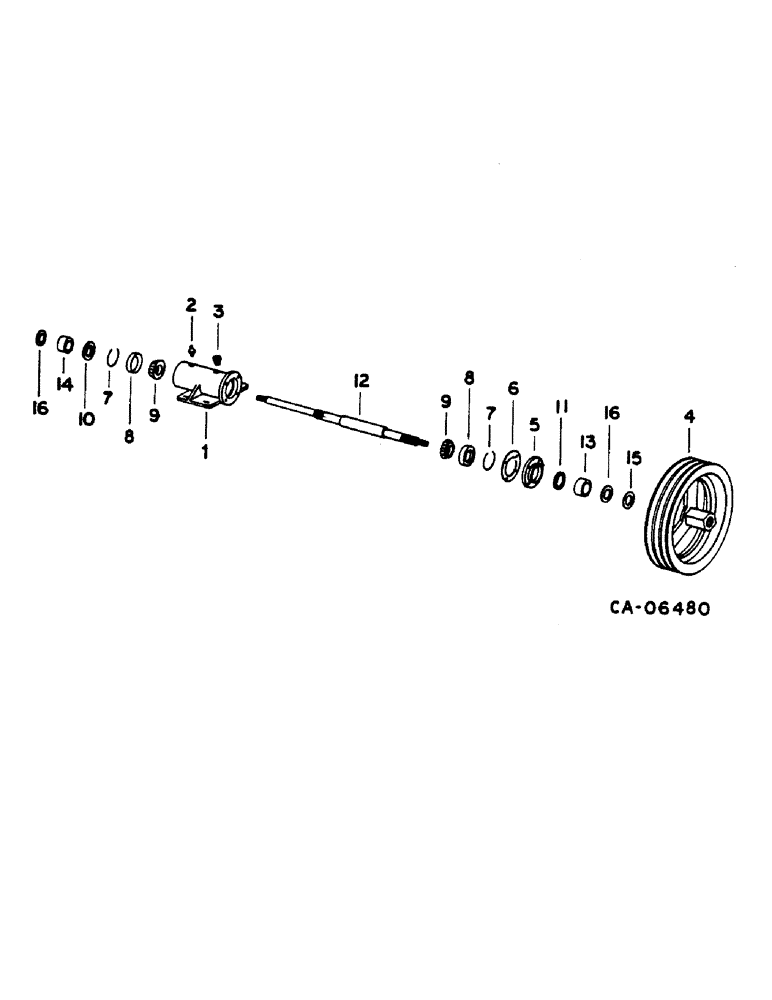

Запчасти Case IH 1460 (07-035) - JACKSHAFT BEARING BLOCK (04) - Drive Train

1

181369C1

BEARING HOUSING

BLOCK, JACKSHAFT BEARING

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

1шт.

3

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

VALVE ASSY, BEARING BLOCK BREATHER

1шт.

4

191452C2

PULLEY

JACKSHAFT DRIVEN - 14.75 IN. OD

1шт.

5

189419C1

FLANGE,2.4788" ID x 4.5" OD x 1.3"

REAR BEARING

1шт.

20617R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

1шт.

80681

LOCK WASHER,5/16"

1шт.

6

156229C1

SHIM,76.45mm ID x 111.25mm OD x 0.13mm Thk

Bearing Hub

1шт.

6

188183C1

SHIM,0.007" Thk

Bearing Hub

1шт.

6

188184C1

SHIM,0.010" Thk

Bearing Hub

1шт.

7

378691R1

RING

JACKSHAFT BRG SNAP

2шт.

8

61802C91

ROLLER BEARING,38mm ID x 17mm Thk

JACKSHAFT

2шт.

9

61801C1

BEARING CUP,63mm OD x 13.5mm W

JACKSHAFT CUP

2шт.

10

188931C1

OIL SEAL,47.63mm ID x 63.7mm OD x 8.41mm Thk

Jackshaft Bearing Hub Front, With Shoulder - Order 188930C1

1шт.

11

384386R91

OIL SEAL,42.7mm ID x 63.7mm OD x 8.33mm Thk

Jackshaft Bearing Hub Rear

1шт.

12

191565C2

SHAFT

SEPARATOR DRIVE - ORDER 1 - 1308505C1, 2 - 9413986, 2 - 25847R1

1шт.

26566R1

LOCK NUT

1 P/T LOCK TYPE 5

1шт.

21624R1

LOCK NUT,7/8"-9

7/8 HV-THN P/T H/LOCK

1шт.

25847R1

WASHER

1.062 X 2.000 X .209 HDN

1шт.

12

1308505C1

SHAFT

SEPARATOR DRIVE

1шт.

9413986

LOCK NUT,1"-8, GC

1шт.

25847R1

WASHER

1.062 X 2.000 X .209 HDN

1шт.

13

191518C2

SPACER

JACKSHAFT REAR

1шт.

14

188930C1

RING,38.05mm ID x 57.15mm OD x 27mm L

BUSHING, JACKSHAFT FRONT - ORDER 188931C1

1шт.

15

162678C1

WASHER,1 1/2" ID x 2" OD x .060" Thk

Jackshaft, Hard

3шт.

16

160191C2

WASHER

JACKSHAFT 1.5 X 2.0 X .187 HARD

1шт.
