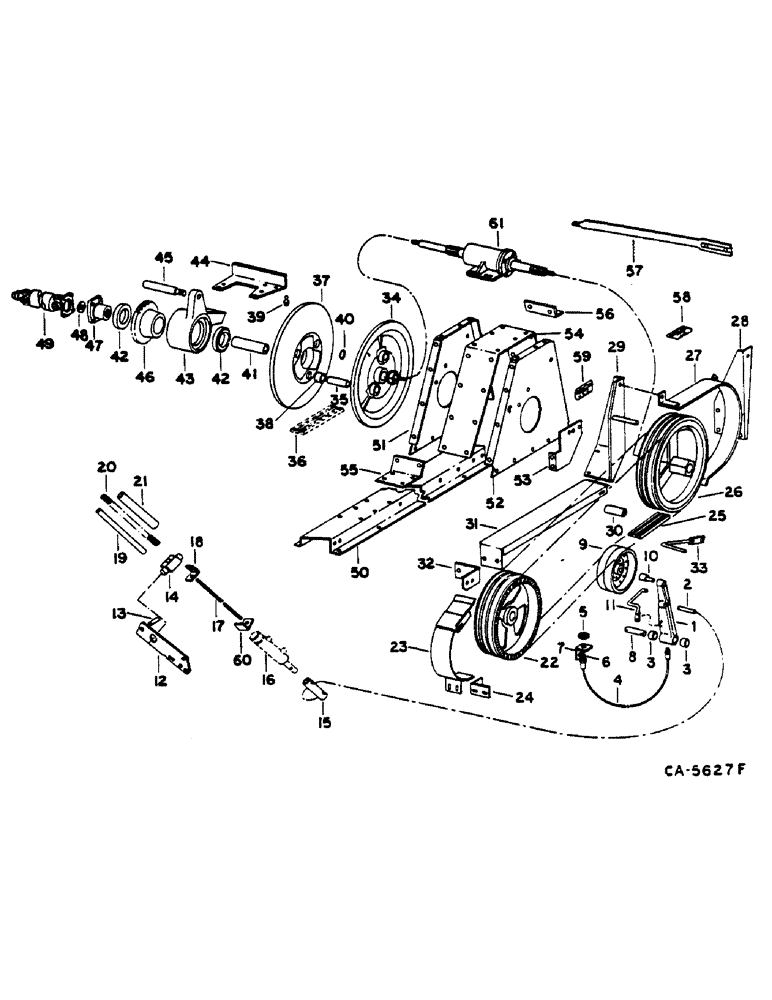

Запчасти Case IH 1460 (07-030) - SEPARATOR DRIVE (04) - Drive Train

195457C92

LEVER

ASSY, DRIVE BELT CLUTCH, WITH 2, 3

1шт.

2

195459C1

PIN

DRIVE BELT CLUTCH LEVER

1шт.

18481R1

COTTER PIN,3/16" x 1"

1шт.

21796R1

WASHER

.656 X 1.000 X .054

1шт.

3

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

DRIVE BELT CLUTCH LEVER

1шт.

4

NOT USED

1шт.

5

NOT USED

1шт.

6

NOT USED

1шт.

7

NOT USED

1шт.

8

191591C1

PIN

SEPARATOR CLUTCH ARM

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

1шт.

609836R1

WASHER

1.031 X 1.750 X .054

1шт.

9

174757C1

PULLEY

SEPARATOR BELT IDLER - 8 IN. OD

1шт.

10

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

DRIVE BELT IDLER PULLEY

1шт.

11

193284C1

ROD

CLUTCH PULLEY BELT GUIDE

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

12

194220C1

BAR

CYLINDER ANCHOR

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

1шт.

13

196676C1

SPACER

CYLINDER ANCHOR BAR

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

14

186747C1

PIVOT

SEPARATOR DRIVE ARM

1шт.

15

195432C1

TUBE,25.4 mm ID, 34.92 mm OD

BUSHING, CYLINDER EXTENSION

1шт.

121222

COTTER PIN,3/32" x 3/4"

1шт.

22320R1

CLEVIS PIN,3/8" x 1.781"

1шт.

16

CYLINDER ASSY, SEPARATOR CLUTCH - SEE FEEDER AND SEPARATOR CLUTCH CYLINDER

1шт.

17

186743C1

ROD

SEPARATOR DRIVE TIGHTENER

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

21759R1

WASHER

.656 X 2.000 X .105

1шт.

18

186748C1

BRACKET

DRIVE TIGHTENER ROD

1шт.

19

186744C1

TUBE,16.7 mm ID, 22.2 mm OD, 289.1 mm Length

DRIVE TIGHTENER INNER

1шт.

20

186745C1

SPRING

BELT TIGHTENER ROD

1шт.

21

186746C1

TUBE

DRIVE TIGHTENER OUTER

1шт.

22

191461C1

PULLEY,110mm OD

SEPARATOR DRIVE - 11 IN. OD

1шт.

23

1308774C1

GUARD ASSY.

SHIELD ASSY, DRIVE PULLEY

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

619856R1

WASHER

.406 X 1.000 X .056

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

24

NOT USED

1шт.

25

191241C1

BELT

Separator drive - 130" OC

1шт.

26

PULLEY, SEPARATOR JACKSHAFT DRIVEN - SEE JACKSHAFT BEARING BLOCK OR STRAW CHOPPER GEAR CASE

1шт.

27

191952C2

SHIELD

ASSY, DRIVEN PULLEY

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

28

181168C1

SUPPORT

BELT GUIDE OUTER - FOR COMBINES W/STRAW CHOPPER

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

29

181169C1

SUPPORT ASSY.

DRIVE BELT GUIDE - FOR COMBINES W/STRAW CHOPPER

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

18481R1

COTTER PIN,3/16" x 1"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

495-11053

WASHER,1/2", SAE

1шт.

30

HOSE, SEPARATOR CHANNEL - USE 4.5 IN. OF 1/2 IN. HOSE FROM BULK LENGTH

1шт.

526602R1

HOSE,12.7mm ID x 15240mm L

Bulk Length

1шт.

31

191961C1

SUPPORT

DRIVE BELT GUIDE

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

32

193686C1

ANGLE

BELT GUIDE CHANNEL SUPPORT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

33

194901C1

ROD

SEPARATOR CLUTCH BELT SUPPORT

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

34

193622C92

PULLEY ASSY.

ROTOR DRIVE STATIONARY - 17.5 IN. OD, WITH 35

1шт.

35

191544C2

PIN,28.48mm OD x 127mm L

STATIONARY DRIVE PULLEY

3шт.

36

BELT, ROTOR VARIABLE DRIVE, SEE ROTOR DRIVE

1шт.

37

193620C92

PULLEY ASSY.

ROTOR DRIVE VARIABLE - 17.5 IN. OD, WITH 38

1шт.

38

194665C1

BUSHING

VARIABLE DRIVE PULLEY

3шт.

39

219-86

LUBE NIPPLE,1/8" NPTF

Straight, Self-Tap

2шт.

40

382432R1

O-RING,1.984" ID x 0.139" Width

ROTOR DRIVE PULLEY

2шт.

41

191549C1

SLEEVE

ROTOR JACKSHAFT

1шт.

42

194654C91

BALL BEARING,2.75" ID x 4.481" OD x 0.87"

JACKSHAFT THRUST

2шт.

43

194394C1

HUB

FITTING, VARIABLE PULLEY FEMALE

1шт.

44

188309C2

SUPPORT

VARIABLE PULLEY LIMIT SWITCH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

45

194496C2

LARGE PIN

PIN, LARGE STUD, VARIABLE STOP

1шт.

280954

NUT,3/4"-10, G5

1шт.

46

194464C2

SPROCKET

VARIABLE PULLEY MALE - 25T

1шт.

47

191542C2

SPLINED COUPLING,12T

UNIVERSAL JOINT

1шт.

48

238633R1

WASHER,23.11mm ID x 52.32mm OD x 4.55mm Thk

SEPARATOR JACKSHAFT

1шт.

49

191595C91

JOINT ASSY.

UNIVERSAL DRIVE

1шт.

1300502C1

KIT

ASSY, JOURNAL AND BEARING

1шт.

1300501C1

U-BOLT,3/8" - 24 x 1.66" W x 1.40" L

2шт.

120369

NUT,3/8"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

208491R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

1шт.

131100

LOCK WASHER,7/16"

1шт.

50

181333C1

SUPPORT ASSY.

JACKSHAFT - FOR COMBINES W/STRAW CHOPPER

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

120384

WASHER,1/2"

1шт.

51

181165C1

SUPPORT ASSY.

SEPARATOR JACKSHAFT L.H. - FOR COMBINES W/STRAW CHOPPER

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120384

WASHER,1/2"

1шт.

52

181166C1

SUPPORT

SEPARATOR JACKSHAFT R.H. - FOR COMBINES W/STRAW CHOPPER

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120384

WASHER,1/2"

1шт.

53

183153C91

SUPPORT

JACKSHAFT BOTTOM, WITH 59

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

120384

WASHER,1/2"

1шт.

54

181167C1

SUPPORT

JACKSHAFT TOP - FOR COMBINES W/STRAW CHOPPER

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

20601R1

WASHER

.531 X 1.250 X .105

1шт.

55

181164C1

SUPPORT

SEPARATOR JACKSHAFT - FOR COMBINES W/STRAW CHOPPER

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

120384

WASHER,1/2"

1шт.

20601R1

WASHER

.531 X 1.250 X .105

1шт.

56

181172C1

SUPPORT

JACKSHAFT SUPPORT REAR - FOR COMBINES W/STRAW CHOPPER

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

120384

WASHER,1/2"

1шт.

20601R1

WASHER

.531 X 1.250 X .105

1шт.

57

181171R1

ROD

SEPARATOR JACKSHAFT SUPPORT - FOR COMBINES W/STRAW CHOPPER

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

425-1110

NUT,5/8"-18, G5

1шт.

120384

WASHER,1/2"

1шт.

25742R1

WASHER

.531 X .750 X .105

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

22770R1

WASHER

.531 X 1.500 X .164

1шт.

58

188200C1

PRODUCT GRAPHIC

CAUTION

1шт.

59

188186C1

PRODUCT GRAPHIC

CAUTION - TWO-SPEED GEAR CASE

1шт.

60

186749C1

BRACKET

SEPARATOR DRIVE TIGHTENER ROD

1шт.

18556R1

LOCK PIN,1/4" x 3/4", Slotted

1шт.

61

BLOCK, JACKSHAFT BEARING - SEE JACKSHAFT BEARING BLOCK OR STRAW CHOPPER GEAR CASE

1шт.
