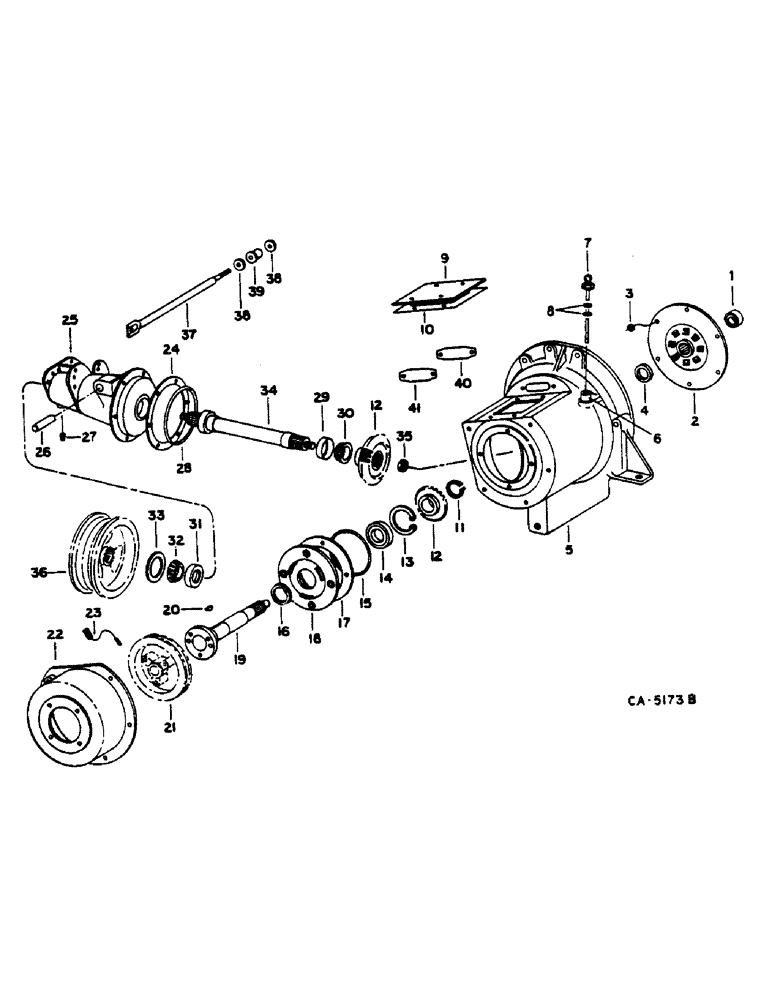

Запчасти Case IH 1460 (07-027) - POWER TAKE-OFF DRIVE (04) - Drive Train

1

195349C1

BUSHING

PTO FLYWHEEL

1шт.

2

188013C91

PLATE ASSY.,354.33mm OD

PTO DRIVE

1шт.

2

188013C91R

REMAN-CLUTCH PLATE

PTO DRIVE

1шт.

2

188013C91C

CORE-CLUTCH PLATE

Return Number

1шт.

26316R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

6шт.

3

406579R1

WASHER

PTO DRIVE PLATE

6шт.

4

173559C91

SEAL

PTO DRIVE SHAFT

1шт.

5

188075C92

HOUSING

ENGINE PTO, WITH 6

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

SCREW, 5/8 X 4-1/2 ZND HEX HD CAP

1шт.

25710R1

WASHER

.531 X 1.06 X .134 ZND HARD

1шт.

23276R1

WASHER

.656 X 2 X .164 ZND

2шт.

6

188072C1

TUBE,25.4 mm OD, 127 mm Length

ENGINE PTO HOUSING OIL CAGE

1шт.

7

188073C91

DIPSTICK

CAGE ASSY, ENGINE PTO HOUSING OIL, WITH 8

1шт.

8

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

9

192275C1

COVER

BAR, PTO HOUSING

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

10

191830C1

GASKET

PTO HOUSING COVER

1шт.

11

23483R1

SNAP RING,#200, Ext

PTO drive shaft

1шт.

12

192801C1

GEAR-SET

SEPARATOR DRIVE - 43T AND 28T - MATCHED SET

1шт.

13

27822R1

SNAP RING,4.78", Int, #475

PTO DRIVE SHAFT BRG HUB

1шт.

14

ST297

BEARING, BALL

PTO DRIVE SHAFT HUB

1шт.

15

876086C1

O-RING,0.139" Thk x 6.48" ID, -260, Cl 8, 90 Duro

1шт.

16

173133C91

OIL SEAL,64.26mm ID x 92.15mm OD x 11mm Thk

PTO DRIVE SHAFT HOUSING

1шт.

17

188196C1

SHIM KIT

SHIM, PTO DRIVE SHAFT HOUSING

1шт.

18

192817C2

FLANGE,92.02 mm ID x 241.249 mm OD x 54.61 mm

PTO DRIVE SHAFT BEARING

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

1шт.

19

192816C1

SHAFT

PTO DRIVE

1шт.

20

57388D

WOODRUFF KEY,#128, 5/16" x 2 1/8", HT

5/16 X 2-1/8 WOODRUFF

1шт.

21

PULLEY, AUXILIARY PUMP DRIVE - SEE AUXILIARY PUMP DRIVE - SEE AUXILIARY HYDRAULIC PUMP

1шт.

22

1303141C1

HOUSING

HYDROSTATIC PUMP

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1шт.

23

1301241C1

SENSOR

CONVERTER, RELUCTANCE PICKUP

1шт.

107827

NUT,Stamped, 3/4"-16

3/14 ZND STAMPED

1шт.

24

188195C1

SHIM KIT

SHIM, SEPARATOR DRIVE HOUSING

1шт.

25

195461C93

HOUSING

ASSY, SEPARATOR DRIVE, WITH 26

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

1шт.

26

195439C2

PIN,25.29mm OD x 101.6mm L

SEPARATOR DRIVE HOUSING

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

1шт.

609836R1

WASHER

1.031 X 1.75 X .054 ZND

1шт.

27

50057K

PLUG

SEPARATOR DRIVE AND ENGINE PTO HOUSING MAGNETIC

2шт.

28

188279C1

O-RING,0.139" Thk x 7.984" ID, -266, Cl 6, 90 Duro

1шт.

29

ST987

BEARING CUP

BEARING, SEPARATOR DRIVE HOUSING REAR CUP

1шт.

30

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

SEPARATOR DRIVE HOUSING REAR

1шт.

31

376463C1

BEARING CUP

SEPARATOR DRIVE HOUSING FRONT CUP

1шт.

32

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

SEPARATOR DRIVE HOUSING FRONT CONE

1шт.

33

194051C1

SEAL,63.42mm ID x 82.8mm OD x 11mm Thk

SEPARATOR DRIVE HOUSING

1шт.

34

191459C1

SHAFT ASSY.

SEPARATOR DRIVE

1шт.

25550R1

WASHER,1 1/16" x 2" x .219", HDN

1шт.

23261R1

LOCK NUT,1"-14, GC

1 NF P/T LOCK TYPE 5

1шт.

35

194737C1

LOCK NUT

1-14 ZND SECURITY LOCK

1шт.

36

PULLEY, SEPARATOR DRIVE, SEE SEPARATOR DRIVE

1шт.

37

194086C1

ROD

SEPARATOR DRIVE ENGINE

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

1шт.

9413970

LOCK NUT,5/8"-11, GB

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

120384

WASHER,1/2"

1шт.

38

107813R1

WASHER

SEPARATOR DRIVE ENGINE SNUBBER

2шт.

39

194915C1

INSULATOR

SEPARATOR DRIVE SNUBBER PIPE

1шт.

40

185057C1

GASKET

BOLT HOLE

1шт.

41

185056C1

COVER

BOLT HOLE

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.
