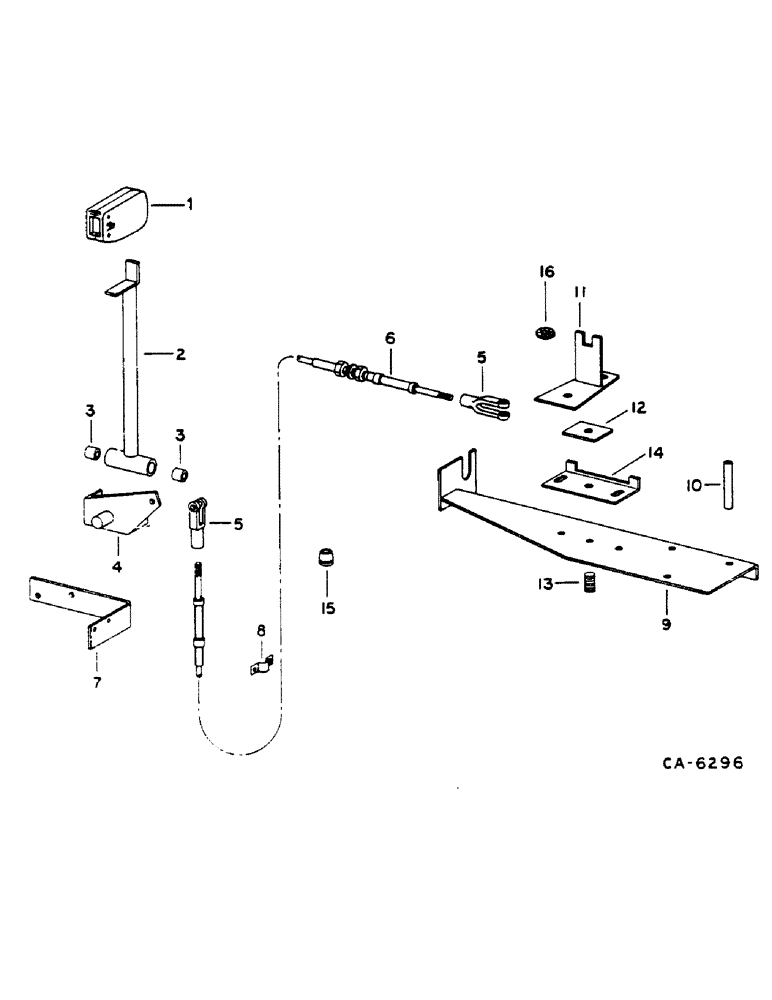

Запчасти Case IH 1460 (07-022) - PROPULSION CONTROL (04) - Drive Train

1

1301180C91

HANDLE

MULTI-CONTROL

1шт.

28002R1

HEX SOC SCREW,#6 - 32 x 1/2"

1шт.

2

1311071C91

LEVER ASSY.

MULTI-CONTROL HANDLE, WITH 3

1шт.

19876R1

PIN

1/2 X 3.438 PLN UHDN CLEVIS

1шт.

137185

COTTER PIN,1/8" x 1"

1шт.

3

165685C1

BUSHING

MULTI-CONTROL LEVER

2шт.

4

193275C1

SUPPORT

HYDROSTATIC CONTROL LEVER

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

5

144242

CLEVIS

5/16-24 ZND ADJ ROD END

2шт.

120368

NUT,5/16"-24, G5

1шт.

121741

FENDER

5/16 X .940 CLEVIS

1шт.

121222

COTTER PIN,3/32" x 3/4"

1шт.

6

193280C1

CABLE

HYDROSTATIC DRIVE CONTROL

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

7

193281C1

ANGLE

HYDROSTATIC DRIVE CONTROL CABLE

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

8

195593C1

CLAMP

HYDROSTATIC DRIVE CONTROL CABLE UPPER

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

9

1312330C1

SUPPORT ASSY.

PUMP CONTROL FOR SUNDSTRAND

1шт.

9

1312332C1

SUPPORT ASSY.

PUMP CONTROL, FOR EATON

1шт.

10

600411R1

SPACER,3/8" Pipe x 2 3/4"

HYDROSTATIC PUMP CONTROL, FOR SUNDSTRAND

3шт.

10

14233L

SPACER,3/8" Pipe x 2 7/8"

HYDROSTATIC PUMP CONTROL, FOR EATON

3шт.

180165

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

1шт.

11

151917C94

ARM ASSY.

PUMP CONTROL ACTUATING

1шт.

22019R1

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 2

BOLT, 7/16 X 3-1/4 TYPE 8

1шт.

231-4117

LOCK NUT,7/16"-14, GB

7/16 CAD P/T LOCK TYPE 5

1шт.

607891R1

WASHER

.469 X 1.000 X .054

1шт.

12

150627C1

FRICTION WASHER

PUMP CONTROL ARM FRICTION

1шт.

13

28395H

SPRING

PUMP CONTROL ARM

1шт.

14

1312472C1

SUPPORT

PUMP CONTROL ARM

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

30282R1

WASHER,M10 x 20 x 2

1шт.

15

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

HYDROSTATIC CABLE

2шт.

16

159688R91

THRUST BEARING

PUMP CONTROL ACTUATING ARM

1шт.

25535R1

WASHER

.469 X .922 X .065 PHC HHN

1шт.
