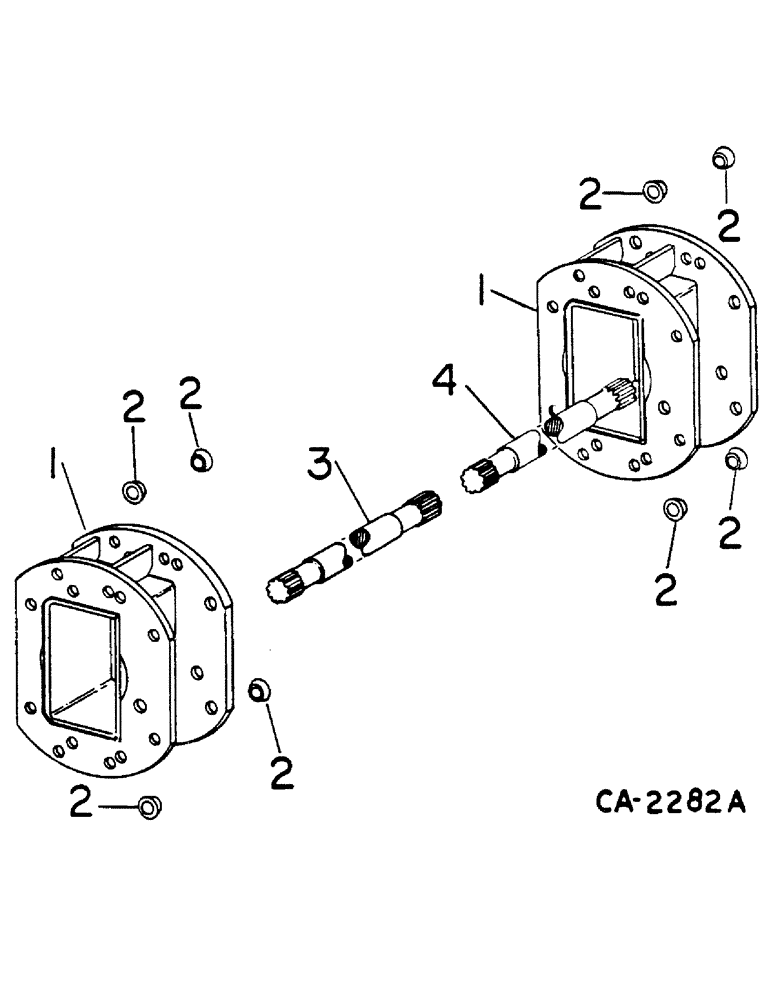

Запчасти Case IH 1460 (07-017) - MAIN AXLE EXTENSION (04) - Drive Train

1

177345C1

EXTENSION

ASSY, DRIVE AXLE

2шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

1шт.

21610R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

1шт.

22049R1

NUT,3/4"-10, G8

1шт.

131167

WASHER, LOCK,3/4"

1шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 X 1.500 X .134 HDN

1шт.

2

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

PIN, DOWEL, EXTENSION END PLATE

8шт.

3

193993C1

SHAFT

L.H. AXLE DRIVE

1шт.

4

193994C1

SHAFT

R.H. AXLE DRIVE

1шт.
