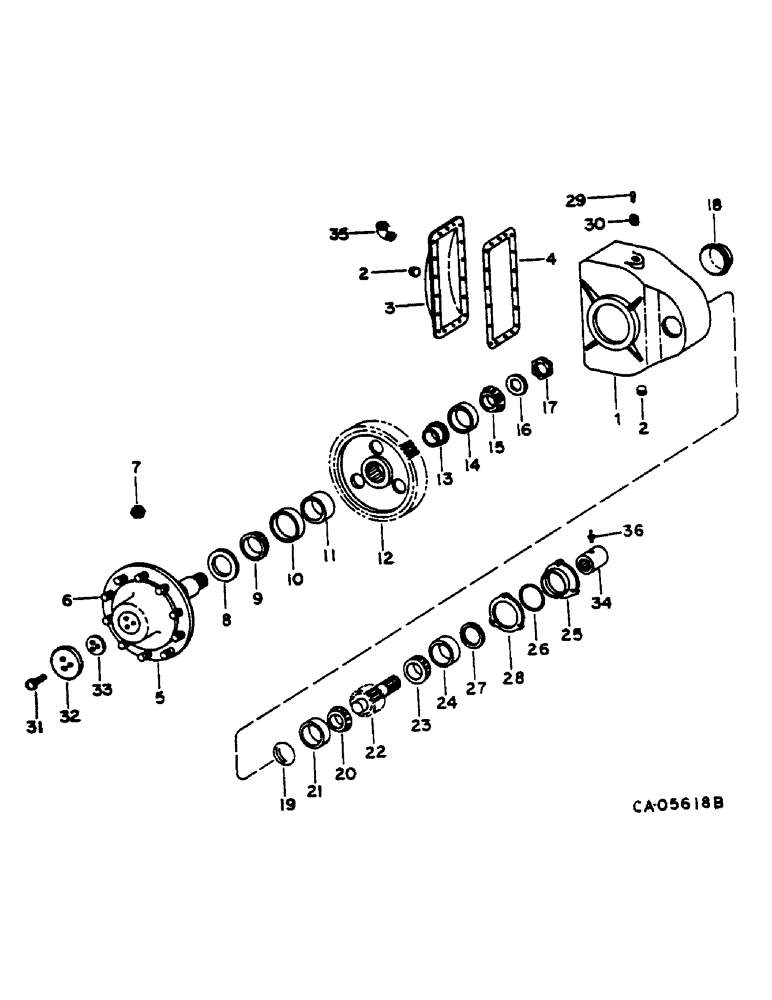

Запчасти Case IH 1460 (07-014) - FINAL DRIVE (04) - Drive Train

DRIVE ASSY, FINAL

2шт.

7

429-1112

NUT,3/4"-16, G5

20шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

1шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

1шт.

24771R1

LOCK WASHER,3/4"

1шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 X 1.500 X .134 HDN

1шт.

1

401901R3

HOUSING

FINAL DRIVE

2шт.

2

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

3/4-14 AUTO SQ-HD PIPE

6шт.

3

403894R2

COVER ASSY

HOUSING

2шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

1шт.

4

196435C1

GASKET

FINAL DRIVE HOUSING COVER

2шт.

5

63284C92

SHAFT

FINAL DRIVE, WITH 6, 31 - 33

2шт.

6

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

WHEEL

20шт.

25548R1

WASHER

.812 X 1.500 X .219 PHC HDN

1шт.

8

401905R91

OIL SEAL,98.93mm ID x 152.58mm OD x 15.88mm Thk

OUTER BEARING CAGE

2шт.

9

283444C91

BEARING ASSY,85.03mm ID x 46.67mm W

ASSY, SHAFT ROLLER

2шт.

10

18241H

BEARING, CUP,150.09mm OD x 36.51mm W

ASSY, SHAFT ROLLER CUP

2шт.

11

401906R1

SPACER

GEAR OUTER

2шт.

12

401907R1

GEAR

DRIVE - 66T

2шт.

13

401908C1

SPACER

FINAL DRIVE

2шт.

14

ST967

BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"

SHAFT INNER CUP

2шт.

15

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

ASSY, SHAFT INNER

2шт.

16

403896R1

WASHER

WASHER, FINAL DRIVE

2шт.

17

147030R1

SLOTTED NUT

2-13 NS THREAD

2шт.

17233R1

COTTER PIN,1/8" x 2 1/2"

1шт.

18

403895R1

COVER

MAIN SHAFT

2шт.

19

NOT USED

1шт.

20

401911R91

BEARING ASSY,44.45mm ID x 31.75mm W

ASSY, PINION SHAFT OUTER

2шт.

21

61012R1

BEARING, CUP,93.66mm OD x 25.4mm W

PINION SHAFT OUTER CUP

2шт.

22

401912R1

SHAFT

PINION

2шт.

23

M53320

BEARING ASSY

ASSY, INNER CONE

2шт.

24

50320R1

BEARING CUP

INNER CUP

2шт.

25

401913R2

CAGE

PINION INNER BEARING

2шт.

26

257642R1

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

2шт.

27

401914R91

OIL SEAL,54.28mm ID x 85.22mm OD x 11.13mm Thk

BEARING CAGE

2шт.

26307R1

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

28

401915R1

SHIM

PINION INNER BEARING .003

1шт.

28

401916R1

SHIM

PINION INNER BEARING .005

1шт.

28

401917R1

SHIM

PINION INNER BEARING .007

1шт.

28

184033C1

SHIM

PINION INNER BEARING .030

1шт.

29

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

ASSY, OIL

4шт.

30

21276R1

ADAPTER,3/4" NPT Male x 1/8" NPT Fem

ADAPTER, REDUCER 3/4 X 1/8 PIPE

2шт.

31

875933C1

BOLT,Hex, 5/8" - 11 x 2 1/4", Drilled

AXLE RETAINING 5/8 X 2.50

6шт.

32

121797C1

WASHER

FINAL DRIVE SHAFT

2шт.

33

121798C1

SHIM

FINAL DRIVE SHAFT .015

1шт.

33

121799C1

SHIM

FINAL DRIVE SHAFT .018

1шт.

33

121800C1

SHIM

FINAL DRIVE SHAFT .021

1шт.

34

401875R4

SLEEVE

AXLE DRIVE SHAFT

2шт.

27653R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

1шт.

21864R1

COTTER PIN

.114 DIA. S TYPE COTTER

1шт.

654049R1

LOCK NUT

3/8-16 PLN SLT-HEX

1шт.

35

141621

ELBOW,90 Degree, 3/4" NPT Street

ELBOW, 3/4 90 DEG. STREET, FOR RICE

1шт.

36

87414

LUBE NIPPLE,1/4" - 28

1шт.
