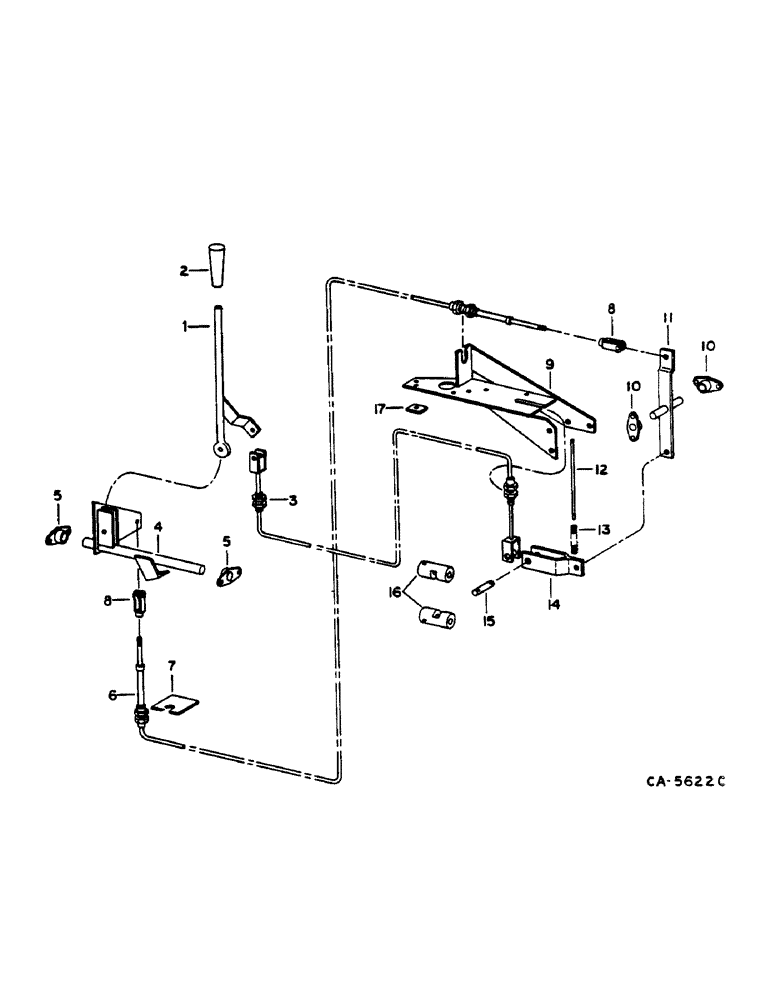

Запчасти Case IH 1460 (07-010) - TRANSMISSION GEAR SHIFT AND LINKAGE (04) - Drive Train

1

1312368C1

LEVER ASSY.

GEAR SHIFT

1шт.

25489R1

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 8

1шт.

9413992

LOCK NUT,1/4"-20, GC

1шт.

2

198934C1

HANDLE

GEAR SHIFT LEVER

1шт.

3

188290C1

BOWDEN CONTROL

CABLE ASSY, TRANSMISSION LINKAGE

1шт.

121223

COTTER PIN,1/16" x 3/4"

1шт.

22910R1

HEADED PIN

1/4 X 1-1/4 ZND STD-HD

1шт.

4

1301273C1

PIVOT ASSY.

SPARE PART GEAR SHIFT

1шт.

5

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, GEAR SHIFT PIVOT

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

6

196658C1

CABLE

ASSY, SHIFT RAIL CONTROL - 112 IN.

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

7

196511C1

LARGE PLATE

PLATE, LARGE SUPPORT, CABLE NUT

1шт.

8

144243

CLEVIS

3/8-24 C-Z ADJ ROD END

2шт.

121222

COTTER PIN,3/32" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

3/8 X 1.060 CLEVIS

1шт.

9

194442C1

SUPPORT ASSY.

SHIFT LINKAGE

1шт.

10

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING ASSY, PIVOT SUPPORT

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZND SLT-TRUSS-HD

1шт.

11

194439C1

LEVER ASSY.

TRANSMISSION SHIFT LOWER

1шт.

12

194445C1

ROD

SPRING ANCHOR

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

21496R1

WASHER

.344 X .750 X .105

1шт.

13

47822D

SPRING

TRANSMISSION SHIFTING RETRACTOR

1шт.

14

194437C1

LINK

SHIFT RAIL CONTROL

1шт.

121222

COTTER PIN,3/32" x 3/4"

1шт.

15

195108C1

PIN

3/4 X 2-15/16 SHIFT LUG

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

1шт.

16

192689C1

PIN,34.93mm OD x 73.7mm L

SHIFT RAIL

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

17

520927R1

BAR

LINKAGE SUPPORT

3шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120394

WASHER,3/8", SAE

1шт.
