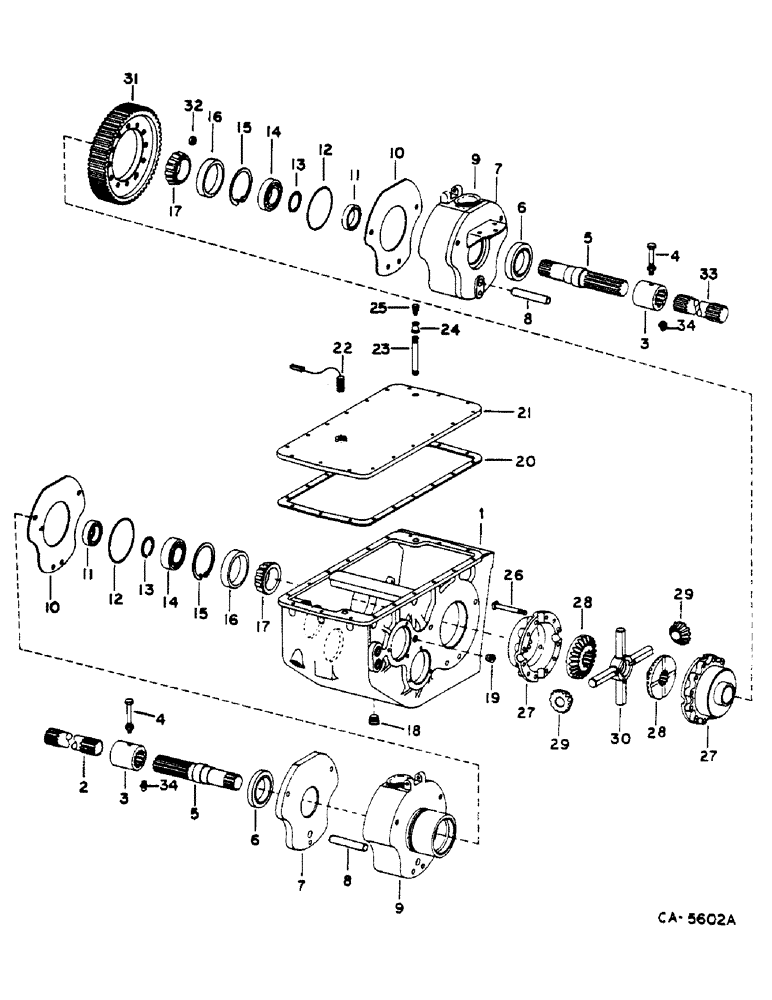

Запчасти Case IH 1460 (07-002) - TRANSMISSION, DIFFERENTIAL SHAFT AND GEARS (04) - Drive Train

1

401873R2

HOUSING

CASE, TRANSMISSION

1шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

1шт.

131165

LOCK WASHER,5/8"

1шт.

2

1309012C1

SHAFT

FINAL DRIVE L.H. - 27.4 IN.

1шт.

2

1309011C1

SHAFT

FINAL DRIVE L.H. - 32.6 IN., FOR RICE TRACK

1шт.

3

401875R4

SLEEVE

AXLE DRIVE SHAFT

2шт.

4

27653R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

2шт.

654049R1

LOCK NUT

3/8-16 PLN SLT-HEX

1шт.

21864R1

COTTER PIN

.114 DIA. S TYPE COTTER

1шт.

5

184178C1

SHAFT

DIFFERENTIAL

2шт.

6

SEAL, BRAKE ADAPTER HOUSING COVER - SEE MASTER AND PARKING BRAKES

2шт.

7

COVER ASSY, BRAKE ADAPTER HOUSING - SEE MASTER AND PARKING BRAKES

2шт.

8

PIN, 7/8 X 5 DOWEL - SEE MASTER AND PARKING BRAKES

2шт.

9

HOUSING, BRAKE - SEE MASTER AND PARKING BRAKES

2шт.

10

401898R1

SHIM

BRAKE HOUSING .003

1шт.

10

401899R1

SHIM

BRAKE HOUSING .005

1шт.

10

401900R1

SHIM

BRAKE HOUSING .007

1шт.

11

184072C1

OIL SEAL,55.88mm ID x 76.2mm OD x 9.5mm Thk

BRAKE HOUSING OIL

2шт.

12

O-RING - SEE MASTER AND PARKING BRAKES

2шт.

13

358059R1

SNAP RING

DIFFERENTIAL SHAFT SNAP

2шт.

14

ST265

BALL BEARING,55mm ID x 100mm OD x 21mm Thk

DIFFERENTIAL SHAFT

2шт.

15

289134R1

SNAP RING,3.938", Int, #393

brake hsg

2шт.

16

ST981

BEARING CONE,112.71mm OD x 19.05mm W

CUP DIFFERENTIAL

2шт.

17

ST2096

BEARING ASSY,73.03mm ID x 25.4mm W

DIFFERENTIAL

2шт.

18

320185C1

PLUG

CONE DIFFERENTIAL

1шт.

19

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

3/4-14 AUTO SQ-SOC PIPE

1шт.

20

401860R1

GASKET

TRANSMISSION CASE COVER

1шт.

21

184167C1

COVER ASSY

TRANSMISSION CASE

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

22

1301241C1

SENSOR

CONVERTER, RELUCTANCE PICKUP

1шт.

107827

NUT,Stamped, 3/4"-16

3/14 ZN STAMPED

1шт.

23

121210

PIPE,Nipple, 1/4" NPT x 4 1/2"

1шт.

24

105420

REDUCER FITTING

COUPLING, 1/4 X 1/8 PIPE

1шт.

25

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

VENT, CASE OIL

1шт.

26

404171R1

BOLT,1/4" - 20 x 4"

DIFFERENTIAL CASE

12шт.

27

404081R1

CASE ASSY.

DIFFERENTIAL

1шт.

28

404084C1

GEAR, DIFFERENTIAL BEVEL - 28T

2шт.

29

361061R3

PINION

GEAR, PINION DIFFERENTIAL BEVEL - 15T

4шт.

30

393637R2

DIFF. SPIDER

1шт.

31

404085R1

GEAR

DIFFERENTIAL DRIVEN - 66T

1шт.

32

381368R1

NUT,Hex, 1/2" - 20, Gr 8

12шт.

33

402725R2

SHAFT

FINAL DRIVE R.H. - 14.08 IN.

1шт.

33

184222C1

SHAFT

FINAL DRIVE R.H. - 19.57 IN., FOR RICE TRACK

1шт.

34

87414

LUBE NIPPLE,1/4" - 28

1шт.
