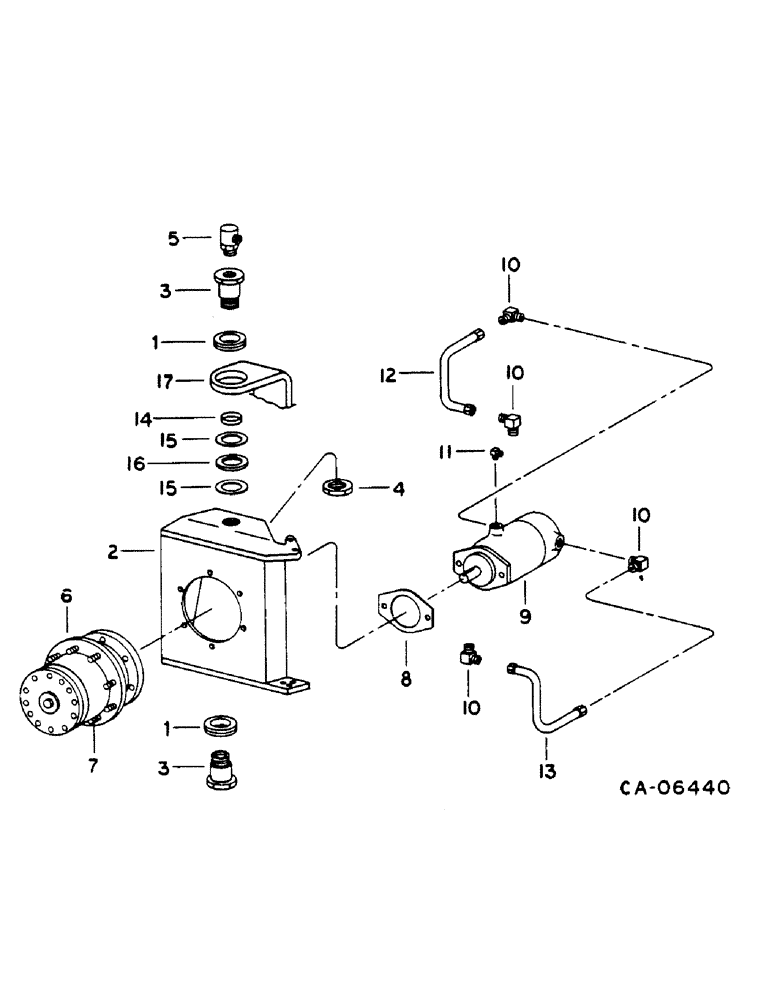

Запчасти Case IH 1460 (15-021) - DRIVE ASSY, POWER GUIDE WHEELS Wheels & Traction

1

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

BEARING, SPHERICAL RADIAL

4шт.

2

1310550C1

SUPPORT ASSY.

L.H. BOX

1шт.

2

1310549C1

SUPPORT ASSY.

R.H. BOX

1шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

1шт.

25528R1

NUT,5/8"-11, G8

1шт.

3

1310551C1

BOLT,Hex, 1 5/8" - 12 x 2.73"

CENTRE PORTED PIVOT

4шт.

4

1310553C1

JAM NUT

PORTED PIVOT BOLT

4шт.

5

1310552C1

ELBOW

90 DEG. HI-PRESSURE SWIVEL

4шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD TUBE, CLASS 6

1шт.

6

1310554C91

CASE

PLANITARY GEAR

2шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

7

1310563C1

STUD,5/8" - 18 x 2.15"

BOLT, STEERING TYRE MOUNTING

18шт.

25676R1

NUT,5/8"-18, G8

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

1шт.

8

1310555C1

GASKET

HYD MOTOR

2шт.

9

1310556C91

MOTOR, ELECTRIC

ASSY, FIXED AXIAL POSITION

2шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1шт.

495-11053

WASHER,1/2", SAE

1шт.

10

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

3/4 C-Z HYD ADJ 90 DEG.

8шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD TUBE, CLASS 6

1шт.

11

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z HYD ADJ 90 DEG.

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE, CLASS 6

1шт.

12

1310558C1

TUBE

ASSY, MOTOR LOWER L.H.

1шт.

12

1310581C1

TUBE

SPARE PART ASSY, MOTOR LOWER R.H.

1шт.

13

1310559C1

TUBE

ASSY, MOTOR UPPER L.H.

1шт.

13

1310582C1

TUBE

ASSY, MOTOR UPPER R.H.

1шт.

14

1310560C1

THRUST WASHER

THRUST WASHER

2шт.

15

890477C1

WASHER

4шт.

16

1310562C1

THRUST WASHER

THRUST

2шт.

17

EXTENSION, AXLE - SEE POWER GUIDE WHEEL

1шт.
