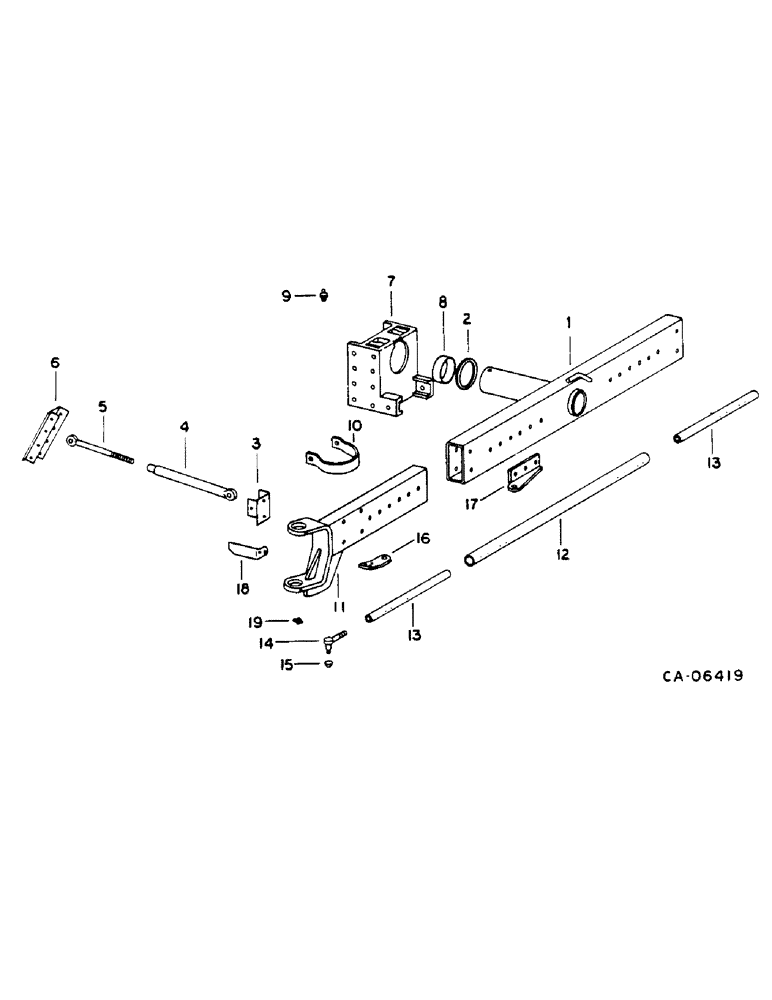

Запчасти Case IH 1460 (15-018) - AXLE POWER GUIDE WHEELS, AXLE, EYE-BOLTS AND RELATED PARTS Wheels & Traction

1302522C2

STEERING AXLE

ASSY, STEERING CENTRE

1шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

Course threads

1шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

2

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

STEERING AXLE PIVOT

4шт.

3

183494C1

SUPPORT ASSY.

ROD REAR

2шт.

4

181444C1

TIE-ROD,1" - 8

AXLE REAR EYE

2шт.

23313R1

HEADED PIN,7/8" x 3 1/2"

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

1шт.

9849633

NUT,1"-8, G5

1шт.

5

181442C1

BOLT

AXLE FRONT EYE

2шт.

Q964

HEADED PIN,7/8" x 2.734"

7/8 X 3 PLN-HD TYPE 1

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

1шт.

6

183491C1

SUPPORT ASSY.

ROD FRONT

2шт.

7

186599C92

SUPPORT ASSY.

AXLE PIVOT, WITH 8

1шт.

24896R1

BOLT,Hex, 3/4" - 10 x 5", Gr 8

1шт.

25360R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

25712R1

WASHER

.812 X 1.500 X .179 HDN

1шт.

8

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

PIVOT SUPPORT

1шт.

9

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 STR LUB

1шт.

10

1302625C1

CHANNEL

COMBINE TOW

1шт.

24878R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

1шт.

11

1310547C1

SUPPORT ASSY.

EXTENSION

2шт.

12

1310568C1

TUBE

TIE ROD OUTER

1шт.

142680H

BOLT (SPREADER),Hex, 3/8"-16 x 2 1/2", G8

1шт.

9413979

LOCK NUT,3/8"-16, GC

1шт.

120394

WASHER,3/8", SAE

1шт.

13

1310569C1

ROD

TIE ROD INNER

2шт.

14

1310570C1

END

TIE ROD

2шт.

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

1шт.

1310561C1

WASHER

.812 X 1.312 X .25 HARD

1шт.

1310571C1

JAM NUT

TIE ROD END

1шт.

15

1310572C1

RUBBER SEAL

TIE ROD END

2шт.

16

1310573C1

SUPPORT ASSY.

STEERING MOUNT PLATE

1шт.

20105R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

1шт.

9412231

NUT

5/8 PHC P/T LOCK TYPE 8

1шт.

17

1310574C1

SUPPORT ASSY.

STEERING BRACKET

1шт.

18

1310567C1

BLADE

SCRAPER, MUD L.H.

1шт.

18

1310557C1

SPACER

BLADE, SCRAPER, MUD R.H.

1шт.

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

9412230

LOCK NUT

1/2 PHC P/T LOCK TYPE 8

1шт.

19

87414

LUBE NIPPLE,1/4" - 28

4шт.
