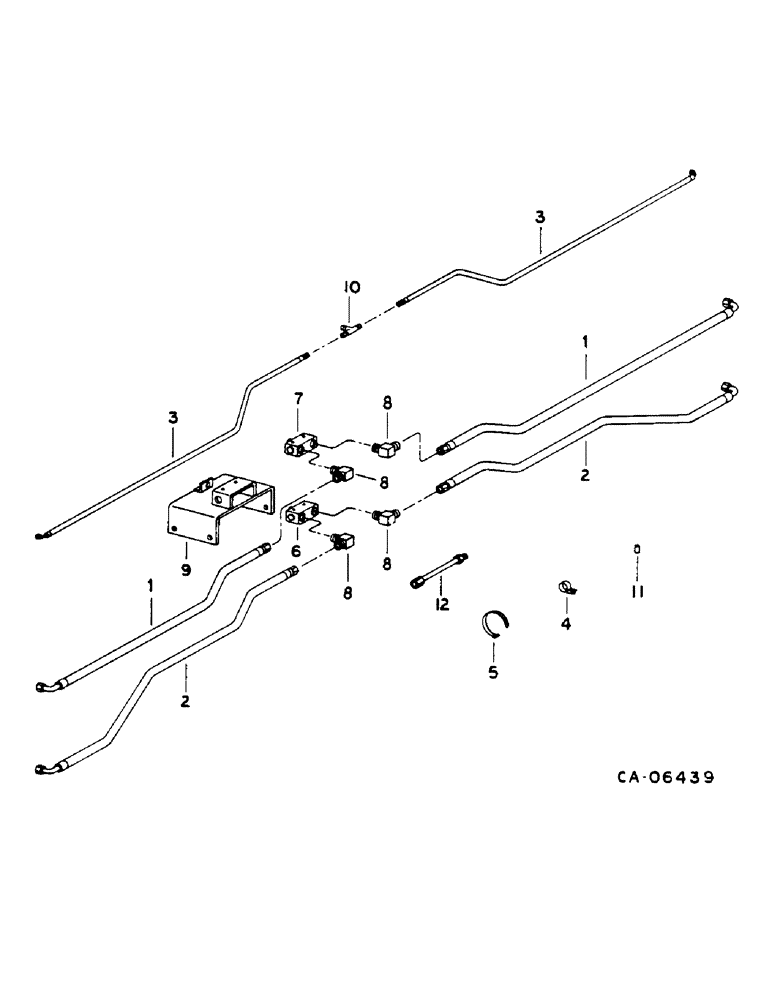

Запчасти Case IH 1460 (15-016) - AXLE HYDRAULIC HOSES AND POSITRACTION VALVE Wheels & Traction

1

1301614C1

HOSE

WHEEL MOTOR - 45 IN.

2шт.

2

1301615C1

HOSE ASSY.

SPARE PART WHEEL MOTOR - 58 IN.

2шт.

3

1301496C1

HOSE ASSY.

SPARE PART WHEEL MOTOR - 72 IN.

2шт.

4

299565C1

CLAMP

.688 DIA. ZNP COATED

2шт.

4

28149R1

CLAMP,1 1/4", Insul, 1/2" Bolt

4шт.

20614R1

CLEVIS PIN,9.53mm OD x 34.14mm L

1шт.

9413977

NUT

5/16 PHC P/T LOCK TYPE 8

1шт.

120393

BEARING WASHER,5/16", SAE

1шт.

5

533939R1

STRAP

HYD HOSE TIE

4шт.

6

1310543C1

LOCK VALVE

SPARE PART ASSY, FORWARD POSITRACTION

1шт.

7

1310544C1

LOCK VALVE

ASSY, REVERSE

1шт.

25958R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

1шт.

8

1310580C1

ELBOW UNION

Union Elbow 1-1/16-12 DEG. HYD

4шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD TUBE, CLASS 6

1шт.

9

1310546C1

SUPPORT ASSY.

POSITRACTION VALVE

1шт.

10

1310575C1

TEE

SPARE PART HYD BULKHEAD

1шт.

11

27633R1

SPACER,3/8" X-Strng Pipe x 1 1/4"

2шт.

12

1301911C1

HYD TUBE

DRIVE PRESSURE - USED W/120 IN. AXLE

4шт.
