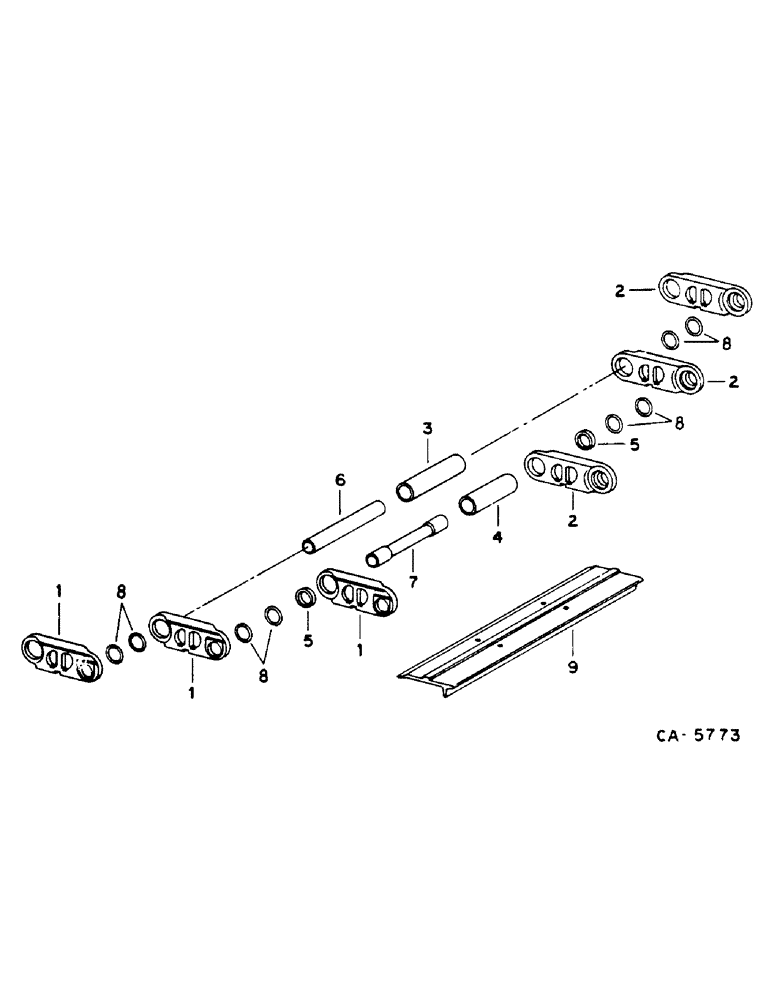

Запчасти Case IH 1460 (15-011) - TRACK CHAIN Wheels & Traction

196029C91

CHAIN (AG)

ASSY, 38 LINK W/OUT SHOES, WITH 1 - 8

2шт.

1

622150C1

CHAIN (AG)

LINK, TRACK L.H.

76шт.

2

622151C1

LINK

TRACK R.H.

76шт.

3

621296C1

BUSHING

LINK

74шт.

4

621297C1

BUSHING

MASTER LINK

2шт.

5

616180C1

SPACER

MASTER LINK

4шт.

6

263943R1

PIN

CHAIN LINK

74шт.

7

616181C1

PIN

MASTER LINK

2шт.

8

616178C1

SPRING WASHER

SPRING STEEL

296шт.

9

4029537R1

SHOE

TRACK - 20 IN.

76шт.

80295R1

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 8

1шт.

616192C1

NUT

TRACK BOLT

1шт.
