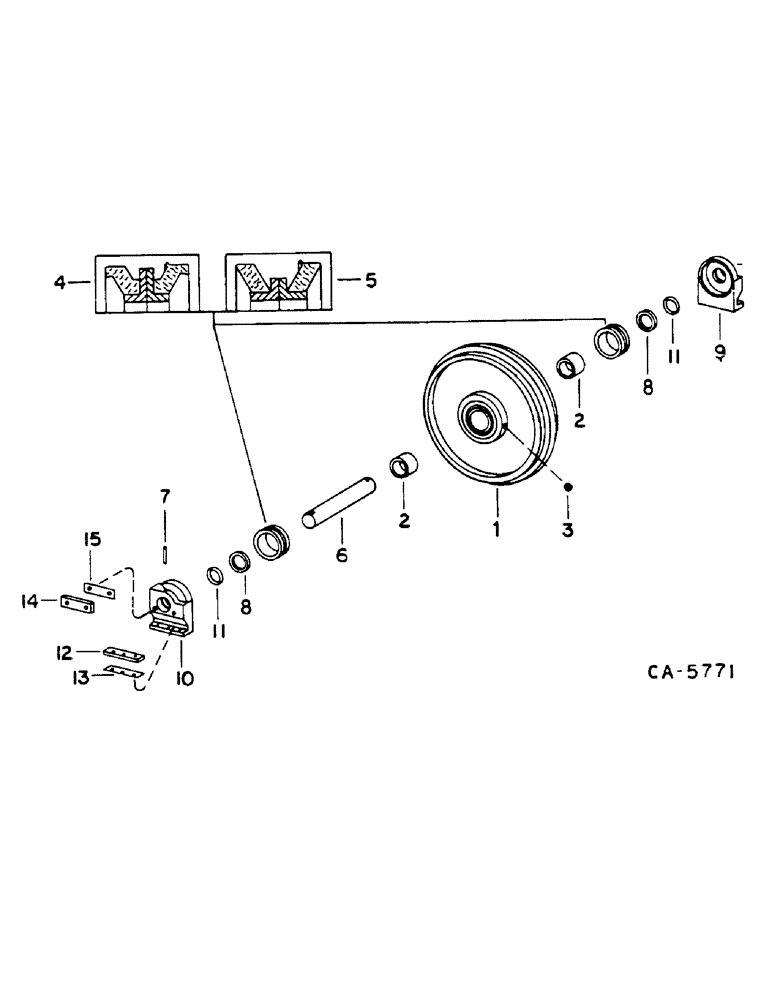

Запчасти Case IH 1460 (15-009) - TRACK, IDLER Wheels & Traction

621414C93

FRONT IDLER

ROLLER ASSY, IDLER, WITH 1 - 11

4шт.

1

621415C92

ROLLER

W/BUSHING, IDLER, WITH 2

4шт.

2

621417C4

BEARING

IDLER ROLLER

8шт.

3

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

IDLER ROLLER

4шт.

4

655973C91

SEAL KIT

TRACK IDLER - OPTIONAL 662591C91

8шт.

5

662591C91

SEAL KIT

KIT, TRACK IDLER - OPTIONAL 665973C91

8шт.

6

621418C1

SHAFT

IDLER ROLLER

4шт.

7

19424R1

PIN,3/8" x 1 1/2", Coiled

8шт.

8

621419C1

THRUST WASHER

IDLER ROLLER THRUST

8шт.

9

621420C1

HOUSING

SUPPORT, IDLER ROLLER

4шт.

208491R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

1шт.

131100

LOCK WASHER,7/16"

1шт.

25935R1

BOLT,Hex, 5/8" - 11 x 1 1/8", Gr 8

1шт.

10

621421C1

HOUSING

SUPPORT, IDLER ROLLER

4шт.

208491R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

1шт.

131100

LOCK WASHER,7/16"

1шт.

25935R1

BOLT,Hex, 5/8" - 11 x 1 1/8", Gr 8

1шт.

11

655266C1

O-RING,1.734" ID x 0.144" Width

IDLER ROLLER SUPPORT

8шт.

12

622044C1

PLATE

BAR, REAR IDLER WEAR

4шт.

208491R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

1шт.

131100

LOCK WASHER,7/16"

1шт.

13

621423C1

SHIM

REAR IDLER SUPPORT BOTTOM

1шт.

14

621424C1

PLATE

REAR IDLER SIDE THRUST

4шт.

15

621427C1

SHIM

REAR IDLER SUPPORT SIDE

1шт.
