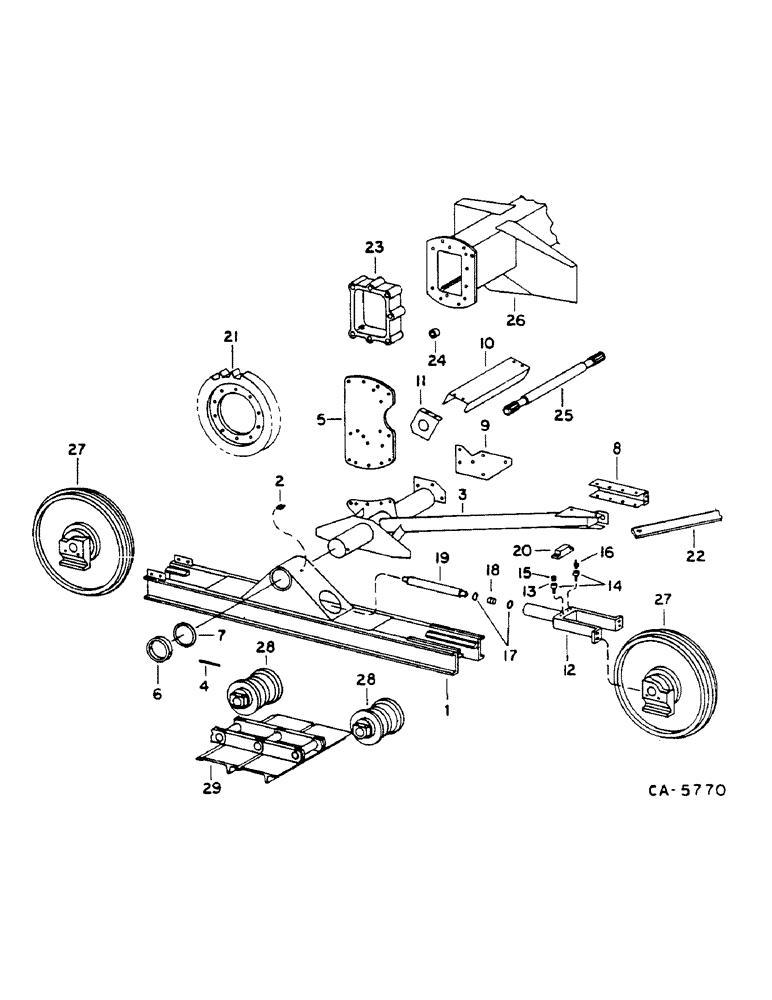

Запчасти Case IH 1460 (15-004) - TRACK Wheels & Traction

196031C1

FRAME

ASSY, TRACK

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

429-1112

NUT,3/4"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8 90 DEG. STR LU

2шт.

3

188487C1

FRAME

PIVOT ASSY, TRACK FRAME L.H.

1шт.

3

188488C1

FRAME

PIVOT ASSY, TRACK FRAME R.H.

1шт.

21610R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

1шт.

22049R1

NUT,3/4"-10, G8

1шт.

24771R1

LOCK WASHER,3/4"

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1шт.

25710R1

WASHER

.531 X 1.062 X .134 HDN

1шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

1шт.

186851C1

FLANGE NUT

5/8 FLANGE LOCK TYPE 8

1шт.

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2 FLANGE LOCK TYPE 8

1шт.

4

23854R1

LOCK PIN,1/2" x 5", Slotted

2шт.

5

186832C1

PLATE

OUTER PIVOT SUPPORT

2шт.

6

167791C1

SPACER

COLLAR, PIVOT AXLE RETAINER

2шт.

7

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

TRACK PIVOT SHAFT

2шт.

8

188498C1

BRACKET

SUPPORT, PIVOT REAR ANCHOR L.H.

1шт.

8

188499C1

BRACKET

SUPPORT, PIVOT REAR ANCHOR R.H.

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

21333R1

NUT,3/8"-16, G8

1шт.

366862C1

LOCK WASHER,3/8"

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

1шт.

186851C1

FLANGE NUT

5/8 FLANGE LOCK TYPE 8

1шт.

9

186006C1

SUPPORT

INNER PIVOT, FOR HI-CLEAR

2шт.

9

1302371C1

PLATE

SUPPORT, INNER PIVOT L.H.

1шт.

9

1302372C1

PLATE

SUPPORT, INNER PIVOT R.H., FOR LO-CLEAR

1шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

1шт.

186851C1

FLANGE NUT

5/8 FLANGE LOCK TYPE 8

1шт.

10

186015C1

GUARD

SHIELD, DRIVE AXLE SHAFT

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

120394

WASHER,3/8", SAE

1шт.

11

186016C1

SUPPORT

OUTER SHAFT SHIELD L.H.

1шт.

11

186017C1

SUPPORT

OUTER SHAFT SHIELD R.H.

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

12

621428C1

CLEVIS

FORK, REAR IDLER ROLLER ADJUSTMENT

2шт.

24863R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1шт.

116121

LOCK WASHER,1/2"

1шт.

13

635286R91

LOCK VALVE

W/PLUG, TRACK ADJ BLEEDER, WITH 14 - 15

2шт.

14

319628R91

PLUG

VALVE ASSY, BLEEDER

4шт.

15

50410DA

PLUG

BLEEDER VALVE

2шт.

16

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8 90 DEG. STR LU

2шт.

17

622626C91

SEAL ASSY.

AND SCRAPER ADJUSTER SERVICE KIT

2шт.

18

622046C1

PISTON

TRACK ADJUSTER HYD

2шт.

19

196030C1

ROD

TRACK ADJUSTER CONTROL

2шт.

20

621430C1

GUARD

SHIELD, TRACK ADJUSTER CHECK

2шт.

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

116121

LOCK WASHER,1/2"

1шт.

21

162343C1

DRIVE SPROCKET

TRACK - 23T

1шт.

22

BAR, SEPARATOR FRAME DIAGONAL, SEE SEPARATOR SIDES

2шт.

23

186036C1

SPACER

DRIVE AXLE TRACK

2шт.

25378R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 8

1шт.

131167

WASHER, LOCK,3/4"

1шт.

24

619769R1

SPACER,1" X-Strng Pipe x 3/4"

DRIVE AXLE TRACK, FOR LO-CLEAR

2шт.

25

SHAFT, AXLE DRIVE - SEE TRANSMISSION DIFFERENTIAL SHAFT AND GEARS

1шт.

26

AXLE ASSY, MAIN, SEE MAIN AXLE

1шт.

27

ROLLER ASSY, IDLER, SEE TRACK IDLER

1шт.

28

ROLLER ASSY, TRACK, SEE TRACK ROLLER

1шт.

29

SEE TRACK CHAIN

1шт.
