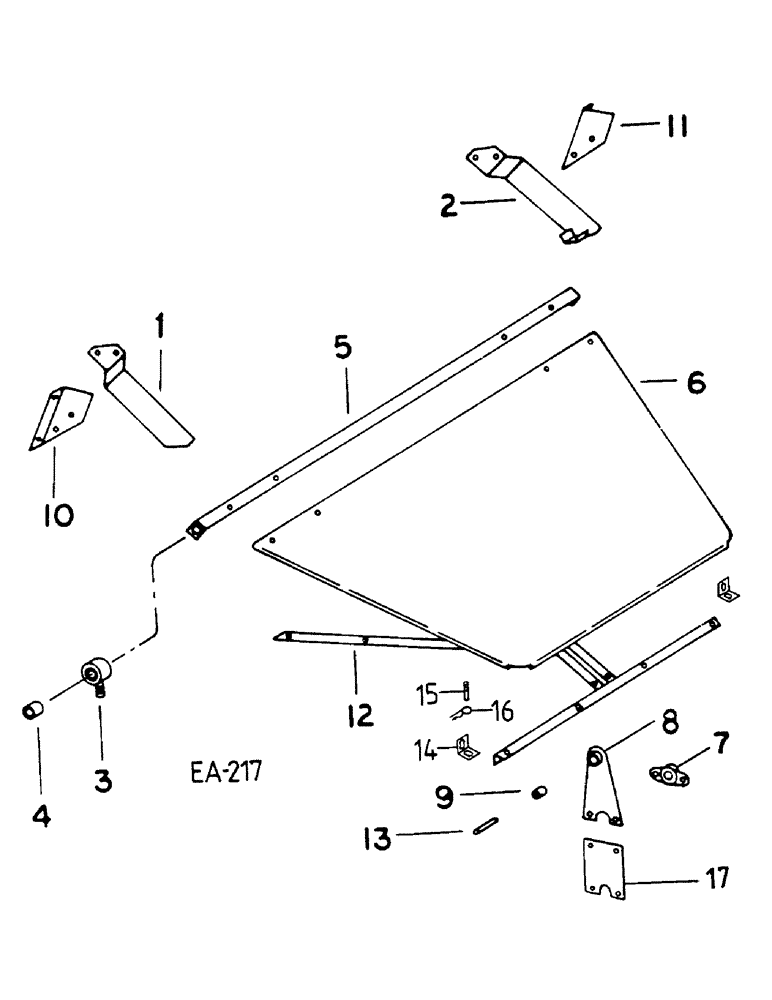

Запчасти Case IH 1460 (14-017) - STEERING AXLE SHIELD, OSCILLATING Suspension

1

1302778C3

ARM ASSY.

AXLE SHIELD L.H.

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

1шт.

2

1302779C3

ARM ASSY.

AXLE SHIELD R.H.

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

1шт.

3

181342C91

END ASSY.

AXLE SHIELD, WITH 4

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

495-11053

WASHER,1/2", SAE

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

4

564103R91

COMPOSITE RING

END ASSY

2шт.

5

1302765C1

SUPPORT ASSY.

STEERING AXLE SHIELD

1шт.

6

1302762C1

SHIELD

AXLE

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

7

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, SHIELD PIVOT

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

8

1302578C91

SUPPORT ASSY.

SHIELD PIVOT, WITH 9

1шт.

9

289588R1

BUSHING

SHIELD PIVOT SUPPORT

1шт.

10

1312737C1

SUPPORT ASSY.

HOOD EXTENSION L.H.

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

11

1312738C1

SUPPORT ASSY.

HOOD EXTENSION R.H.

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

12

1302550C1

SUPPORT ASSY.

AXLE SHIELD

1шт.

13

1302776C1

BUSHING,13.46mm ID x 19.05mm OD x 30.23mm L

PIVOT LINK UPPER SUPPORT

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

22771R1

WASHER

.656 X 1.250 X .027

1шт.

14

1866002R1

SUPPORT

STRG AXLE SHIELD

2шт.

3177072R1

BOLT

SPARE PART SCREW, M10 X 20 SLTD-TRUSS-HD

2шт.

3164622R1

LOCK NUT

M10 HEX THI-BLOC

2шт.

15

794935R3

PIN

THREADED

2шт.

934391R1

LOCK NUT

M10 LOCK

4шт.

16

739883R1

SPRING

CLIP

2шт.

17

1312009C1

LINK

PIVOT SHIELD

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLTD-TRUSS-HD

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

2шт.

1300097C92

STRIPPER PACKAGE

OSCILLATING SHIELD - PARTS ACCESSORY - WITH 1 - 13 AND INSTRUCTION MANUAL, NOT ILLUSTRATED

1шт.
