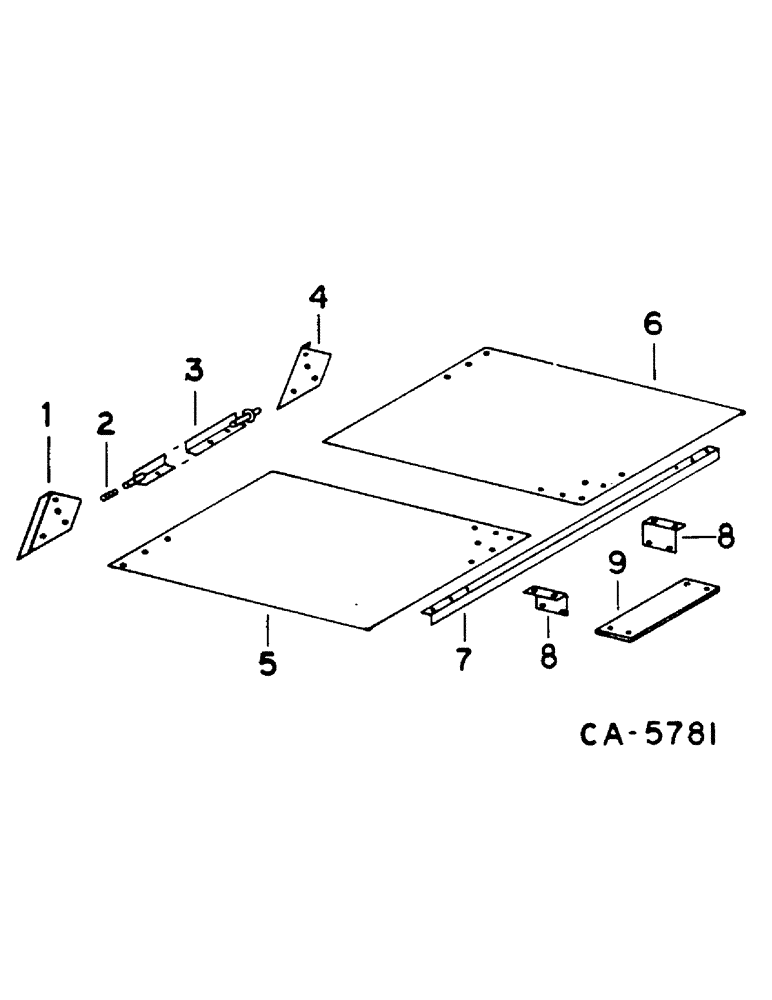

Запчасти Case IH 1460 (14-015) - STEERING AXLE SHIELD, STATIONARY Suspension

1

186912C1

SUPPORT

AXLE SHIELD L.H.

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

2

203942C1

SPRING

SHIELD PIVOT

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

1шт.

3

195450C2

SUPPORT ASSY.

AXLE SHIELD

1шт.

4

186913C1

SUPPORT

AXLE SHIELD R.H.

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

5

195437C2

SHIELD

AXLE L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

6

195438C2

SHIELD

AXLE R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

7

NOT USED

1шт.

8

183093C1

BRACKET

AXLE SHIELD SUPPORT

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

9

183094C1

CUSHION

AXLE SHIELD

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

1шт.

9412083

NUT,5/16"-18, GB

1шт.

120393

BEARING WASHER,5/16", SAE

1шт.
