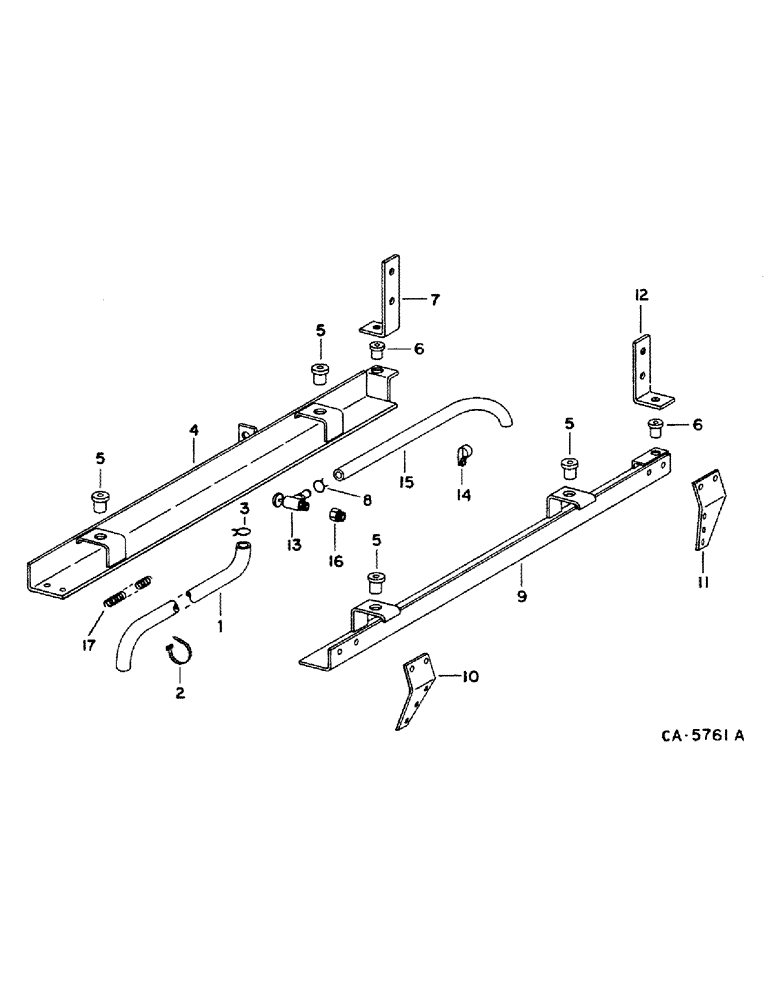

Запчасти Case IH 1460 (12-14) - POWER, ENGINE RAILS, S/N 6540 AND ABOVE Power

1

183616C1

HOSE,38.1 mm ID x 1168.40 mm, SAE 20R1

crankcase breather, 46 in.

1шт.

2

306132C1

CABLE TIE,14.5" L

STRAP, breather hose

2шт.

3

610320C1

CLAMP

hose

1шт.

4

182951C2

RAIL ASSY.

RAIL ASSY, engine left, replaces 195407C1

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

5

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR, engine front and rear

4шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8 x 3-1/4 type 5

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

1шт.

9413969

NUT,5/8"-11, GB

5/8 CAD p/t lock type 5

1шт.

107813R1

WASHER

21/32 x 2-1/2 x 3/16 C-Z

1шт.

6

400159R1

BUMPER

ABSORBER

2шт.

18699R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/2", Gr 2

BOLT, 7/16 x 2-1/2 crg type 1

1шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16 CAD p/t lock type 5

1шт.

23043R1

WASHER

.469 x 2.000 x .105

1шт.

7

191365C1

SUPPORT

engine front LH

1шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8 x 4 type 1

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 x 3-3/4 type 5

1шт.

8

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP, no. 15 type E spring wire hose

1шт.

9

182957C3

RAIL ASSY.

RAIL ASSY, engine right, replaces 195408C1

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

23043R1

WASHER

.469 x 2.000 x .105, fan shroud shim

1шт.

10

191373C1

BRACKET

SUPPORT, engine rail RH, Serial Range: -7072

1шт.

10

182912C3

SUPPORT

engine rail RH, Start Serial: 7073

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

11

191374C1

SUPPORT ASSY.

SUPPORT, engine rail RH, Serial Range: -7072

1шт.

11

182913C3

SUPPORT

engine rail RH, Start Serial: 7073

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

12

191364C1

SUPPORT

front right

1шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8 x 4 type 1

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8 x 3-3/4 type 5

1шт.

13

301803R1

SHUT-OFF VALVE

SHUT-OFF ASSY, crankcase drain, replaces 1287760C1

1шт.

14

406381C1

CLIP

oil drain hose

2шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

HOSE, crankcase oil drain, use 36 in. of 5/8 ID hose from 25 ft. roll marked S118576

1шт.

16

175778H1

ADAPTER

1/2 x 3/8 reducer

1шт.

17

1301436C1

SPRING

vent hose internal

1шт.
