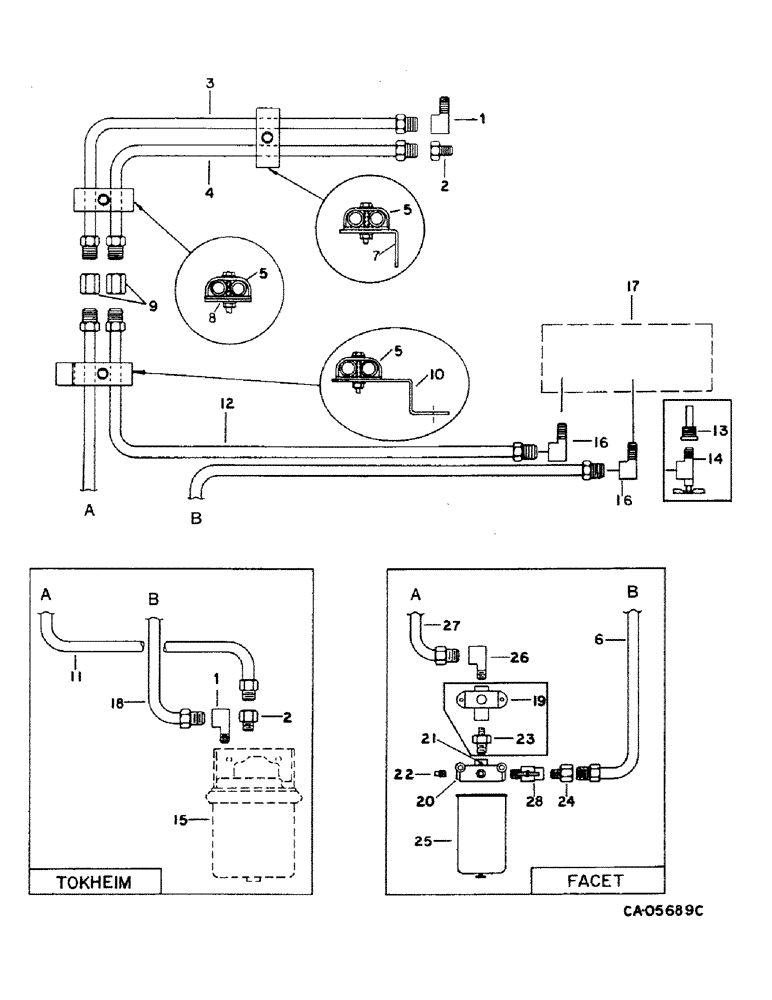

Запчасти Case IH 1460 (12-11) - POWER, FUEL LINES, S/N 1500 AND ABOVE Power

1

442412

ELBOW

3/8 inv flared tube 90D

1шт.

2

442323

CONNECTOR, ELEC

CONNECTOR, 3/8 pln inv flared tube

1шт.

3

198009C1

FUEL TUBE

TUBE ASSY, fuel line pressure upper

1шт.

4

198008C1

FUEL TUBE

TUBE ASSY, fuel line return upper

1шт.

5

183825C1

CLAMP

3шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

6

1315507C1

FUEL TUBE,0.375" OD, 662.9, 292.1 mm Length

TUBE ASSY, filter base to tank, replaces 1301207C1

1шт.

7

196518C1

SUPPORT TUBE

ANGLE, fuel line upper support

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 h/hd tap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

8

198462C1

PLATE

upper support

1шт.

9

442338

UNION

3/8 pln inv fld tube

2шт.

10

196517C1

SUPPORT TUBE

SUPPORT, fuel line tubes

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

11

183652C1

FUEL TUBE

TUBE ASSY, fuel line lower, Serial Range: 1501-52623

1шт.

12

183653C2

FUEL TUBE

TUBE ASSY, fuel line return lower

1шт.

13

179381C1

SIEVE

STRAINER ASSY, fuel tank, Serial Range: 1501-42345

1шт.

13

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

ADAPTER, 3/8 to 1/4 pln out/h/hyd pipe, Serial Range: 42346-52623

1шт.

14

161707C1

VALVE,5/8" - 18 x 1/4" NPTF

VALVE ASSY, fuel shut-off, Serial Range: 1501-52623

1шт.

15

PUMP ASSY, fuel, refer to this group under fuel pump

1шт.

16

144535R1

ELBOW

3/8-18 90 deg inverted flared tube

2шт.

17

FUEL, tank, refer to this group under fuel tank

1шт.

18

183654C1

TUBE

ASSY, fuel pump to tank, Serial Range: 1501-52623

1шт.

19

183721C1

PUMP

ASSY, fuel, facet, Serial Range: 1501-52623

1шт.

20

612277C2

FILTER HEAD

BASE ASSY, fuel filter

1шт.

18773R1

BOLT,Hex, 5/16" - 18 x 4", Gr 2

5/16 x 4 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21

444614

PLUG,Hex Hd, 1/8"-27, Brass

1/8-27 auto hex-hd pipe

1шт.

22

444578

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG, 1/4-18 pln sq/hd auto pipe

2шт.

23

443986

REDUCER,1/4"-18 NPTF x 1/8"-27 NPTF

NIPPLE, 1/4 to 1/8 pipe reducer, Serial Range: 1501-52623

1шт.

24

442323

CONNECTOR, ELEC

CONNECTOR, 3/8 pln inv flared tube

1шт.

25

702255C1

FILTER ASSY

fuel

1шт.

26

1301253C1

ELBOW

1/8 x 5/8 90 deg flared tube, Serial Range: 1501-52623

1шт.

26

193004

ELBOW

3/8 pln inv fld tube 90 deg, Start Serial: 52624

1шт.

27

1301206C1

FUEL TUBE

TUBE ASSY, fuel line pressure lower, Serial Range: 1501-52623

1шт.

27

1315506C1

FUEL TUBE

TUBE ASSY, fuel line pressure lower, Start Serial: 52624

1шт.

28

1315522C1

FAUCET

VALVE, fuel shut-off, Start Serial: 52624

1шт.
