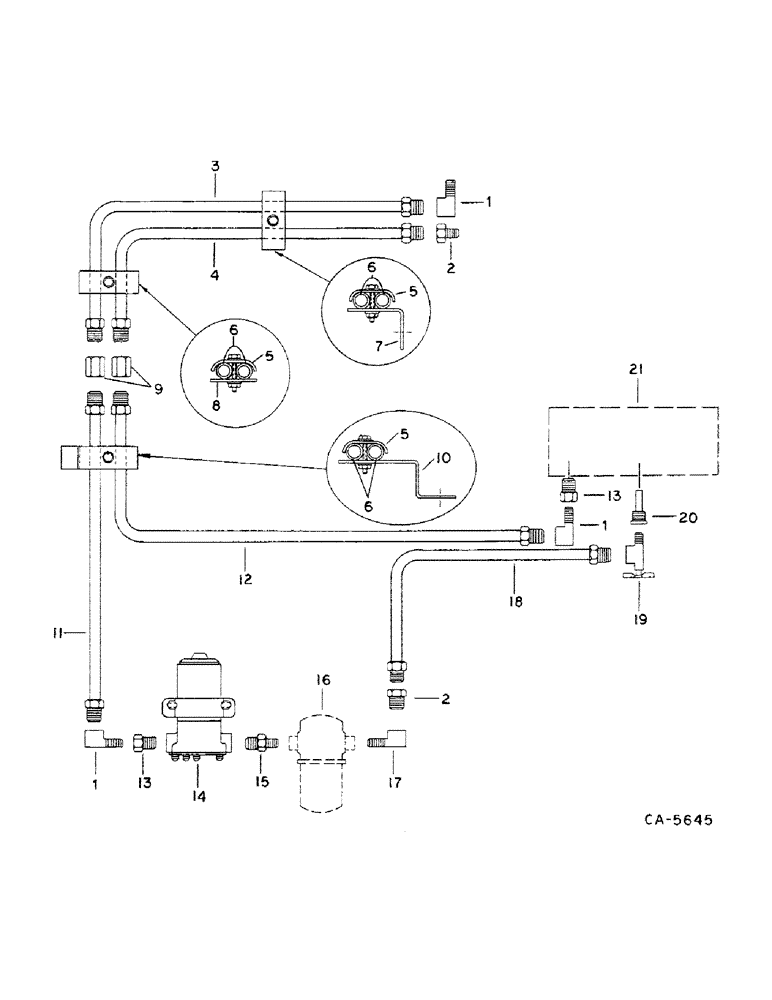

Запчасти Case IH 1460 (12-09) - POWER, FUEL LINES, S/N 1500 AND BELOW Power

1

442412

ELBOW

1/4-18 90 deg inverted flared

3шт.

2

442323

CONNECTOR, ELEC

CONNECTOR, 1/4-18 znd inverted flared tube

1шт.

3

198009C1

FUEL TUBE

TUBE ASSY, fuel line upper

1шт.

4

198008C1

FUEL TUBE

TUBE ASSY, fuel line return upper

1шт.

5

183825C1

CLAMP

3/8 in. tube, replaces 165601C1

3шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

6

193490C1

STRIP, 3/8 tube

6шт.

7

196518C1

SUPPORT TUBE

ANGLE, fuel line upper support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

8

198462C1

PLATE

upper support

1шт.

9

442338

UNION

5/8-18 inverted

2шт.

10

196517C1

SUPPORT TUBE

SUPPORT, fuel line tubes

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

11

198010C1

TUBE

ASSY, fuel line lower

1шт.

12

198007C1

TUBE

ASSY, fuel line return lower

1шт.

13

444028

REDUCER,3/8"-18 NPTF x 1/4"-18 Fem NPTF

BUSHING, 3/8 to 1/4 auto-reducer

1шт.

14

196503C1

PUMP

ASSY, fuel

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 ZNP slt-truss-hd

1шт.

446363

WASHER,5/16"

.375 x .875 x .064 znd

1шт.

15

443990

REDUCER,3/8"-18 NPTF x 1/4"-18 NPTF

3/8 to 1/4 pipe nipple

1шт.

16

FILTER ASSY, fuel, refer to htis group under fuel filter

1шт.

17

NLS

NO LONGER SERVICED

ELBOW, 1/4 znp 90D pipe street

1шт.

18

198011C1

TUBE

ASSY, fuel tank to fuel pump

1шт.

19

161707C1

VALVE,5/8" - 18 x 1/4" NPTF

VALVE ASSY, fuel shut-off

1шт.

20

179381C1

SIEVE

STRAINER ASSY, fuel tank

1шт.

21

TANK, fuel, refer to this group under fuel tank

1шт.

180774C1

KIT

electric fuel pump repair

1шт.
