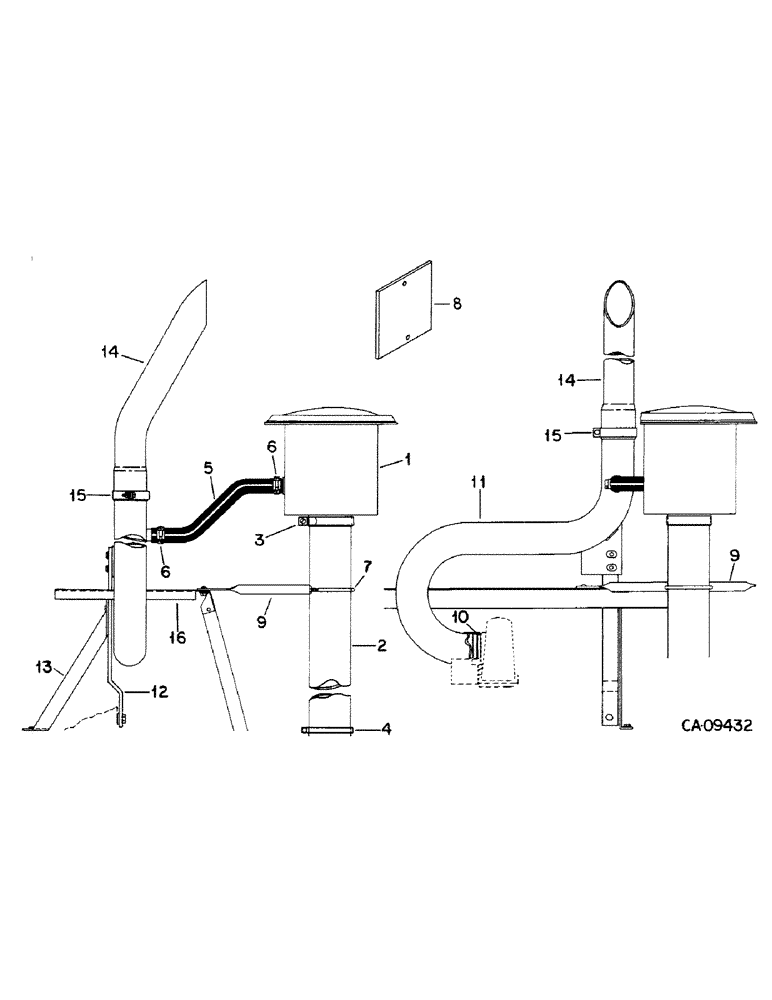

Запчасти Case IH 1460 (12-05) - POWER, ASPIRATED PRE-CLEANER PRE-SCREENER, S/N 1501 AND ABOVE FOR FACTORY INSTALLED ASPIRATOR ATTACH Power

1

130918C91

PRESCREENER ASSY.

PRE-CLEANER PRE-SCREENER ASSY

1шт.

2

131065C2

TUBE

air cleaner intake pipe

1шт.

3

650986C1

CLAMP,69.85mm - 82.55mm

intake pipe

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 znd type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

4

390462R91

CLAMP

pre-cleaner tube

1шт.

5

HOSE, exhaust ejector, use 19 inch from bulk hose 407001R2

1шт.

6

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP, no. 20 type F hose

1шт.

7

121839C1

BOLT,5/16" - 18 x 4.88" W x 5.30" L

U-BOLT

1шт.

120376

NUT,5/16"-18, G5

1шт.

8

121985C1

PLATE

air intake cover

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

130729C1

SUPPORT

pre-cleaner strap

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

107594C1

SPACER

turbo exhaust sleeve

1шт.

11

1275892C1

MUFFLER

PIPE, exhaust

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

12

1324171C1

BRACKET

SUPPORT, exhaust pipe

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC HDN

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/4 znd type 5

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

13

1324211C1

BRACKET

SUPPORT, exhaust pipe

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 x 1 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

14

1275833C1

TUBE

PIPE, exhaust ejector elbow

1шт.

15

1321280C1

CLAMP

exhaust elbow

1шт.

16

1324172C2

BRACKET

SHEET, top cover rear

1шт.
