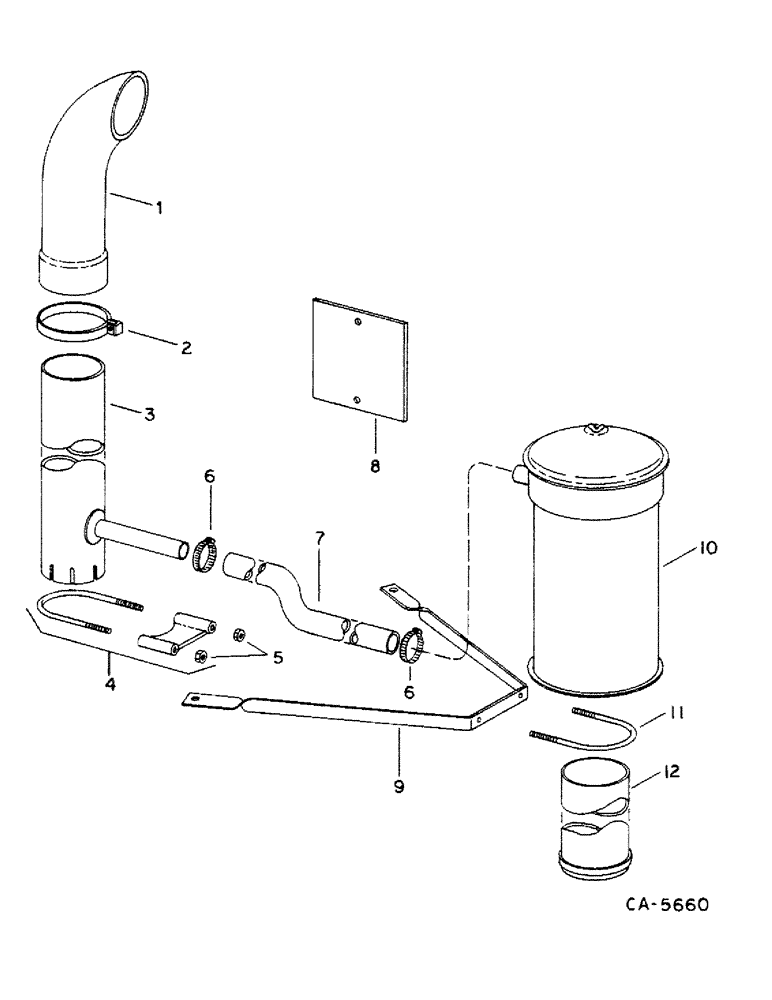

Запчасти Case IH 1460 (12-02) - POWER, ASPIRATED PRE-CLEANER, PRE-SCREENER, S/N 1500 AND BELOW Power

1

549918R2

PIPE, EXHAUST SYSTEM

PIPE, exhaust

1шт.

2

58937C1

CLAMP

exhaust pipe

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

533183R1

MUFFLER

EJECTOR, exhaust

1шт.

4

61156C91

PACKAGE

muffler clamp

1шт.

5

535993R1

NUT

muffler clamp

2шт.

6

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP, ejector hose

2шт.

7

HOSE, exhaust ejector, use 36 in. from stock marked 407001R2

1шт.

8

121985C1

PLATE

air intake cover

1шт.

9

130729C1

SUPPORT

pre-cleaner

1шт.

10

533100R91

PRESCREENER

PRE-CLEANER, pre-screener assy, refer to this group under pre- cleaner pre-screener for service parts

1шт.

11

121839C1

BOLT,5/16" - 18 x 4.88" W x 5.30" L

U-BOLT, support

1шт.

12

121908C1

TUBE

air cleaner intake

1шт.

S5079 Muffler replaced by Exhaust Tubing, 1400 Series...

1шт.
