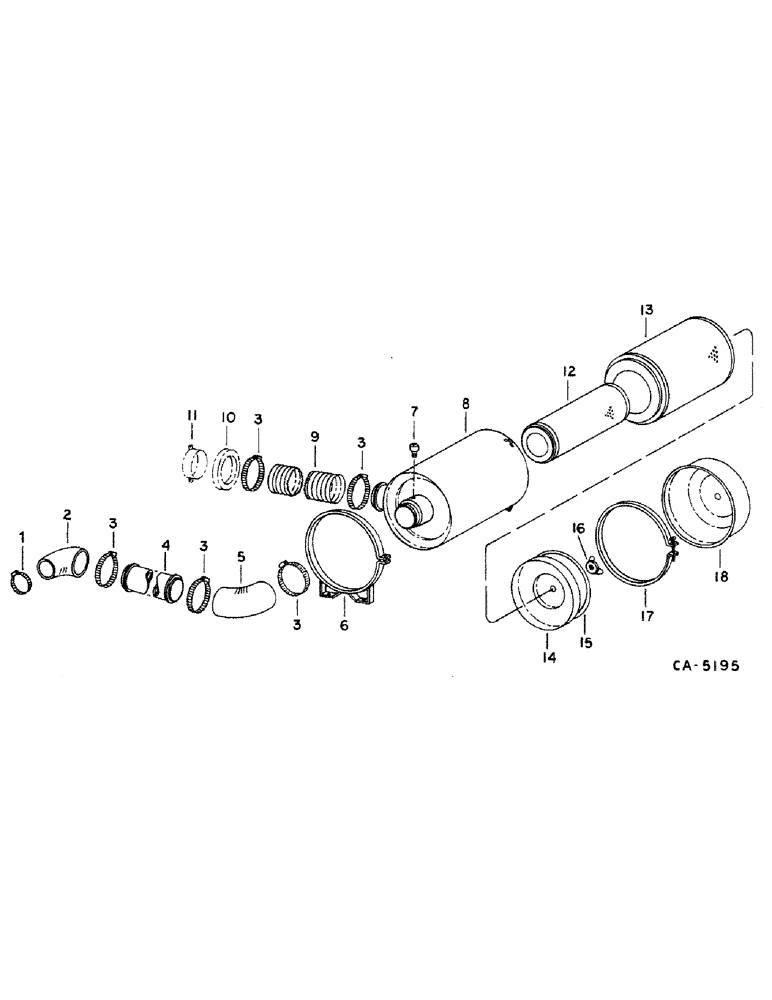

Запчасти Case IH 1460 (12-01) - POWER, AIR CLEANER AND CONNECTIONS Power

121788C91

CLEANER

air dry type, includes ref nos. 12 thru 18

1шт.

1

146569C1

CLAMP

inlet elbow

1шт.

2

548222R1

INTAKE AIR HOSE,3.00" ID, 4.00" ID x 4.25"

ELBOW, inlet engine

1шт.

3

146570C1

CLAMP

air cleaner inlet hose

5шт.

4

121538C1

TUBE

ASSY, air cleaner outlet

1шт.

5

218899R1

ELBOW

air cleaner outlet

1шт.

6

259922C91

BAND

air cleaner mounting

2шт.

180087

SPRING

5/16 x 2 znd type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8-16 x 1 flange lock

1шт.

7

366078C1

INDICATOR

air restriction

1шт.

8

HOUSING ASSY, air cleaner, not serviced separately order cleaner, 121788C91

1шт.

9

130720C1

INTAKE AIR HOSE,4.50" ID x 60.00"

Air Cleaner Inlet 4.50" ID x 60.00"

1шт.

10

SEAL, air cleaner tubing, refer to group 6 under rotary screen chute

1шт.

11

TUBE ASSY, air cleaner inlet, refer to group 6 under rotary screen chute

1шт.

12

932390C1

AIR FILTER

ELEMENT, safety

1шт.

13

932391C2

AIR FILTER

ELEMENT, primary, nut assembly is L35499 or wing nut is L37977 and seal A44187

1шт.

14

383610C1

BAFFLE

1шт.

15

225067R1

O-RING,10.62" ID x 0.27" Width

dust cap

1шт.

16

412078C1

WING NUT

NUT

1шт.

17

891128R91

CLAMP

1шт.

18

529820R1

CUP

CAP, dust

1шт.
