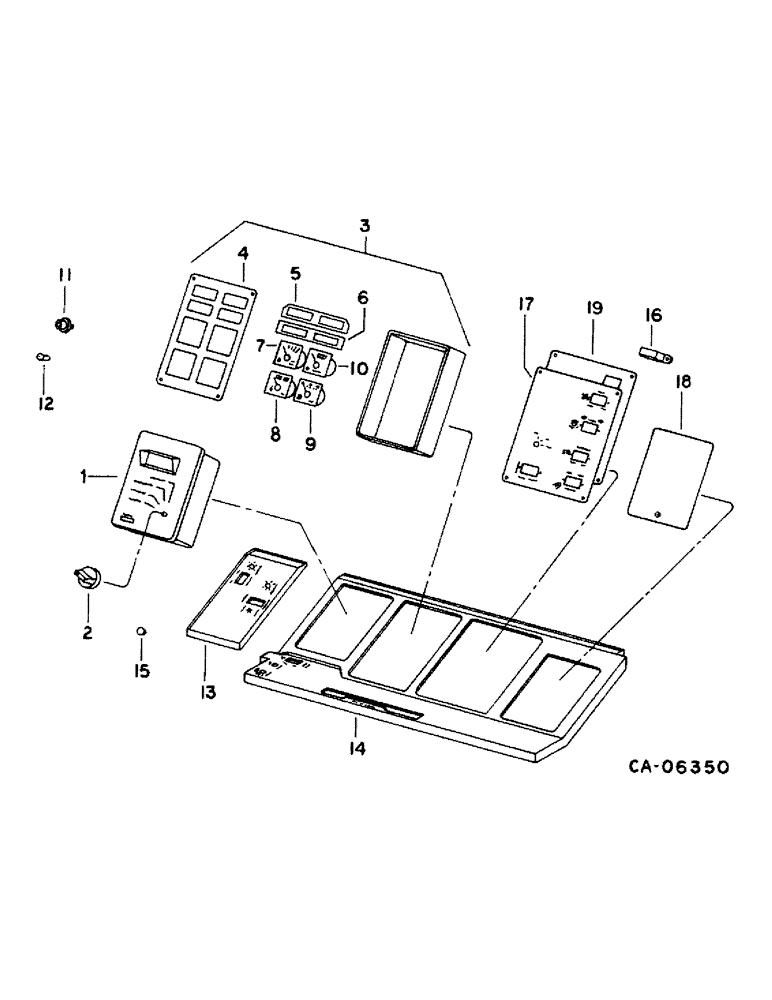

Запчасти Case IH 1460 (11-02) - INSTRUMENTS, INSTRUMENTS AND GAUGES, S/N 22001 AND ABOVE Instruments

1

245256C91

TACHOMETER

SYSTEM, mulit-position, replaces R187512C91, includes Ref. no. 2

1шт.

27204R1

SELF-TAP SCREW

no. 8-18 x 3/4 pln o/hdcr tap

1шт.

2

196980C1

KNOB

multi-position tachometer

1шт.

192208

SET SCREW,Hex Soc, #8-32 x 3/16"

SCREW, no. 8 x 3/16 c/pt znp hdl/s set

1шт.

3

198067C91

ELECTRICAL GAUGE

GAGE ASSY, cluster, includes Ref nos. 4 thru 12

1шт.

27204R1

SELF-TAP SCREW

no. 8-18 x 3/4 pln o/hdcr tap

1шт.

4

121608C1

GASKET

BEZEL AND GASKET ASSY

1шт.

5

187596C1

LENS

warning lights

1шт.

6

187597C1

LENS

warning lights

1шт.

7

121606C1

ELECTRICAL GAUGE

GAUGE, oil pressure

1шт.

8

121607C1

METER

VOLTMETER

1шт.

9

121604C1

ELECTRICAL GAUGE

GAUGE, fuel

1шт.

10

121605C2

ELECTRICAL GAUGE

GAUGE, temperature

1шт.

11

121611C1

SOCKET

ASSY, lamp

8шт.

12

W10478

LAMP

BULT, no. 194

8шт.

13

1301223C3

COVER

right console switch support

1шт.

27204R1

SELF-TAP SCREW

no. 8-18 x 3/4 pln o/hdcr tap

1шт.

14

1324973C1

COVER

W/PRODUCT GRAPHIC, right console, replaces 1301222C4

1шт.

27204R1

SELF-TAP SCREW

no. 8-18 x 3/4 pln o/hdcr tap

1шт.

15

353-404

PLUG,Dome, .500" hole, Nylon

Header height & auto reel Dome, .500" hole, Nylon

4шт.

15

183617C1

PLUG

RH console

1шт.

15

353-408

PLUG,Dome, .750" hole, Nylon

potentiometer calibration

1шт.

16

1301238C1

PLUG

auto header and auto reel speed

2шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

17

1301226C2

BAR

COVER, right console switch support

1шт.

27204R1

SELF-TAP SCREW

no. 8-18 x 3/4 pln o/hdcr tap

1шт.

18

187573C1

COVER

fuse panel

1шт.

27204R1

SELF-TAP SCREW

no. 8-18 x 3/4 pln o/hdcr tap

1шт.

19

1301227C1

PLATE

right console insert

1шт.
