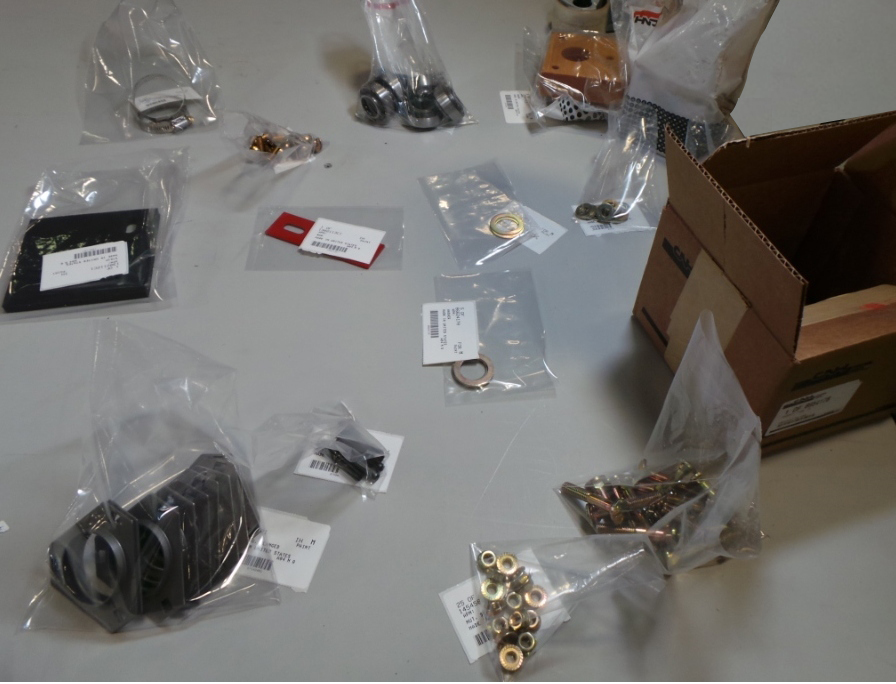

Запчасти Case IH 1460 (26-19) - KIT AUGER BED 80 SIZE Grain Tank

1

B95417

KIT

Incl 2 - 16

1шт.

2

1302112C1

STRIP

LH

1шт.

3

1302113C1

BAR

1шт.

4

193414C2

BOARD

FRONT AUGER BEARING

5шт.

5

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

6

88902

NUT,3/8"-16

15шт.

7

145458

SERRATED NUT,5/16"-18 GR 5 ZND

15шт.

8

249278A1

AUGER

RICE RH

5шт.

9

87580

LOCK PIN,7.94mm OD x 50.8mm L, Slotted

5шт.

10

280514

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

15шт.

11

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

15шт.

12

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

15шт.

13

86624168

WASHER,1.03" ID x 1.5" OD x 0.03" Thk

2шт.

14

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

2шт.

15

571424R1

FLANGE

10шт.

16

86900821

BALL BEARING,22.25mm Hex x 52mm OD x 25.53mm W

5шт.
