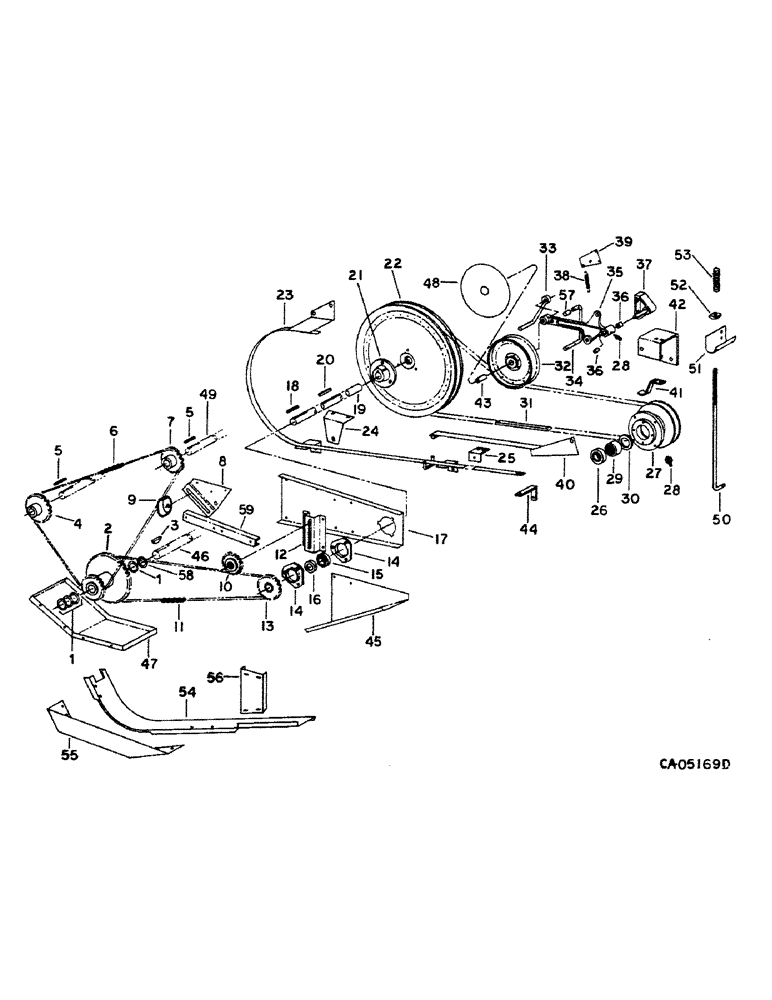

Запчасти Case IH 1460 (26-12) - GRAIN TANK, GRAIN TANK UNLOADER DRIVE Grain Tank

1

162679C1

WASHER

WASHER, 1.40 x 2.25 x .06 hardened

4шт.

2

192511C2

SPROCKET ASSY.

SPROCKET ASSY, unloader drive, 43T and 57T

1шт.

3

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

4

192922C1

SPROCKET

ASSY, front auger driven, 43T

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

20704R1

WASHER

1.031 x 1.500 x .105

1шт.

5

Q53

KEY,1/4" Sq x 1", Par

2шт.

6

CHAIN ASSY, grain tank auger drive, use 157 links from a 10 ft roll marked 1790D, and 1 connecting link 1301D

1шт.

7

192925C1

SPROCKET

ASSY, rear auger driven, 37T

1шт.

8

193779C1

SUPPORT

idler support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

9

936878R1

BLOCK

front auger drive tightener

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

10

565442R91

SPROCKET

vertical auger chain tightener, 17T

1шт.

598815R1

CARRIAGE BOLT

BOLT, 1/2 x 2-1/2 znd sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 znd

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

.531 sq x 1.25 x .105 znd

1шт.

11

CHAIN ASSY, vertical auger drive, use 133 links from a 10 ft. roll marked 1791D and 1 connecting link 1310D

1шт.

12

192901C1

SUPPORT

vertical auger drive

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

192199C2

SPROCKET ASSY.

SPROCKET ASSY, rear auger drive, 33T

1шт.

14

571425R1

FLANGED BEARING

unloader jackshaft bearing

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

15

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

unloader jackshaft

2шт.

16

557115R11

COLLAR

COLLAR W/SET SCREW, jackshaft brg

2шт.

17

192899C2

SUPPORT

jackshaft outer

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

18

586879R1

KEY

5/16 x 5/16 x 2.0 sq. parallel

2шт.

19

192895C1

SHAFT

vertical auger

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

20885R1

WASHER

1.156 x 2.000 x .054

1шт.

478258R1

WASHER

1.16 x 1.75 x .12 znd

1шт.

20

586879R1

KEY

5/16 x 5/16 x 2 sq. parallel

1шт.

21

192882C1

HUB

jackshaft driven pulley

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 jam type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16 x 1 sq/hd c/pt set

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22

192967C1

PULLEY ASSY.

PULLEY ASSY, unloader jackshaft driven, 18.6 in. OD

1шт.

104233

RIVET, 3/16 x 1/4 flat hd 3/16" x 1/4"

1шт.

23

195168C2

GUIDE

ASSY, unloader belt, replaces 192867C2

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

24

192870C1

SUPPORT

belt guide lower front

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

25

193693C1

SUPPORT

belt guide center

1шт.

26

658089R91

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, pump drive pulley

1шт.

27

192945C91

PULLEY ASSY.

PULLEY ASSY, auxiliary pump drive, includes ref. nos. 26, 29 and 30

1шт.

28

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-8 str self tap. lub

2шт.

29

191213C91

NEEDLE BEARING,41.275 mm ID x 50.812 mm OD x 25.4 mm

BEARING, pump drive pulley rear

1шт.

30

466176R92

SEAL

rear pulley bearing

1шт.

31

191290C1

V-BELT,22.32 mm W x 3409.89 mm L

V-BELT , Drive, Unloader jackshaft drive, OC 22.32 mm W x 3409.89 mm L

1шт.

32

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

ASSY, unloader belt tightener, 8.75 in. OD

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

271735

BODY,Hex, 5/8" - 11 x 5", Gr 5

5/8 x 5 type 5

1шт.

33

194894C1

ROD

unloader belt upper

1шт.

34

193820C1

ROD

unloader belt upper

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

35

192877C91

ARM

ASSY, unloader belt tightener, includes ref. nos. 36 & 57, Serial Range: -1500

1шт.

35

185059C92

ARM ASSY.

ARM ASSY, unloader belt tightener, includes ref. nos. 36 & 57, Start Serial: 1501

1шт.

36

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

unloader belt tightener arm

2шт.

37

191464C1

SUPPORT

unloader tightener arm

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/6 flange lock

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

5/6 x 1-1/4 hex-hd flange

1шт.

366112R1

WASHER

.781 x 1.250 x .105

1шт.

38

400025R1

SPRING

unloader tightener arm, Serial Range: -1500

1шт.

39

193598C1

SUPPORT ASSY.

SUPPORT, unloader arm spring, Serial Range: -1500

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

40

193716C1

SUPPORT ASSY.

SUPPORT ASSY, upper belt guide

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 znd type 5

1шт.

231-1448

NUT,1/2"-13, GB

1/2 P/T lock type 5

1шт.

41

193627C1

SUPPORT

unloader belt trap

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

42

194599C1

SUPPORT

CHANNEL, upper belt guide inner

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

43

568005R1

SPACER,7/8" Tube x 1 3/8"

belt tightener shield

1шт.

44

195392C1

ANGLE

belt guide lower rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

45

186113C1

SUPPORT ASSY.

SUPPORT, unloader drive chain, Serial Range: -6530

1шт.

46

SHAFT, horizontal auger gear case, refer to this group under grain tank unloader lower drive

1шт.

47

186156C1

SUPPORT ASSY.

SUPPORT, cross auger drive, Serial Range: -1500

1шт.

48

186483C1

GUARD ASSY.

SHIELD, unloader belt tightener pulley

1шт.

49

AUGER ASSY, grain tank bottom, refer to this group under grain tank bottom auger

2шт.

50

185061C1

ROD

unloader belt tightener, Start Serial: 1501

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

51

185062C1

SUPPORT

unloader arm spring, Start Serial: 1501

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

52

194652C1

PIVOT

belt tightener rod, Start Serial: 1501

1шт.

53

391745R1

SPRING

unloader tightener arm, Start Serial: 1501

1шт.

54

1302434C1

SHIELD

unloader drive, Start Serial: 6431

1шт.

55

183351C1

PLATE

unloader side, Start Serial: 6531

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

56

183352C1

SUPPORT

unloader shield, Serial Range: 6531-12000

1шт.

56

1302435C1

SUPPORT

unloader shield, Start Serial: 12001

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

57

1302225C1

BUSHING

unloader belt tightener arm

1шт.

58

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

1.40 x 2.25 x .12 hardened

1шт.

59

1319469C1

CHANNEL

unloader jackshaft support

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.
