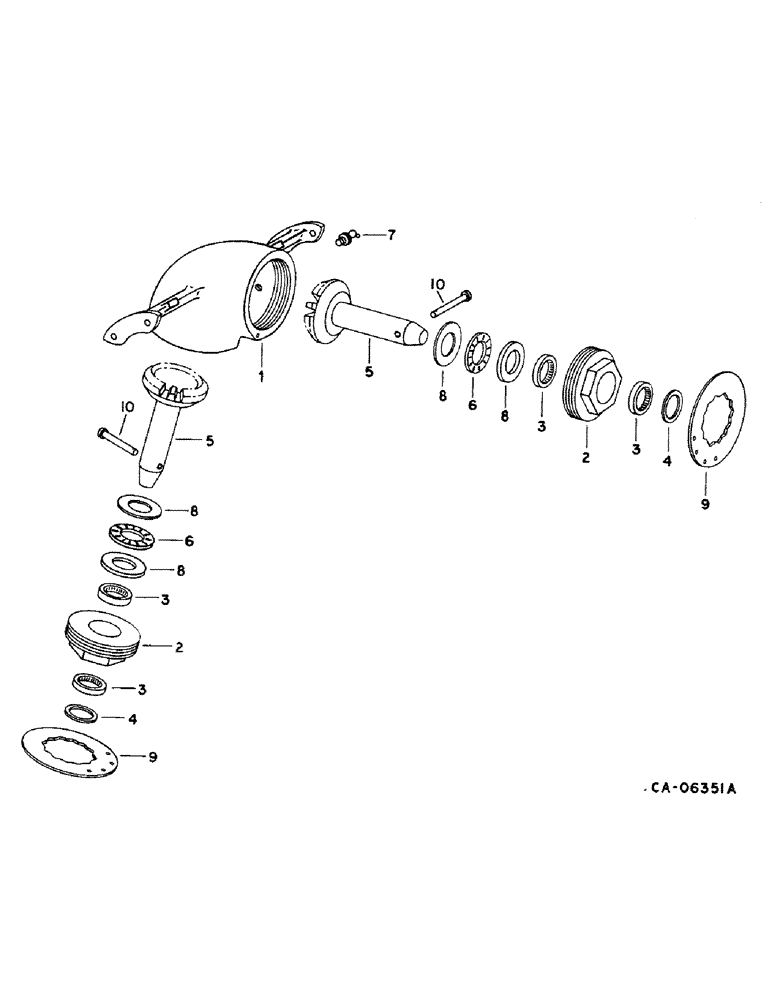

Запчасти Case IH 1460 (26-11) - GRAIN TANK, UNLOADER UPPER GEAR CASE ASSY Grain Tank

1324931C91

HOUSING

CASE ASSY, unloader upper gears, replaces 178189C91, includes ref nos. 1 thru 9

1шт.

1324931C91R

REMAN-GEARBOX

1460 (1/77-12/84)

1шт.

1324931C91C

CORE-GEARBOX

Return Number

1шт.

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

1

HOUSING, unloader gears, not serviced separately, order case assy

1шт.

2

178135C91

BEARING HOUSING,1.6255" ID x 1.75"

FITTING ASSY, unloader upper gear brg, includes ref nos. 3 & 4

2шт.

3

D66348

NEEDLE BEARING,Needle, 34.92mm ID x 41.27mm OD x 12.7mm W

BEARING, upper gear brg shg

4шт.

4

179014C91

OIL SEAL

upper gear hsg oil

2шт.

5

1324929C1

GEAR

unloader upper case, replaces 1300283C1 and 1309380C1, 18T

2шт.

6

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

unloader upper gear

2шт.

7

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4 in. x 45 deg. lub

1шт.

8

607147R1

WASHER

WASHER, upper gear brg thrust

4шт.

9

178138C1

RETAINER

gear housing lock

2шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 x 3/4 PHC type 8

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

1327766C1

PIN

1/2 x 3-1/2 in. hardened

2шт.

28346R1

COTTER PIN,3/16" x 1", Stainless

Pin, Split (Cotter), 3/16" x 1", Stainless

1шт.
