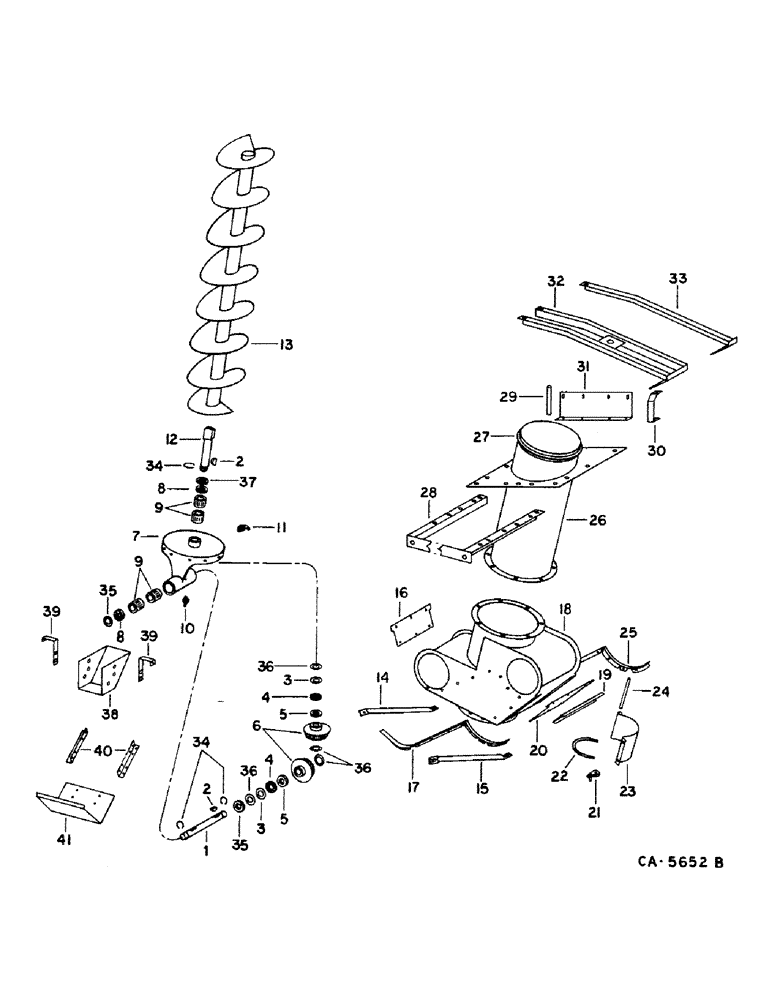

Запчасти Case IH 1460 (26-07) - GRAIN TANK, GRAIN TANK UNLOADER LOWER Grain Tank

1

1327738C2

SHAFT

horizontal auger gear case, replaces 192790C1

1шт.

2

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

2шт.

3

157725C1

THRUST WASHER

use with housing 193702C92

2шт.

3

1327731C1

THRUST WASHER

WASHER, thrust, use with housing 1327976C91

2шт.

4

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

horizontal auger and vertical shaft thrust

2шт.

5

607147R1

WASHER

use with housing 193702C92

2шт.

5

1327732C1

THRUST WASHER,34.92mm ID x 52.37mm OD x 2.42mm Thk

thrust, use with housing 1327976C91

1шт.

6

186517C1

GEAR-SET

GEAR SET, vertical auger lower

1шт.

7

1327976C91

HOUSING

ASSY, auger drive, replaces 193702C92 by also ordering, (6) washers, 1327732C1 and (2) washers, 1327731C1, includes ref. nos. 8 and 9

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 x 1 hex-hd lock

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

8

157724C91

OIL SEAL

auger drive oil

2шт.

9

188126C91

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 25.4mm W

BEARING, shaft support needle

4шт.

10

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

11

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 pipe spec thd 45 deg

1шт.

12

1327739C1

SHAFT

unloader vertical auger, replaces 183489C2

1шт.

13

192835C1

AUGER

ASSY, unloader vertical

1шт.

14

192847C1

ROD

drive housing front

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

SCREW, 3/8 x 1-1/2 h/hd flange

1шт.

15

192848C1

ROD

drive housing rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

SCREW, 3/8 x 1-1/2 h/hd flange

1шт.

16

191087C1

PLATE

BAR, grain tank bottom auger front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

17

192828C1

SUPPORT

auger housing LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

18

192475C3

HOUSING

ASSY, unloader lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

151670C1

SHIM

5шт.

19

192834C1

CHANNEL

vertical support

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

20

191110C1

COVER

grain tank bottom rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

21

155909C1

LATCH

unloader lower door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 znd std-hd

1шт.

22

195332C1

U-BOLT,1/4" - 20 x 2 1/2", Low Carbon Steel

BOLT, lower auger door, U-BOLT

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 p/t lock type 5

1шт.

23

195329C1

FLAP

DOOR ASSY, unloader lower auger

1шт.

24

393069R1

PIN,6.35mm OD x 147.3mm L

lower auger door

1шт.

25

192829C1

SUPPORT

auger housing RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

26

192830C92

TUBE

ASSY, vertical auger, includes ref. no. 27

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

27

178134C2

RING

unloader tube upper

1шт.

28

192849C1

SUPPORT

ASSY, vertical auger

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

29

195400C1

SPACER

PIPE, unloader tube support

1шт.

25759R1

BOLT,Hex, 3/8" - 16 x 7 1/2", Gr 8

3/8 x 7-1/2 PHC type 8

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

30

188330C1

SUPPORT ASSY.

SUPPORT ASSY, tank top rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

31

191189C1

SUPPORT

unloader

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

32

191126C1

SUPPORT

ASSY, unloadr tube cylinder

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

33

186112C1

SUPPORT ASSY.

SUPPORT ASSY, cylinder RH rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

34

A21619

CIRCLIP

RING, horizontal and vertical shaft snap

3шт.

35

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

1.406 x 2.25 x .12, hard

4шт.

36

188446C1

WASHER,35.71mm ID x 50.8mm OD x 0.76mm Thk

1.406 x 2.00 x .03, hard

9шт.

37

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

1.406 x 2.25 x .12, hard

1шт.

37

183490C1

WASHER

WASHER, vertical shaft upper

1шт.

38

186137C2

SUPPORT

unloader drive gears

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

39

186138C1

SUPPORT

unloader drive gear

2шт.

40

185026C1

ANGLE

AUGER, unloader drive shield, Serial Range: -6530

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

41

185027C1

SHIELD

unloader drive, Serial Range: -6530

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
