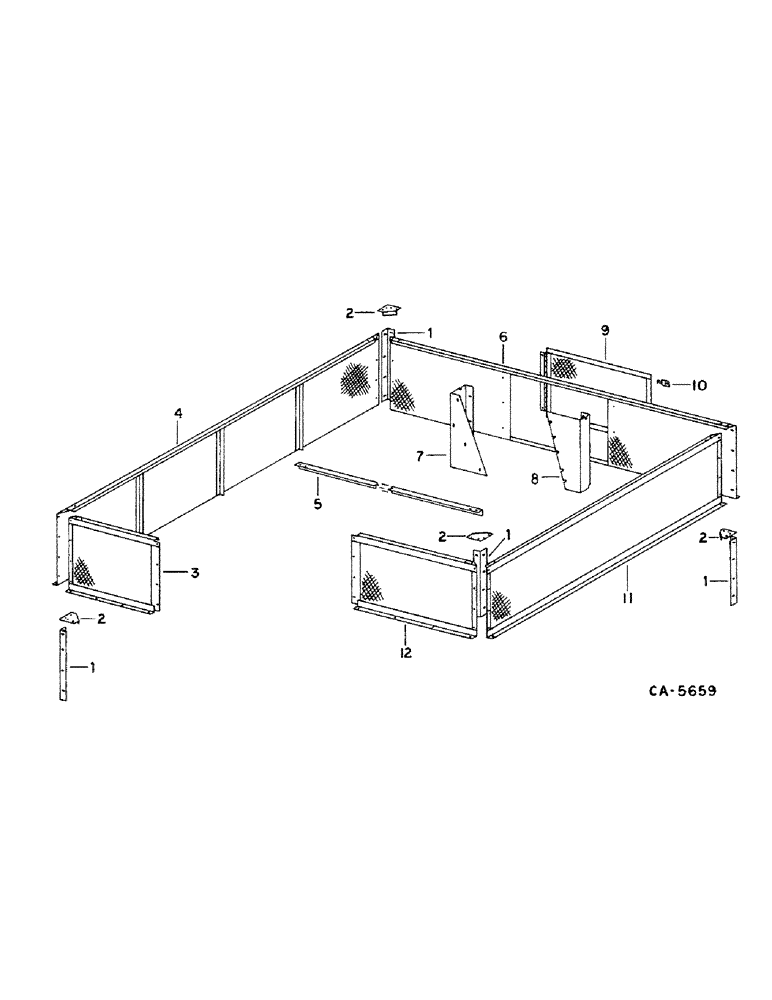

Запчасти Case IH 1460 (26-05) - GRAIN TANK, GRAIN TANK EXTENSIONS, GRAIN, CORN AND RICE Grain Tank

1

195387C1

ANGLE

extension corner

4шт.

2

191134C1

SUPPORT

extension

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

3

195367C2

EXTENSION ASSY.

SCREEN ASSY, left front extension

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

195357C1

SCREEN

ASSY, front extension

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

195391C1

ANGLE

extension cross

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

6

195376C2

EXTENSION ASSY.

SCREEN ASSY, RH extension, for grain and corn

1шт.

6

1308947C2

GRATE

SCREEN ASSY, RH extension, for rice combine, for grain and corn with raised level auger, not rice harvest

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

7

195389C1

PROTECTIVE COVER

SUPPORT, elevator front, for grain and corn

1шт.

7

1308949C2

SUPPORT

elevator front, for rice combine, for grain and corn with raised level auger, not rice harvest

1шт.

8

195388C1

PROTECTIVE COVER

SUPPORT, elevator rear, for grain and corn

1шт.

8

1308950C2

SUPPORT

elevator rear, for rice combine, for grain and corn with raised level auger, not rice harvest

1шт.

9

195382C2

EXTENSION

SCREEN ASSY, elev. door

1шт.

10

167800C1

CLIP

door retainer

2шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10 x 3/4 znp p/hds mach

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

11

195363C3

SCREEN

ASSY, rear extension

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

12

195372C2

EXTENSION ASSY.

SCREEN ASSY, left rear extension

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.
