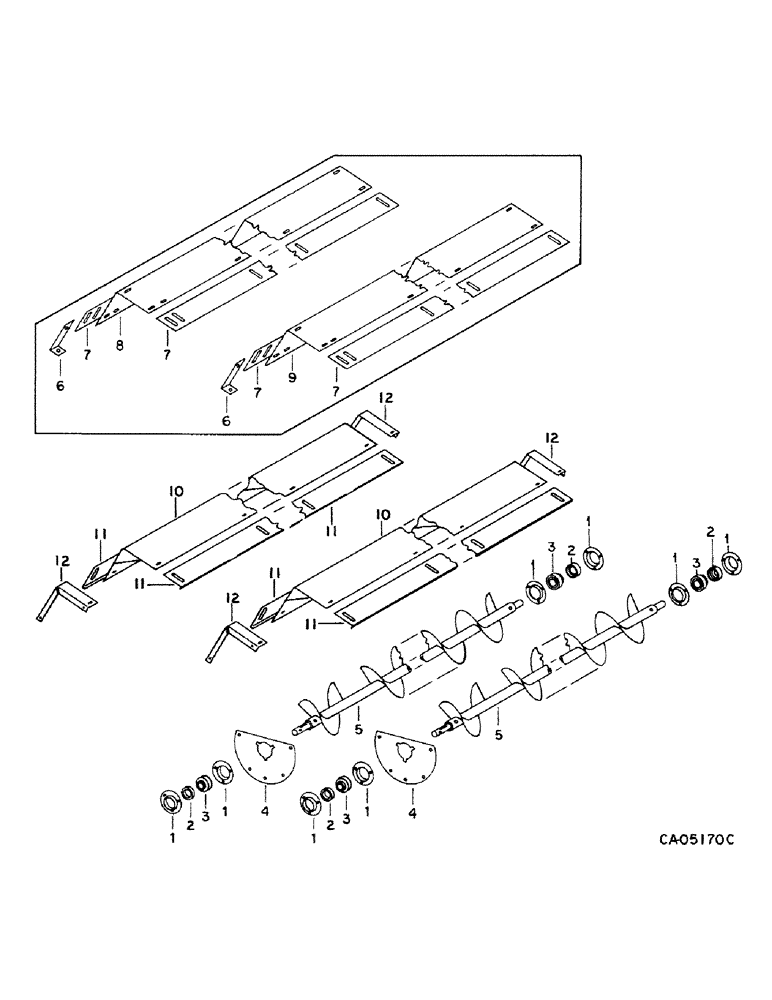

Запчасти Case IH 1460 (26-03) - GRAIN TANK, GRAIN TANK BOTTOM AUGERS Grain Tank

1

462360R1

FLANGED BEARING

bottom auger bearing

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

2

455102R21

COLLAR

W/SET SCREW, bearing

4шт.

3

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

auger

4шт.

4

192789C1

RETAINER

bottom auger brg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

5

192784C1

AUGER

ASSY, grain tank bottom

2шт.

6

192779C1

SUPPORT

auger cover, Serial Range: -62000

16шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

7

192782C1

BAR

auger cover extension, Serial Range: -62000

4шт.

8

192781C1

ANGLE

auger cover

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

9

192781C1

ANGLE

auger cover rear, Serial Range: -62000

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

1321081C1

COVER

ASSY, cross auger, Start Serial: 62001

2шт.

11

1321089C1

PLATE

EXTENSION, auger cover, Start Serial: 62001

4шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 crg type 5

1шт.

25708R1

WASHER

.344 x .688 x .089 hdn

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

12

1321242C1

SUPPORT

cover end, Start Serial: 6201

4шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.
