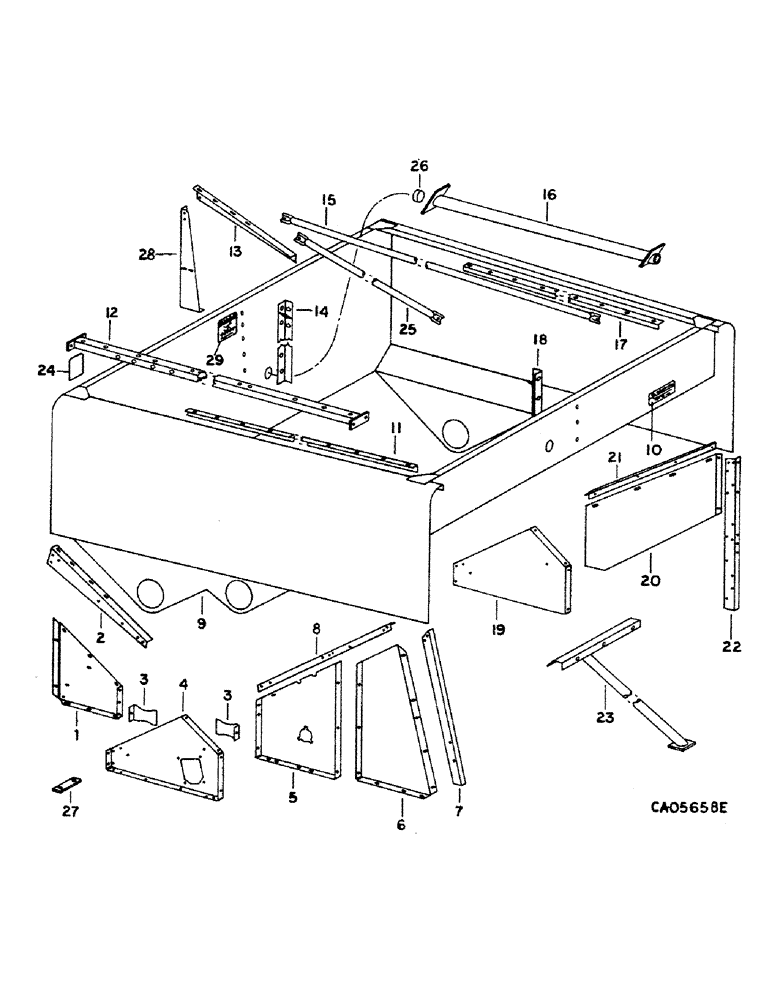

Запчасти Case IH 1460 (26-01) - GRAIN TANK Grain Tank
№
Артикул
Название
Примечание
Количество
1
192770C3
COVER
SUPPORT, grain tank front support LH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
2
192768C2
SUPPORT
grain tank diagonal LH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 C-Z flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt-truss-hd
1шт.
193531C1
SUPPORT
filler
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
4
192771C2
SUPPORT
grain tank center LH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
3/8 x 1 slt-truss-hd
1шт.
5
193471C1
SUPPORT
grain tank rear support fixed LH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
6
192777C1
SUPPORT
grain tank rear LH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
7
192775C1
SUPPORT
grain tank rear vertical LH
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
3/8 x 1 slt-truss-hd
1шт.
8
192773C1
ANGLE
grain tank rear bottom LH
1шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
1/2 x 1 znp hex-hd flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
195312C1
FLANGE NUT,Flg, USR, 1/2"-13, G8
1/2 PHC flange lock type 8
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
9
1319641C92
TANK
ASSY, grain, replaces 182518C92, includes ref nos 24 & 29
1шт.
10
188186C1
PRODUCT GRAPHIC
caution rotor drive, Serial Range: -1500
1шт.
11
195397C3
ANGLE
tank top left
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt-truss-hd
1шт.
12
192855C1
SUPPORT
ASSY, grain tank tie
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
13
192769C2
SUPPORT
grain tank diagonal RH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
14
188417C1
ANGLE
ASSY, grain tank tie front
1шт.
Holes on left and right side of tank must be drilled by dealer. Left hole is located to the left of ref #14. Right hole is accross from it next to ref. #18.
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
15
192767C1
ROD
grain tank tie
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
3/8 x 1 slt-truss-hd
1шт.
16
192762C1
TUBE ASSY.
TUBE ASSY, grain tank wiring
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
17
195398C2
ANGLE
tank top right
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
18
188416C1
ANGLE
ASSY, grain tank tie rear
1шт.
Holes on left and right side of tank must be drilled by dealer. Left hole is located to the left of ref #14. Right hole is accross from it next to ref. #18.
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
19
192772C2
SUPPORT
grin tank center RH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
20
192474C1
SUPPORT
grain tank RH
1шт.
199953C1
SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"
SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
21
192774C1
SUPPORT
grain tank rear bottom RH
1шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
1/2 x 1 znp hex-hd flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
195312C1
FLANGE NUT,Flg, USR, 1/2"-13, G8
1/2 PHC flange lock type 8
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
22
192776C1
SUPPORT
grain tank rear vertical RH, Serial Range: -23249
1шт.
22
181392C2
SUPPORT
grain tank rear vertical RH, Start Serial: 23250
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
23
186118C1
SUPPORT ASSY.
SUPPORT ASSY, grain tank rear
1шт.
204060C1
BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"
SCREW, 1/2 x 1-1/4 hex-hd flange
1шт.
195312C1
FLANGE NUT,Flg, USR, 1/2"-13, G8
1/2 PHC flange lock type 8
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
24
1319494C1
PRODUCT GRAPHIC
caution, small
1шт.
25
188414C1
ROD
grain tank tie
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
3/8 x 1 slt-truss-hd
1шт.
26
179970C1
PAD
center harness wiring tube seal
2шт.
27
(Not used in this application)
1шт.
28
(Not used in this application)
1шт.
29
1319495C1
PRODUCT GRAPHIC
caution, large, located on inside of front sheet
1шт.
Выбрано товаров: 98
