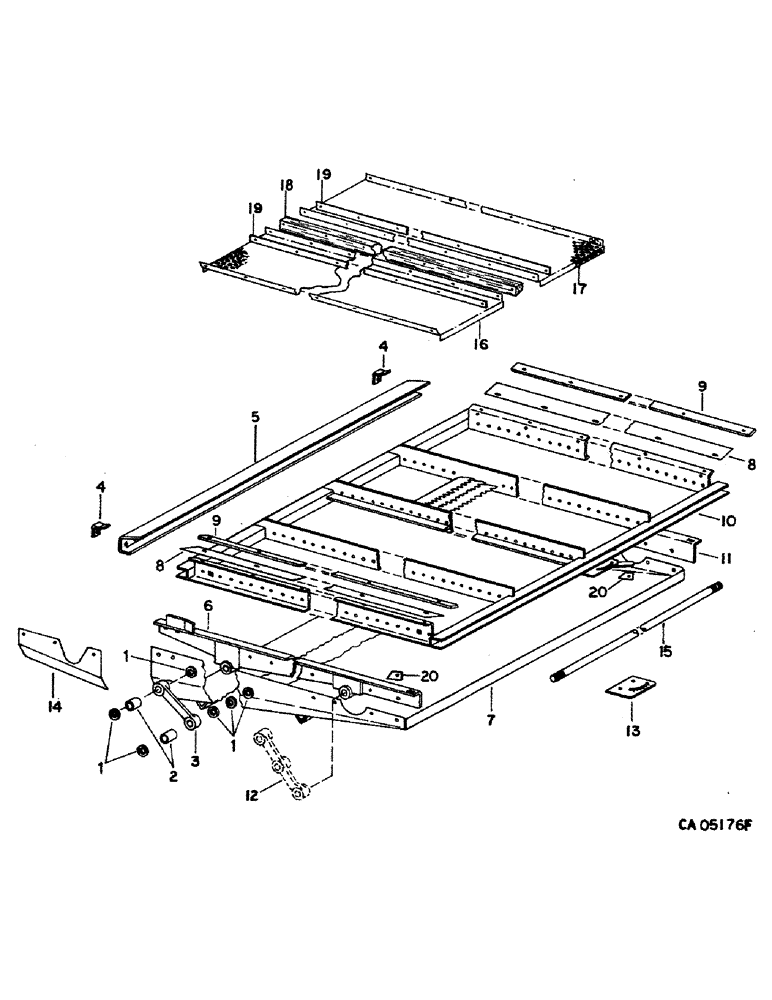

Запчасти Case IH 1460 (23-07) - AUGER BED, SHOE AND SHOE SIEVE, SHOE SIEVE Grain Pan, Shoe & Shoe Sieve

1

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

shoe hanger arm bushing

12шт.

2

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, shoe hanger arm

4шт.

3

175160C91

LEVER

HANGER ASSY, shoe front, includes ref. no. 2

2шт.

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

BOLT, 5/8 x 3-1/4 crg type 1

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-1/4 type 8

1шт.

9412231

NUT

5/8 PHC p/t lock type 8

1шт.

4

185498C2

CLIP

shoe front support, one position

2шт.

4

182684C2

CLIP

shoe front retainer, two position

2шт.

120376

NUT,5/16"-18, G5

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

1319238C1

ANGLE

shoe front, replaces 182693C1, one position, for machines with, one, position angle furnish package 1300136C91

1шт.

120376

NUT,5/16"-18, G5

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

1302070C3

SUPPORT

ASSY, shoe side LH, one position, for machines with, one, position, LH, support furnish package 1300136C91

1шт.

Listed as two position in the 1440 catalog.

1шт.

7

1319211C1

BOTTOM

ASSY, shoe return pan, replaces 191763C1, Start Serial: 32001

1шт.

7

1319211C1

BOTTOM

ASSY, shoe return pan, replaces 191763C1, furnish package 1319275C91, Serial Range: -32000

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

8

192192C1

SEALING STRIP

shoe sieve

2шт.

9

192193C1

BAR

shoe sieve seal

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

10

192091C2

GRAIN SIEVE

SIEVE ASSY, shoe

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

10

194348C1

GRAIN SIEVE

SIEVE, shoe 1/10 rd holes, parts accessory

1шт.

10

194349C1

GRAIN SIEVE

SIEVE, shoe 7/32 rd holes, parts accessory

1шт.

10

194350C1

GRAIN SIEVE

SIEVE, shoe 3/8 rd holes, parts accessory

1шт.

10

194351C1

GRAIN SIEVE

SIEVE, shoe 1/2 rd holes, parts accessory

1шт.

10

1302234C1

GRAIN SIEVE

SIEVE, shoe 1-5/8 close slat, parts accessories

1шт.

11

1302071C3

SUPPORT

ASSY, shoe side RH, one position, for machines with, one, position, RH, support furnish package 1300136C91

1шт.

12

LEVER ASSY, shoe, refer to this group under chaffer sieve

1шт.

13

186675C1

ADJUSTING PLATE

shoe lever

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT, 1/4 x 1/2 crg type 5

1шт.

86627130

WING NUT,1/4"-20

NUT, 1/4 wing

1шт.

14

1302335C2

SUPPORT

forward shoe LH

1шт.

14

1302336C2

SUPPORT

forward shoe RH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

15

1319217C1

ROD

return pan bottom rear

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t type 5

1шт.

16

1319285C1

SCREEN

perforated side section, for use with sieve, 192091C2

2шт.

17

1319286C1

SCREEN

perforated mid section, for use with sieve, 192091C2

2шт.

18

1319284C1

BAR

wood spacer, for use with sieve, 192091C2

1шт.

19

1319300C1

BAR

screen fastener backing, for use with sieve, 192091C2

8шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

1319219C1

PLATE

BAR, shoe return pan filler

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

1300136C93

PACKAGE

LH & RH shoe supports, for conversion to two position, includes ref nos. 4, 5, 6, & 11

1шт.

P/N 1300136C93 one position pkg. 2 position eliminated.

1шт.

1319278C91

PACKAGE

ASSY, alfalfa, consists of

1шт.

1319258C1

COVER

SUPPORT, chaffer finger cover

1шт.

1319238C1

ANGLE

SUPPORT, rail front cross

1шт.

1319285C1

SCREEN

perforated side section

1шт.

1319286C1

SCREEN

perforated mid section

1шт.

1319284C1

BAR

shoe sieve

1шт.

1319300C1

BAR

screen fastener backing

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Instructions (NSS) 1/4"

1шт.

1319275C91

COWL

PACKAGE ASSY, shoe return with increased slope, parts accessory, consists of, instructions (NSS)

1шт.

1919211C1

BOTTOM ASSY, shoe return pan

1шт.

1319217C1

ROD

return pan bottom rear

1шт.

1302335C2

SUPPORT

forward shoe return, LH

1шт.

1302336C2

SUPPORT

forward shoe return, RH

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

1шт.
