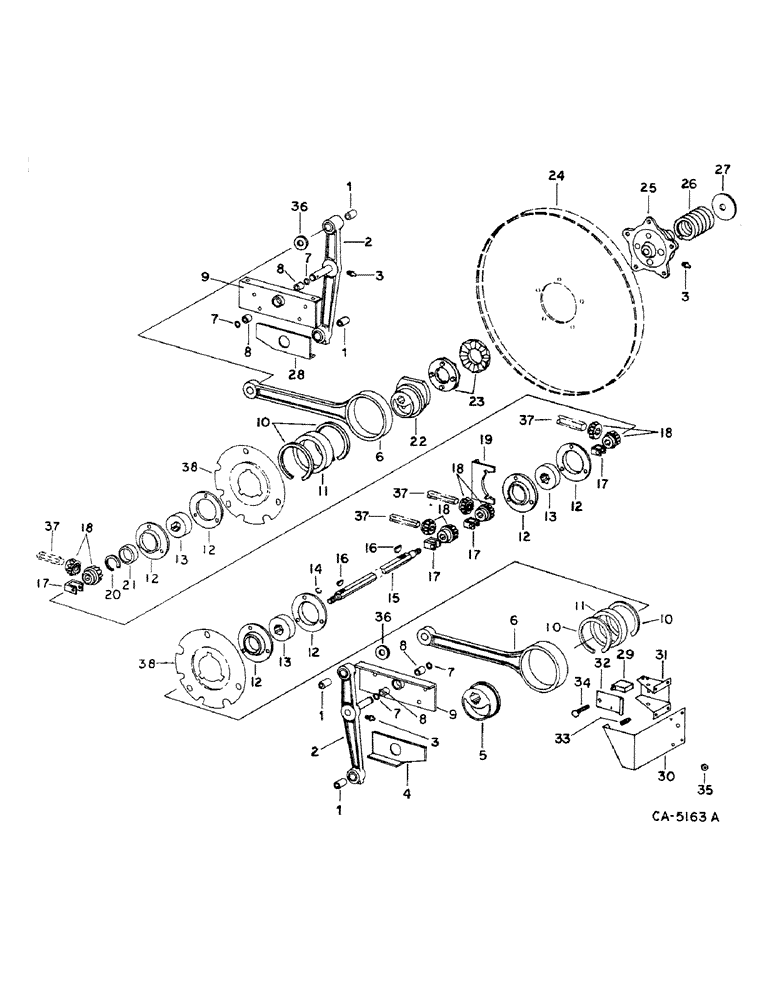

Запчасти Case IH 1460 (23-03) - AUGER BED, SHOE AND SHOE SIEVE, SHAKER SHAFT AND AUGER DRIVE, S/N 1500 AND BELOW Grain Pan, Shoe & Shoe Sieve

1

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

chaffer drive hanger arm

4шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

21714R1

WASHER

.906 x 1.500 x .105

1шт.

2

191432C91

LEVER ASSY.

LEVER ASSY, chaffer drive hanger, includes ref. no. 1

2шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

5/8 x 3-1/2 type 8

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-1/2 type 8

1шт.

20033R1

LOCK NUT

NUT, 5/8 CAD p/t lock type 5

1шт.

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

.641 x 1.25 x .120 gage znd

1шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 str self-tap lub

3шт.

4

186684C1

SUPPORT

seal chaffer rail LH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

.344 x 1 x .054 znd

1шт.

5

183053C2

ECCENTRIC

CAM, shaker pitman drive LH

1шт.

6

186549C1

PITMAN

shaker shaft

2шт.

7

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

front hanger support bearing

4шт.

8

551139R91

BEARING, NEEDLE

BEARING, front hanger support

4шт.

9

194649C91

SUPPORT ASSY.

SUPPORT ASSY, front hanger, includes ref. nos. 7 and 8

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 type 1

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

10

892775C1

SNAP RING,#475, 5.070", Int

RING, shaker shaft pitman brg snap, replaces 630508C1

2шт.

11

193132C91

BALL BEARING,82.55mm ID x 120.65mm OD x 25.4mm W

BEARING, shaker shaft pitman

2шт.

12

617863R1

FLANGED BEARING

RETAINER, shaker shaft bearing

6шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/. znd flange lock

1шт.

13

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, shaker shaft

3шт.

14

132550H1

RING

shaker shaft bearing snap

1шт.

15

194178C1

SHAFT

shaker

1шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4 CAD p/t lock type 5

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

1шт.

16

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

17

225265R1

CLAMP

YOKE, auger bed gear

4шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18

185411C1

GEAR-SET

GEAR SET, auger drive bevel, 17T, matched set

4шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

19

186589C1

SUPPORT

auger drive center brg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/. znd flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

20

132550H1

RING

shaker shaft pitman

1шт.

21

935856R1

BUSHING

shaker shaft pitman

1шт.

22

191429C2

CAM

shaker shaft pitman drive RH

1шт.

23

B12170

RATCHET,Clutch Slip, 94.49mm

shaker shaft drive slip clutch

2шт.

24

PULLEY, shaker shaft driven, refer to group 20 under R.H. drive

1шт.

25

195287C1

HUB

shaker shaft drive slip clutch

1шт.

26

19302K

SPRING

shaker shaft drive slip clutch

2шт.

27

388418C1

SPECIAL WASHER,19.84mm ID x 81.28mm OD x 6.35mm Thk

slip clutch retainer

1шт.

28

186684C1

SUPPORT

seal chaffer rail RH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

.344 x 1 x .54 znd

1шт.

29

574649R91

SWITCH

ASSY, auger alarm

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

159358

PIN

no. 6 x 1-1/4 znd slt

1шт.

492-11006

LOCK WASHER,#6

Lock, #6

1шт.

103337

WASHER,#6

1шт.

30

194776C1

SUPPORT

auger alarm switch

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

31

167323C1

SUPPORT

auger alarm switch

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21963R1

HEADED PIN,1/4" x 2 1/2"

PIN, 1/4 x 2.500 hd type 1

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

1шт.

32

167324C1

HINGE

STRIP, auger alarm switch

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

23099R1

HEADED PIN,5/16" x 3"

PIN, 5/16 x 3 znd std-hd

1шт.

33

M296

SPRING

alarm switch strap return

1шт.

34

194304C1

STOP

ASSY, auger alarm switch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

35

117959

GROMMET,5/16" ID x .719" x .062"

5/16 ID x .72 OD

1шт.

36

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

1шт.

37

AUGER ASSY, refer to this group under auger bed

4шт.

38

193978C1

RETAINER

shaker shaft

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
