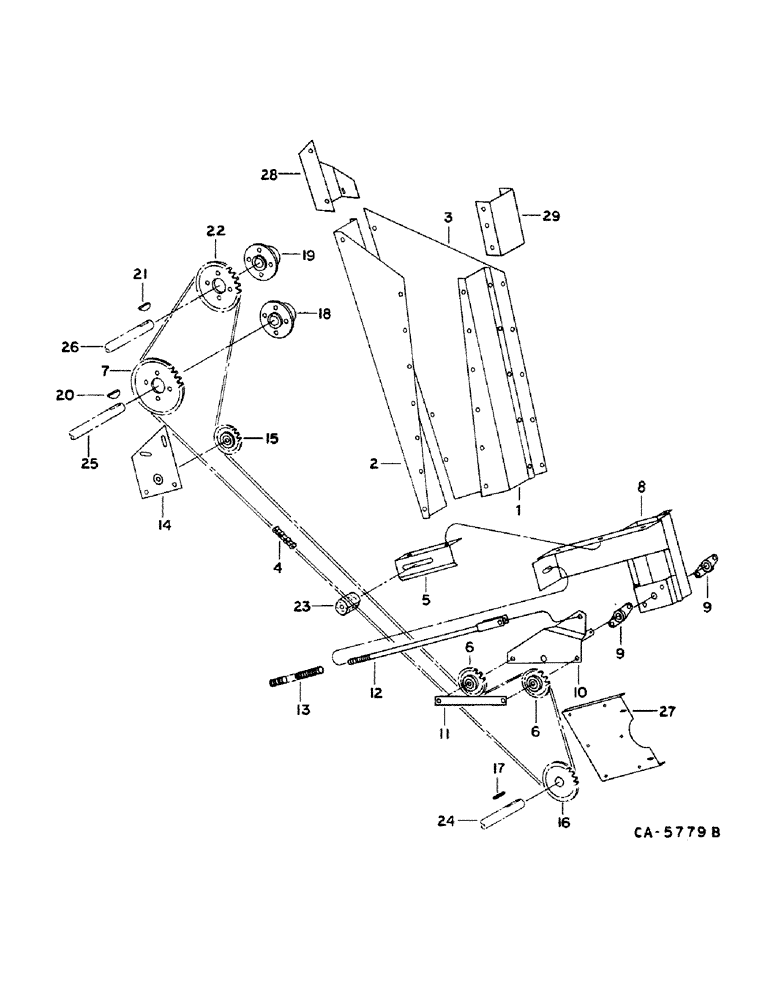

Запчасти Case IH 1460 (25-17) - GRAIN AND TAILINGS ELEVATORS, ELEV. DRIVE, GRAIN AND CORN, S/N 12001 AND ABV, RICE S/N 5501 AND ABV Elevators

1

188027C1

SHIELD

inner elevator upper, for grain & corn

1шт.

1

185274C1

SHIELD

inner elevator upper, for rice, for grain and corn with raised level auger

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

188026C1

SHIELD

inner elevator lower, for grain & corn

1шт.

2

185275C2

SHIELD

inner elevator lower, for rice, for grain and corn with raised level auger

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

188028C1

SHIELD

outer elevator, for grain & corn

1шт.

3

185276C2

SHIELD

outer elevator, for rice, for grain and corn with raised level auger

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

CHAIN ASSY, elevator drive, f

1шт.

For grain and corn combines without raised level auger use 259 links from 10 roll marked 1791D and and one connection link 1310D, for grain and corn combines with raised level auger use 283 links from 10 ft roll marked 1791D and one connecting link 1310D

1шт.

4

CHAIN ASSY, elevator drive, for rice, furnish 255 links from 10 ft roll marked 1791D and one connecting link 1310D, Serial Range: 5501-12000

1шт.

4

CHAIN ASSY, elevator drive, for rice, furnish 289 links from roll marked 1791D and one connecting link 1310D, Start Serial: 12001

1шт.

5

1302487C1

SUPPORT

elevator tightener block

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

631905R91

SPROCKET

elevator chain idler, 17T

2шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

7

188189C1

SPROCKET ASSY.

SPROCKET, grain elevator spout, 33T, for grain & corn, slow speed

1шт.

7

188188C1

SPROCKET ASSY.

SPROCKET, grain elevator spout, 27T, for grain & corn, fast speed

1шт.

7

183177C1

DRIVE SPROCKET

SPROCKET, grain elevator spout, 42T, for rice

1шт.

7

168149C2

SPROCKET ASSY.

SPROCKET, grain elevator spout, 24T, parts accessory, grain, corn and rice

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25709R1

WASHER

.406 x .812 x .089 hdn

1шт.

8

182765C1

SUPPORT

ASSY, idler pivot

1шт.

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21403R1

WASHER

.406 x 1.000 x .120

1шт.

9

A63366

SPHERICAL BEARING,19mm ID

BEARING ASSY, idler pivot, replaces 382508R91

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

182758C1

ARM

ASSY, double idler pivot

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

495-11081

WASHER,3/4", SAE

.812 x 1.469 x .108 (or as required)

6шт.

11

182771C1

BAR

double idler tie

1шт.

12

182768C1

ROD ASSY.

ROD ASSY, idler spring tension

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

22444R1

CLEVIS PIN,3/8" x 1"

PIN, 3/8 x 1.000 clevis

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

13

523677R1

SPRING

double idler tensioning

1шт.

14

182777C1

SUPPORT ASSY.

SUPPORT ASSY, stationary idler

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

15

631905R91

SPROCKET

stationary idler, 17T

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC hdn

1шт.

16

192139C2

SPROCKET

ASSY, grain and tailings elevator drive, 25T

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8 x 1 sq/hd c/pt set

1шт.

25932R1

JAM NUT,Jam, 3/8"-16, G5

3/8 PHC jam type 8

1шт.

17

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 SAE B Woodruff

1шт.

18

1302217C1

HUB

grain spout drive sprocket, Serial Range: -52000

1шт.

18

1302216C1

HUB

grain spout drive sprocket, Start Serial: 52001

1шт.

26202R1

SET SCREW

3/8 x 1-1/4 PHC sq/hd c/pt set

1шт.

25932R1

JAM NUT,Jam, 3/8"-16, G5

3/8 PHC jam type 8

1шт.

19

1302216C1

HUB

grain elevator drive sprocket

1шт.

26202R1

SET SCREW

3/8 x 1-1/4 PHC sq/hd c/pt set

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

, Serial Range: -52000

1шт.

20

124554

O-RING

5/16 x 1 SAE B Woodruff, Start Serial: 52001

1шт.

21

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 SAE B Woodruff

1шт.

22

188188C1

SPROCKET ASSY.

SPROCKET, grain elevator headshaft, 27T, tor grain and corn

1шт.

22

188189C1

SPROCKET ASSY.

SPROCKET, grain elevator headshaft, 33T, for rice

1шт.

22

168149C2

SPROCKET ASSY.

SPROCKET, grain elevator headshaft, 24T, parts accessory, grain, corn and rice

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25709R1

WASHER

.406 x .812 x .089 hdn

1шт.

23

582018R1

BLOCK

grain elevator drive chain tightener

1шт.

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

1шт.

606546R1

JAM NUT

5/8 hex jam

1шт.

21782R1

WASHER

.656 x 1.500 .054

1шт.

24

SHAFT, elevator drive, refer to this group under tailings elevator drive and jackshaft

1шт.

25

AUGER ASSY, grain delivery, refer to this group under grain elevator

1шт.

26

SHAFT, grain elevator head, refer to this group under grain elevator

1шт.

27

185297C1

TUBE

CHANNEL, elevator jackshaft support, for rice, for grain and corn with raised level auger, Start Serial: 12001

1шт.

28

(Not used this application)

1шт.

29

(Not used this application)

1шт.
