Запчасти Case IH 1460 (25-15) - GRAIN AND TAILINGS ELEVATORS, ELEVATOR DRIVE, GRAIN AND CORN, S/N 12000 AND BELOW Elevators

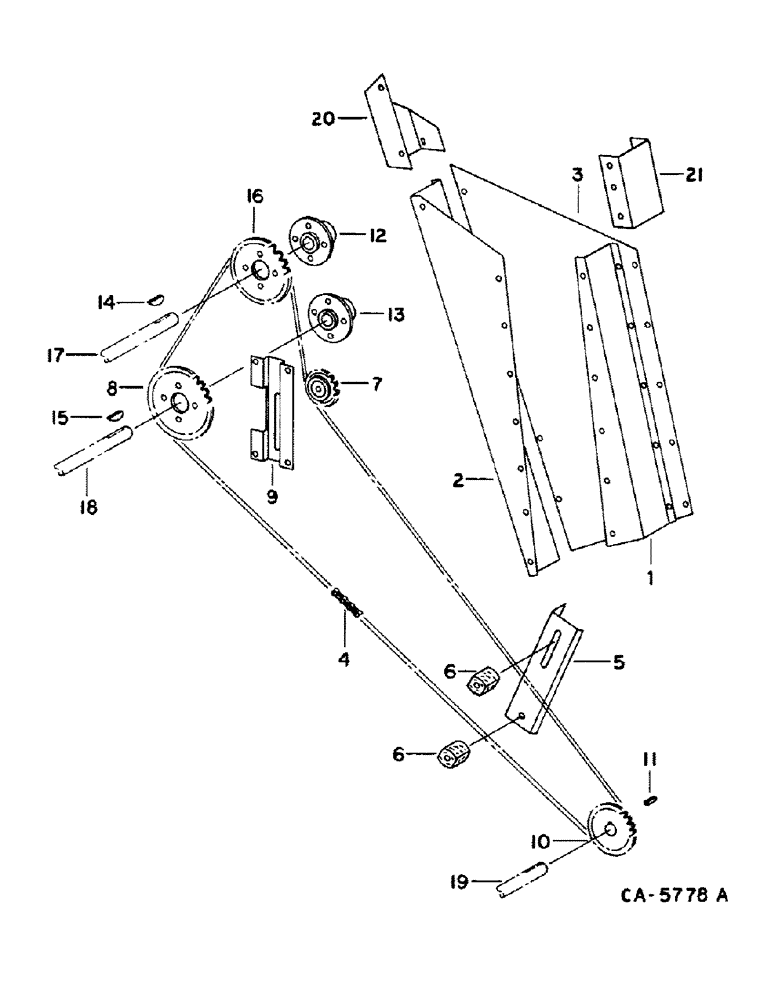

Схема запчастей Case IH 1460 - (25-15) - GRAIN AND TAILINGS ELEVATORS, ELEVATOR DRIVE, GRAIN AND CORN, S/N 12000 AND BELOW Elevators
20
14
21
2
13
8
6
16
18
6
12
19
17
7
11
9
3
5
4
15
1
10

Артикул

Название

Примечание

Количество

1

188027C1

SHIELD

inner elevator upper

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

188026C1

SHIELD

inner elevator lower

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

188028C1

SHIELD

outer elevator

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

CHAIN ASSY, grain elevator drive, use 229 links from 10 ft roll marked 1891D and one connecting link 1310D

1шт.

5

194884C1

SUPPORT

elevator tightener block

1шт.

6

582018R1

BLOCK

elevator drive chain tightener

2шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 crg type 1

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC hdn

1шт.

7

631905R91

SPROCKET

elevator chain idler, 17T

1шт.

598819R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT, 5/8 x 2-1/4 crg type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC hdn

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

.656 x 1.250 x .090 sq/h

1шт.

8

188189C1

SPROCKET ASSY.

SPROCKET, grain elevator spout, 33T

1шт.

8

168149C2

SPROCKET ASSY.

SPROCKET, grain elevator spout, 24T, parts accessory

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25709R1

WASHER

.406 x .812 x .089 hdn

1шт.

9

192964C1

SUPPORT

grain elevator idler

1шт.

10

192139C2

SPROCKET

ASSY, grain and tailings elevator drive, 25T

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8 x 1 znp sq/hd c/pt set

1шт.

25932R1

JAM NUT,Jam, 3/8"-16, G5

3/8 PHC jam type 8

1шт.

11

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

12

1302217C1

HUB

grain elevator drive sprocket

1шт.

26202R1

SET SCREW

3/8 x 1-1/4 PHC sq/hd c/pt set

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

13

1302217C1

HUB

grain elevator driven sprocket

1шт.

26202R1

SET SCREW

3/8 x 1-1/4 PHC sq/hd c/pt set

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

14

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

15

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

16

188188C1

SPROCKET ASSY.

SPROCKET, grain elevator headshaft, 27T

1шт.

16

168149C2

SPROCKET ASSY.

SPROCKET, grain elevator headshaft, 24T, parts accessory

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25709R1

WASHER

.406 x .812 x .089 hdn

1шт.

17

SHAFT, grain elevator head, refer to this group under grain elevator

1шт.

18

AUGER ASSY, grain delivery, refer to this group under grain elevator

1шт.

19

SHAFT, elevator drive, refer to this group under tailing elevator drive and jackshaft

1шт.

20

(Not used this application)

1шт.

21

(Not used this application)

1шт.

Выбрано товаров: 52
