Запчасти Case IH 1460 (25-09) - GRAIN AND TAILINGS ELEVATORS, TAILINGS AUGER TROUGH Elevators

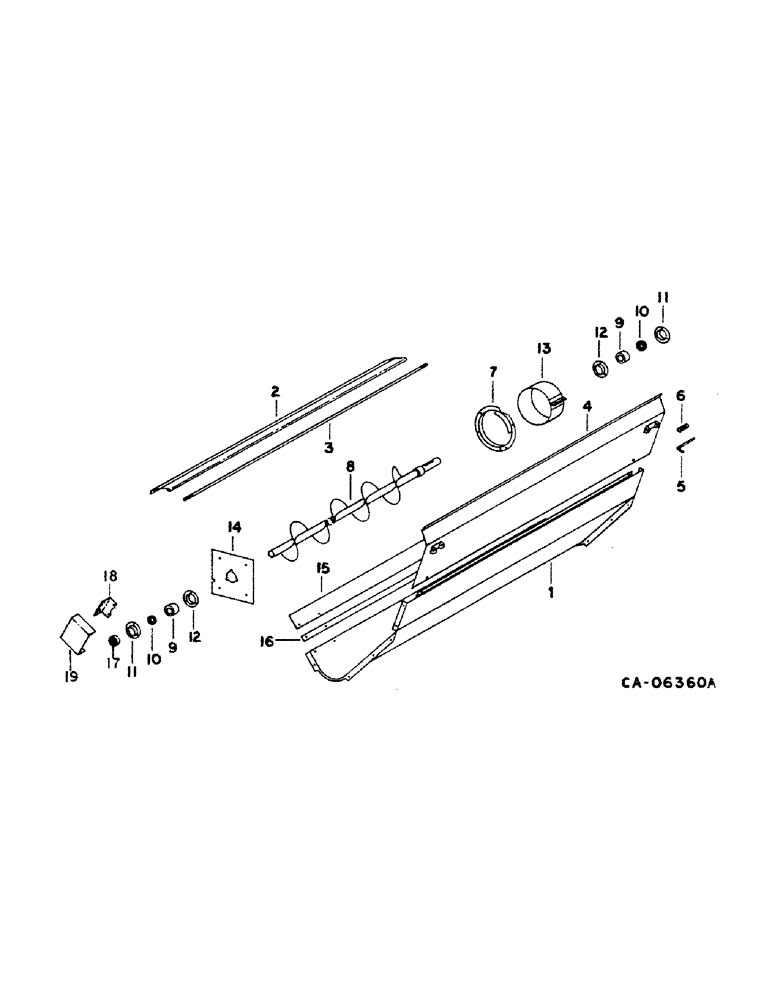

Схема запчастей Case IH 1460 - (25-09) - GRAIN AND TAILINGS ELEVATORS, TAILINGS AUGER TROUGH Elevators
2
19
14
15
1
9
10
9
7
6
11
12
10
11
16
18
3
8
12
5
4
13
17

Артикул

Название

Примечание

Количество

1

191719C1

TROUGH

ASSY, tailings auger, Serial Range: -1500

1шт.

1

186907C2

TROUGH

ASSY, tailings auger, Start Serial: 1501

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

2

185195C1

DOOR

tailings auger trough, Start Serial: 1501

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

3

185198C1

ROD

auger trough door, Start Serial: 1501

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

4

175179C1

GATE ASSY

TAILGATE ASSY, tailings, Serial Range: -1500

1шт.

4

186909C1

DOOR

TAILGATE ASSY, tailings, Start Serial: 1501

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

611044R1

AXLE PIN,6.35mm OD

PIN, tailings tailgate, Serial Range: -1500

2шт.

5

186736C1

ROD

PIN, tailings tailgate, Start Serial: 1501

2шт.

121224

SUPPORT

3/32" x 1"

1шт.

25709R1

WASHER

.406 x .812 x .089 hdn

1шт.

6

606245R1

SPRING

tailgate pin, Serial Range: -1500

2шт.

6

540815R1

SPRING

tailgate pin, Start Serial: 1501

2шт.

7

160324C2

FLANGE

tailings auger

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

8

191734C1

AUGER

ASSY, tailings

1шт.

21789R1

WASHER

1.031 x 1.250 x .054

1шт.

9

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

ASSY, tailings auger

2шт.

10

455102R21

COLLAR

W/SET SCREW

2шт.

11

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE W/LUB FITTING, auger brg, replaces 937518C91

2шт.

12

937517R1

FLANGE

auger brg grooved

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

195078C1

SCREEN

ASSY, tailings auger extension grain and corn, perforated

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

13

192693C1

CLAMP

ASSY, tailings auger extension, non-perforated

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

1шт.

14

192357C2

BAR

left bearing support

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

15

191726C1

STRIP

tailings auger trough, Serial Range: -1500

1шт.

16

191727C1

BAR

auger trough seal, Serial Range: -1500

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

17

178801C1

COLLAR

sensor

1шт.

18

187615C2

BRACKET

sensor

1шт.

19

187616C1

SUPPORT

sensor

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

Выбрано товаров: 54
