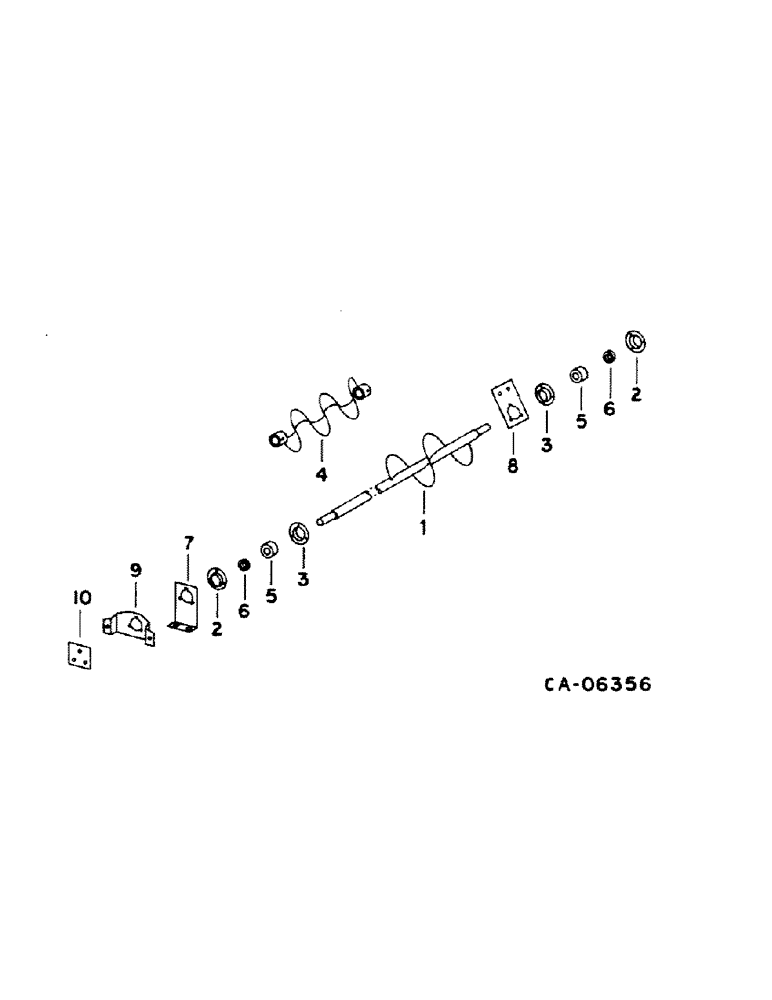

Запчасти Case IH 1460 (25-06) - GRAIN AND TAILINGS ELEVATORS, GRAIN DELIVERY AUGER Elevators

1

1319710C1

AUGER

ASSY, delivery, replaces 191913C1, for grain and corn

1шт.

1

1319842C1

AUGER

ASSY, delivery, replaces 185294C1, for rice

1шт.

1

1319709C1

AUGER

ASSY, delivery, for grain and corn with raised level auger

1шт.

2

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE W/LUB FITTING, auger brg, (2) required w/augers 191913C1 and 185294C1, (1) required w/augers 1319710C1 and 1319842C1 at left end of auger

1шт.

2

167878C11

FLANGE

W/LUG FITTING AUGR BEARING, for use w/augers 1319710C1 and 1319842C1 at right end of auger

1шт.

3

937517R1

FLANGE

auger brg grooved, (2) required w/augers 191913C1 and 185294C1, (1) required w/augers 1319710C1 and 1319842 at left end of auger

1шт.

3

202909C1

BEARING HOUSING

FLANGE, auger bearing grooved, for use w/augers 1319710C1 and 1319842C1 at right end of auger

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

162103C91

AUGER

ASSY, distribution, 1 for grain and corn without raised level auger, 2 for grain and corn with raised level auger, 2 for rice

1шт.

102604

SET SCREW,Hex Skt, 7/16" - 14 x 1/2"

1шт.

5

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

delivery auger, (2) required w/augers 191913C1 and 185294C1, (1) required w/augers 1319710C1 adn 1319842C1 at left end of auger

1шт.

5

939475R92

BEARING ASSY

delivery auger, for use w/augers 1319710C1 and 1319842C1 at right end of auger

1шт.

6

455102R21

COLLAR

brg locking, (2) required w/augers 191913C1 and 185294C1, (1) required w/augers 1319710C1 and 1319842C1 at left end of auger

1шт.

6

557115R11

COLLAR

COLLAR, bearing locking, for use w/augers 1319710C1 and 1319842C1 at right end of aguer

1шт.

7

(Not used this application)

1шт.

8

183466C1

BAR

distribution auger brg RH, for use w/augers 191913C1 and 185294C1

1шт.

8

1319839C1

PLATE

BAR, distribution auger brg RH, for use w/augers 1319710C1 and 1319842C1

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

185030C1

SUPPORT ASSY.

SUPPORT, leveling auger brg, for rice, for grain and corn with raised level auger

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

10

626582R1

COVER

distributor auger shaft hole, for rice

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

1319967C91

PACKAGE

ASSY, auger, consists of, Serial Range: -52000

1шт.

Delivery auger 1319710C1 or 1319842C1 must be ordered for use with this package

1шт.

1319711C1

PANEL

SIDE ASSY, head, RH

1шт.

1319839C1

PLATE

auger bearing

1шт.

939475R92

BEARING ASSY

auger

1шт.

557115R11

COLLAR

COLLAR, bearing

1шт.

167878C11

FLANGE

bearing

1шт.

202909C1

BEARING HOUSING

FLANGE, bearing

1шт.

1302216C1

HUB

auger sprocket

1шт.

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock, (NSS) instructions

1шт.

SB5087 - Grain leveling auger & spout data for heavier leveling auger.

1шт.
