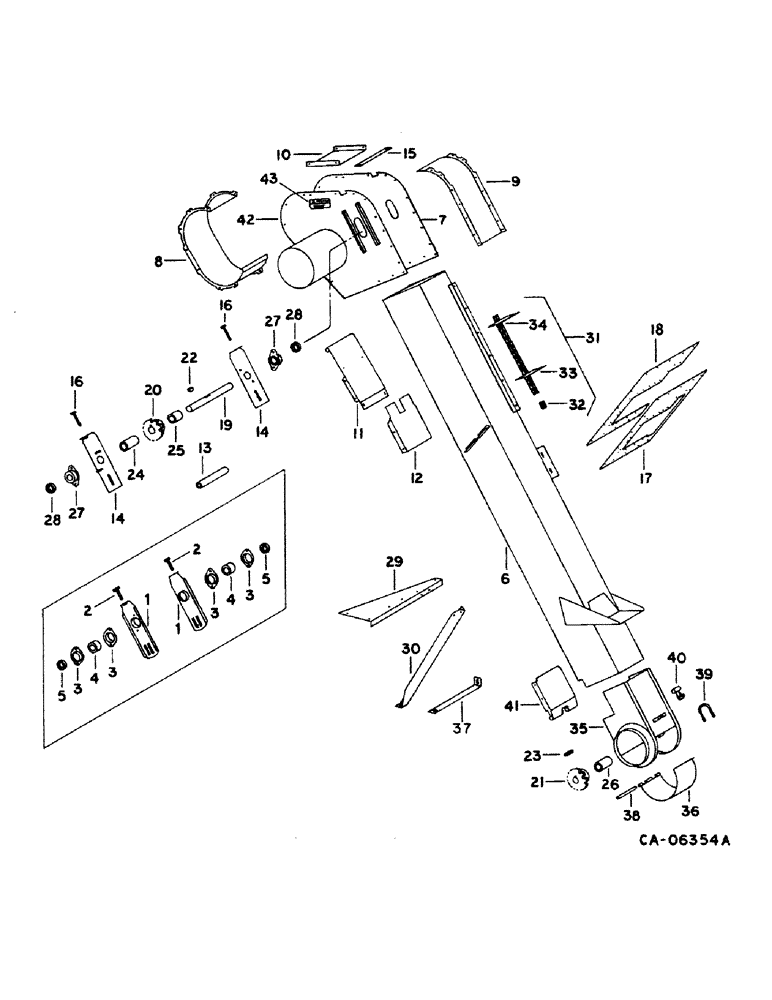

Запчасти Case IH 1460 (25-01) - GRAIN AND TAILINGS ELEVATORS, GRAIN ELEVATOR Elevators

1

170584C11

BRACKET

SUPPORT ASSY, elevator head shaft, Serial Range: -12000

2шт.

2

191200C1

BOLT,7/6" - 14 x 4.50", Cl 5, Full Thd

elevator head, Serial Range: -12000

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

1шт.

3

F9417

FLANGE

elevator head shaft brg, Serial Range: -12000

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, elevator head shaft, Serial Range: -12000

2шт.

5

455102R21

COLLAR

W/SET SCREW, elevator, Serial Range: -12000

2шт.

6

191608C2

ELEVATOR TUBE,115.07" Length

TUBE ASSY, grain elevator, for grain & corn

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

6

186923C1

ELEVATOR TUBE,123.35" Length

TUBE ASSY, grain elevaotr, for rice, for grain and corn with raised level auger

1шт.

7

183463C1

SIDE ASSY.

SIDE ASSY, elevator head RH, Serial Range: -12000

1шт.

7

1302190C1

SIDE ASSY.

SIDE ASSY, elevator head RH, Serial Range: 12001-52000

1шт.

7

1319711C1

PANEL

SIDE ASSY, elevator head, Start Serial: 52001

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

106969R1

WASHER

.344 x 1.250 x .054

1шт.

8

195422C1

SUPPORT ASSY.

SUPPORT ASSY, grain spout cover, for grain & corn

1шт.

P/N 195422c1 looks exactly like illustration. it has the 7 holes on either side. There is another support exactly like P/N 195422c1, which is P/N 188263c1 difference in the two P/N 195422c1 from center of last hole on bottom to bend in metal w/lip is 2 7/8", same dim on 188263c1 is 2.5". The P/N 1309140c1 is just rounded corner of this pc, with only 3 holes on either end descibed as if you just took one of the supports above and cut the top 3/4's off.

1шт.

8

1309140C1

SUPPORT ASSY.

SUPPORT ASSY, grain spout cover, for rice, for grain and corn with raised level auger

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

195415C1

TOP

grain elevator head, for grain & corn

1шт.

P/N 195415C1 as illustrated for low S/N 12001.

1шт.

9

1309136C1

CHANNEL

grain elev. head, for rice, for grain and corn with raised level auger

1шт.

P/N 1309136C1 with top cut off.

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

195424C1

DOOR

grain elevator head, for grain and corn

1шт.

10

1309143C2

SUPPORT

DOOR, grain elev. head, for rice, for grain and corn with raised level auger

1шт.

11

195423C1

COVER

HINGE, grain elevator spout, end

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

21389R1

BOLT,Hex, 5/16" - 18 x 9", Gr 5

5/16 x 9 mach

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

12

193822C1

END

SUPPORT, top false bottom, end, Serial Range: -12000

1шт.

12

183367C1

END

SUPPORT, top false bottom, end, Start Serial: 12001

1шт.

13

191685C2

SPACER

PIPE, headshaft guide lock, spacer

1шт.

14

183363C1

SUPPORT ASSY.

SUPPORT ASSY, elevator head shaft, Start Serial: 12001

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

188020C1

BAR

conveyor chain tightener, Serial Range: -12000

1шт.

15

183382C1

BAR

conveyor chain tightener, Start Serial: 12001

1шт.

16

667486R1

BOLT

BOLT, elevator head, Start Serial: 12001

2шт.

25933R1

JAM NUT,Jam, 1/2"-13, G8

1/2 PHC jam type 8

1шт.

17

194885C1

SEAL

grain elevator, for grain and corn

1шт.

17

185277C1

SHEET

SEAL, grain elevator, for rice, for grain and corn with raised level auger

1шт.

18

194886C2

PLATE

grain elevator seal

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

25708R1

WASHER

.344 x .688 x .089 hdn

1шт.

19

191694C1

SHAFT

grain elevator head, Serial Range: -12000

1шт.

19

186723C1

SHAFT

grain elevator head, Start Serial: 12001

1шт.

Q162

WASHER

1.156 x 1.750 x .054 pln

1шт.

20885R1

WASHER

1.156 x 2.000 x .054

1шт.

20

165292C1

SPROCKET ASSY.

SPROCKET, grain elevator head, 6T, Serial Range: -12000

1шт.

20

1302200C1

SPROCKET ASSY.

SPROCKET, grain elevator head, 7T, Start Serial: 12001

1шт.

21

165292C1

SPROCKET ASSY.

SPROCKET, grain elevator boot, 6T, Serial Range: -12000

1шт.

21

168683C1

SPROCKET

grain elevator boot, 7T, Serial Range: 12001-33285

1шт.

21

1319176C1

SPROCKET ASSY.

SPROCKET, grain elevator boot, 7T, Start Serial: 33286

1шт.

22

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

, Serial Range: -12000

1шт.

22

124554

O-RING

5/16 x 1 Woodruff, Start Serial: 12001

1шт.

23

Y24430

KEY,1/4" Sq x 1 1/2", Par

1/4 x 1-1/2 sq-parallel, Serial Range: -33285

1шт.

23

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 1-1/2 sq-parallel, Start Serial: 33286

1шт.

24

201567C1

SPACER,1" Pipe x 3 3/4"

1.049 x 1.315 x 3.75, Serial Range: -12000

1шт.

24

27953R1

SPACER,1 3/8" Tube x 3 3/4"

1.157 x 1.375 x 3.75, Start Serial: 12001

1шт.

25

516316R1

SPACER

1/49 x 1.315 x 2.5, Serial Range: -12000

1шт.

25

27954R1

SPACER,1 3/8" Tube x 2 9/16"

1.157 x 1.375 x 2.562, Start Serial: 12001

1шт.

26

605822R1

SPACER

1.157 x 1.375 x 2.562, Serial Range: -33285

1шт.

26

1319181C1

SPACER

32.5 x 38.1 x 54 mm, Start Serial: 33286

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

27

1302001C91

ROLLER BEARING,28.57mm ID

grain elevator head shaft, Start Serial: 12001

2шт.

28

557115R11

COLLAR

COLLAR W/SET SCREW, elevator, Start Serial: 12001

2шт.

29

191697C1

SUPPORT

elevator upper

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

21403R1

WASHER

.406 x 1.000 x .120

1шт.

30

194753C2

SUPPORT

elevator lower

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

31

192699C92

CHAIN,149 Links x 41.4mm = 6168.6mm

CONVEYOR ASSY, grain elevator, for grain & corn, Serial Range: -12000

1шт.

31

1302201C91

ELEVATOR CHAIN,CA550, 150 Links x 41.4mm = 6210mm

CONVEYOR ASSY, grain elevator, for grain & corn, Start Serial: 12001

1шт.

31

185028C91

CONVEYOR

ASSY, grain elevator, for rice, Serial Range: -12000

1шт.

31

1302205C91

CONVEYOR

ASSY, grain elevator, for grain and corn with raised level auger, Start Serial: 12001

1шт.

185053C1

RIVET

conveyor flight

1шт.

32

631254R91

DRAG LINK

LINK, connecting

1шт.

23442R1

PIN,2.36mm OD

#550 roller chain "S"

1шт.

32

23880R1

OFFSET LINK

LINK, offset

1шт.

32

631253R91

LINK

plain

1шт.

33

185330C91

LINK

CONVEYOR W/FLIGHT, grain elevator, rubber, Serial Range: -12000

1шт.

33

1302204C91

CONVEYOR

W/FLIGHT, grain elevator, rubber, Start Serial: 12001

1шт.

185053C1

RIVET

elevator flight

1шт.

33

160710C91

STEEL FLIGHT

CONVEYOR W/FLIGHT, grain elevator, steel, Start Serial: 12001

1шт.

33

1302191C92

PALLET

CONVEYOR W/FLIGHT, grain elevator, steel, consists of the following serviceable items

1шт.

1302192C1

STEEL FLIGHT

FLIGHT, steel

1шт.

1302203C1

RUBBER FLIGHT

FLIGHT, conveyor

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

1шт.

34

NSS

NOT SOLD SEPARAT

LINK, attaching, order 1302204C91, for use w/185330C91 and 1302204C91

1шт.

34

150722C91

LINK

attaching for use w/160710C91 & 1302192C91

1шт.

35

191687C2

BOOT

ASSY, grain elevator

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

36

174194C1

DOOR

grain elevator boot corn-perforated

1шт.

36

1309146C1

DOOR

grain elevator boot, non-perforated

1шт.

37

186734C2

SUPPORT

grain elevator

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

38

160748C1

PIN

grain elevator boot door

1шт.

39

664360R1

BOLT,U, 1/4" - 20 x 69.65"

grain elevator boot door

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 p/t lock type 5

1шт.

40

155909C1

LATCH

grain elevator boot door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1.250 hd type 1

1шт.

41

191691C1

END

HINGE, false bottom grain, end

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

42

185113C93

SIDE ASSY.

SIDE ASSY, elevator head LH, includes ref. no. 43, Serial Range: -12000

1шт.

42

1319650C91

PANEL

SIDE ASSY, elevator head LH, replaces 1302222C91, includes ref no. 43, Start Serial: 12001

1шт.

P/N 1319650c91 has separate slide not built into side assembly as P/N 185113c93 is.

1шт.

21389R1

BOLT,Hex, 5/16" - 18 x 9", Gr 5

5/16 x 9 type 5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

43

1319494C1

PRODUCT GRAPHIC

caution, replaces 188197C3

1шт.
