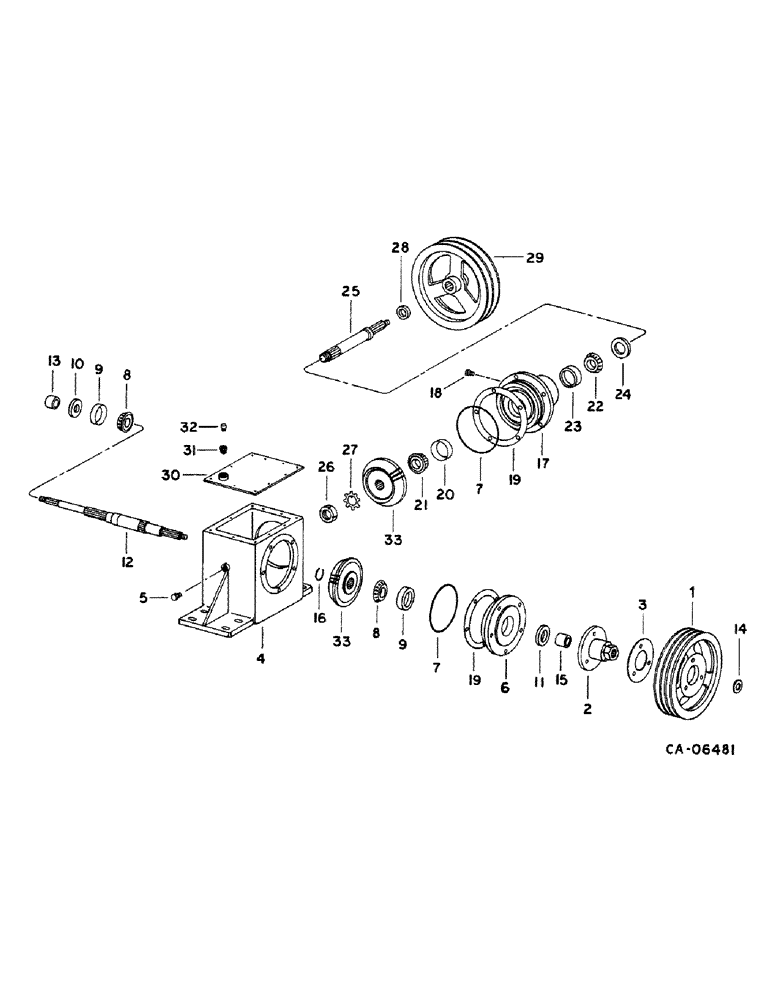

Запчасти Case IH 1460 (07-21) - DRIVE TRAIN, STRAP CHOPPER GEAR CASE, SEPARATOR DRIVE Drive Train

1

181271C1

PULLEY

jackshaft drive, 15.15 in. OD

1шт.

2

181211C1

HUB

jackshaft driven pulley

1шт.

566206R2

BOLT,5/8" - 18 x 2.38", Class 8

hub

3шт.

25676R1

NUT,5/8"-18, G8

5/8-NF phc type 8

1шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 phc hdn

1шт.

3

181363C1

SHIM

driven pulley, .060

1шт.

4

181278C1

BEARING HOUSING

CASE, jackshaft bearing

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

5

20988R1

PLUG,Hex Hd, 1/4"-18, Brass

bearing case pipe

1шт.

6

181274C1

BEARING HOUSING,79.375 mm ID x 177.8 mm OD x 38.1 mm

HUB, jackshaft bearing

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

22414R1

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

5 x 5-1/4 class 5

2шт.

8

298029R91

BEARING ASSY,47.63mm ID x 22.23mm W

BEARING, jackshaft cone

2шт.

9

ST874A

TAPERED BEARING,90.03mm OD x 16mm W

BEARING, jackshaft cup

2шт.

10

181287C1

SEAL,47.65mm ID x 79.5mm OD x 9.53mm Thk

jackshaft hub forward

1шт.

11

181288C1

SEAL,60.33mm ID x 79.5mm OD x 9.53mm Thk

jackshaft hub rear

1шт.

12

181194C2

SHAFT

separator drive

1шт.

9413986

LOCK NUT,1"-8, GC

NUT, 1 phc p/t lock type 8

1шт.

27008R1

LOCK NUT,1 1/4"-7, GC

NUT, 1-1/4 phc p/t lock type 8

1шт.

25847R1

WASHER

1.062 x 2.000 x .209 hdn

1шт.

13

181290C1

SPACER

jackshaft

1шт.

14

25558R1

WASHER,1 3/8" x 2 1/2" x 1/4", HDN

1.375 x 2.50 x .25 phc hdn

1шт.

15

181269C1

SPACER

BUSHING, jackshaft rear

1шт.

16

1315284C1

PACKAGE

retainer ring spacer

1шт.

Consists of ring, snap .102 (NSS), ring, snap .105 (NSS), ring snap .108 (NSS), ring snap .111 (NSS), ring snap .114 (NSS), ring snap .117 (NSS), ring snap .120 (NSS), ring snap .123 (NSS), ring snap .126 (NSS), ring snap .129 (NSS), ring snap .132 (NSS), ring snap .135 (NSS)

1шт.

17

191245C2

HUB

chopper drive

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18

444614

PLUG,Hex Hd, 1/8"-27, Brass

chopper drive hub

2шт.

19

195484C2

SHIM KIT

SHIM, package, consists of shim .005 (NSS), shim .007 (NSS), shim .020 (NSS)

1шт.

20

ST2071

TAPERED BEARING,34.92mm ID x 23.81mm W

BEARING, hub inner cone

1шт.

21

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

BEARING, hub inner cup

1шт.

22

G57452

ROLLER BEARING

BEARING, hub outer cone

1шт.

23

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Hub outer

1шт.

24

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

chopper dr. shaft oil

1шт.

25

181195C1

SHAFT

chopper dr.

1шт.

26963R1

NUT,7/8"-14, G8

NUT, 7/8-NF slt type 8

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

26070R1

WASHER,15/16" x 1 3/4" x .179", HDN

.938 x 1.750 x .179 hdn

1шт.

26297R1

WASHER,1 3/16" x 2 1/4" x .134", HDN

1.188 x 2.250 x .134 phc hdn

1шт.

26

271253

NUT

bearing lock

1шт.

27

181268C1

BEARING WASHER,1.193" ID x 1.95" OD

WASHER, drive shaft bearing lock

1шт.

28

181156C1

SPACER

drive shaft

2шт.

29

181081C1

PULLEY

chopper drive, 12 in. OD

1шт.

30

181281C1

COVER

ASSY, chopper drive case

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

31

115224

ADAPTER

3/4 to 3/8 znp out/h/hd pipe

1шт.

32

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

FITTING, 3/8ptf short w/felt washer lub

1шт.

33

188814C1

BEVEL GEAR

GEAR SET, consists of gear, 24T (NSS), gear 23T (NSS)

1шт.
